Intermediate sleeve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2016
Grant Date -
Nov 8, 2007
app pub date -
May 7, 2007
filing date -
May 8, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

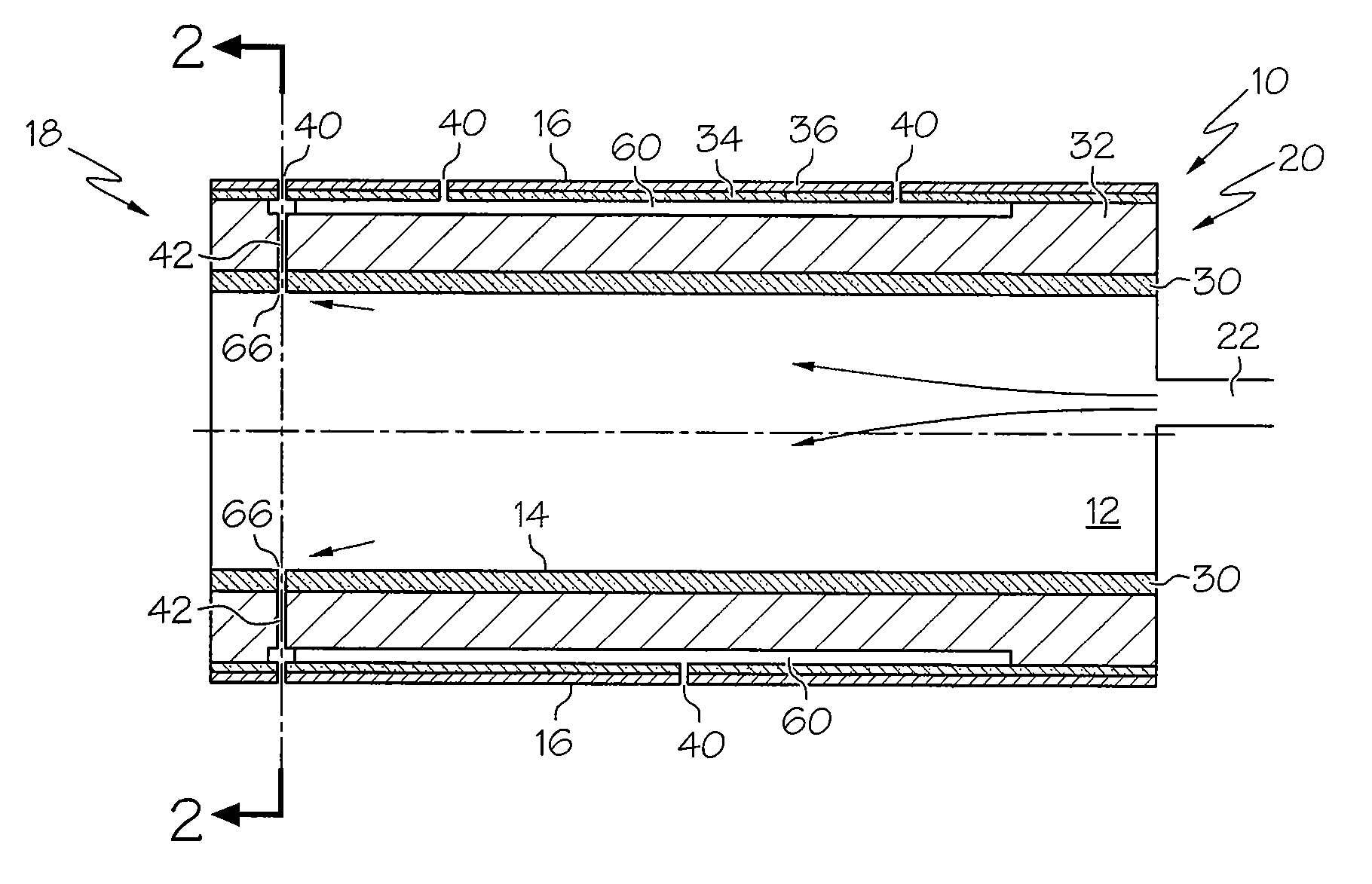

An intermediate sleeve is provided which is adapted to be mounted on a print cylinder. The intermediate sleeve includes a base layer, a reinforcing layer, a barrier layer, and a surface layer. The sleeve further includes at least one air channel extending longitudinally, circumferentially, or spirally along the interior of the sleeve, at least one air passageway extending from an inner surface of the sleeve into the air channel, and a plurality of orifices extending radially outward from the air channel to an outer surface of the sleeve. The air channel, air passageway, and orifices are in communication such that pressurized air can be supplied from the interior of the print cylinder to the outer surface of the sleeve for mounting a printing sleeve on the intermediate sleeve.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2007 Application Filing Year
- B41N Class
- 29 Applications Filed
- 10 Patents Issued To-Date
- 34.49 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41N Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 9, 2028 |
