Fuel injection valve damping insulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2016
Grant Date -
Feb 20, 2014
app pub date -
Apr 25, 2012
filing date -
Apr 27, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

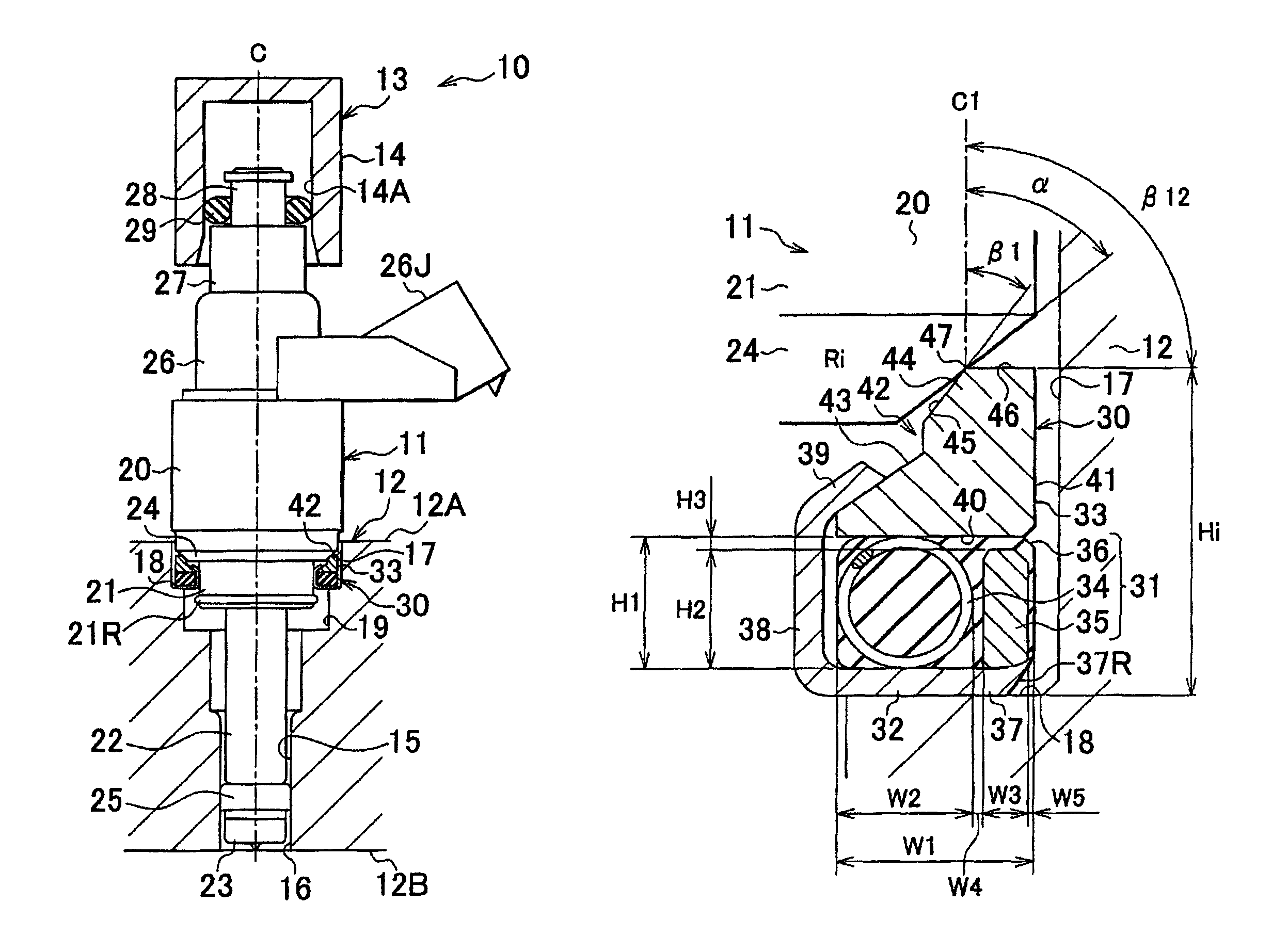

A fuel injection valve damping insulator damps vibration produced in a fuel injection valve (11). A damping insulator (30) is interposed between a shoulder portion (18) of a cylinder head and a tapered surface (24) of the fuel injection valve (11) that faces the shoulder portion. The damping insulator (30) includes an annular tolerance ring (33) that abuts against the tapered surface (24), and an elastic member (36) that is arranged between the tolerance ring (33) and the shoulder portion (18). An annular coil spring (34) and a sleeve (35) are each embedded juxtaposed in the elastic member (36). A height (H2) of the sleeve (35) is formed lower than an outer diameter (H1) of individual small ring portions that form a helix of the coil spring (34), and at least one of a tolerance ring (33) side and a shoulder portion (18) side of the sleeve (35) is buried in the elastic member (36).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F02M Class
- 1020 Applications Filed
- 873 Patents Issued To-Date
- 85.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02M Class
- 14.53 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2028 |
