Rip fence mechanism for sawing machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2016
Grant Date -
Aug 18, 2011
app pub date -
May 7, 2010
filing date -
Feb 12, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

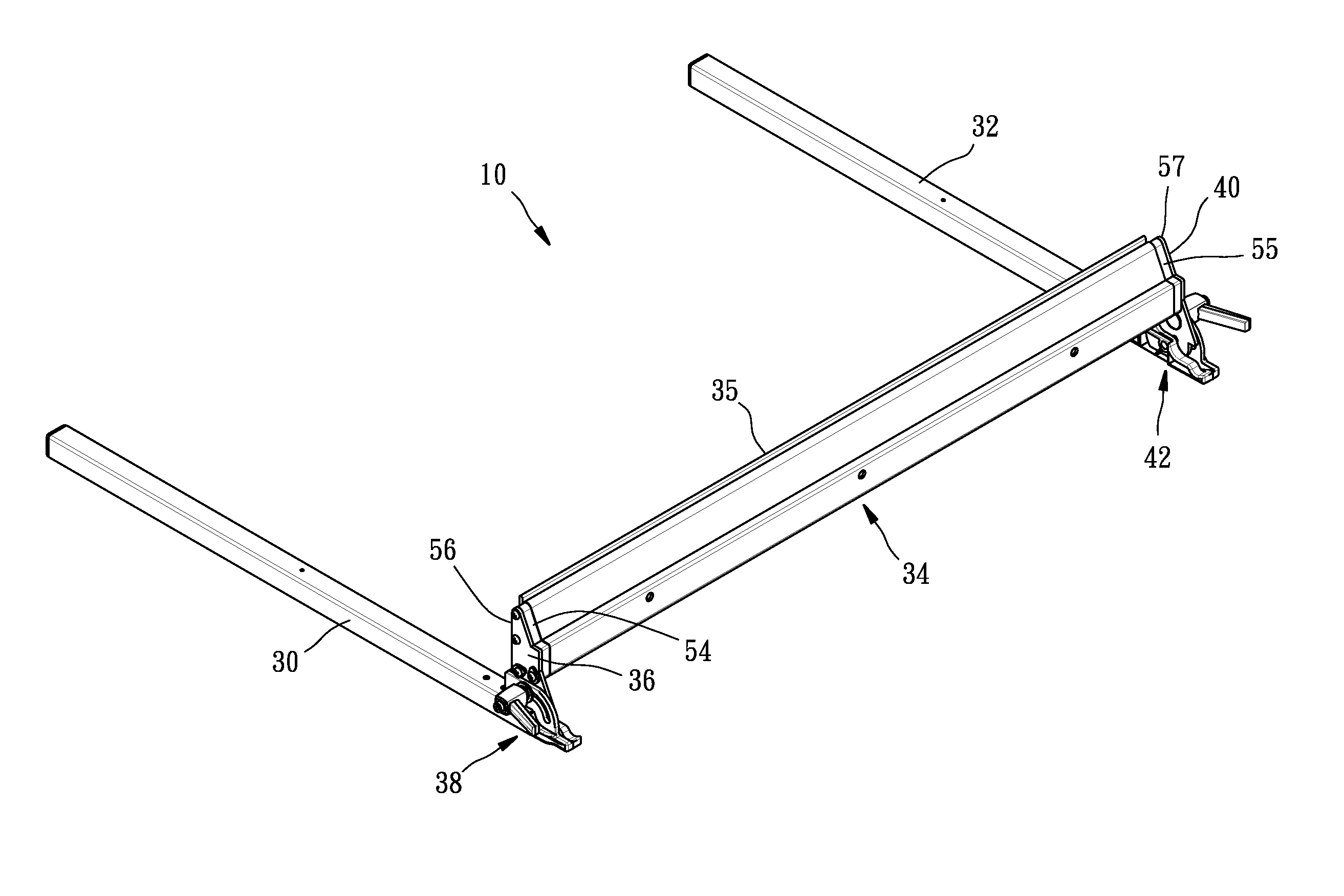

A rip fence mechanism for being slidably connected to a worktable of a sawing machine includes parallel and spacedly arranged first and second rails, a fence plate pivotally connected between the first rail and the second rail in a way that the fence plate is pivotable between a vertical posture and a horizontal posture, and a support plate pivotally connected with the fence plate in a way that the support plate is pivotable between a first position where the support plate is abutted with the fence plate and a second position where the support plate is vertical to the fence plate. As a result, the lateral side of a to-be-cut workpiece can be directly stopped at the fence plate at the vertical posture and a bottom of the workpiece can be supported by the support plate at the second position during cutting.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B23Q Class
- 438 Applications Filed
- 246 Patents Issued To-Date
- 56.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B23Q Class
- 20.59 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2028 |
