Baseplate assembly for use with toy pieces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2016
Grant Date -
Aug 22, 2013
app pub date -
Feb 6, 2013
filing date -
Feb 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

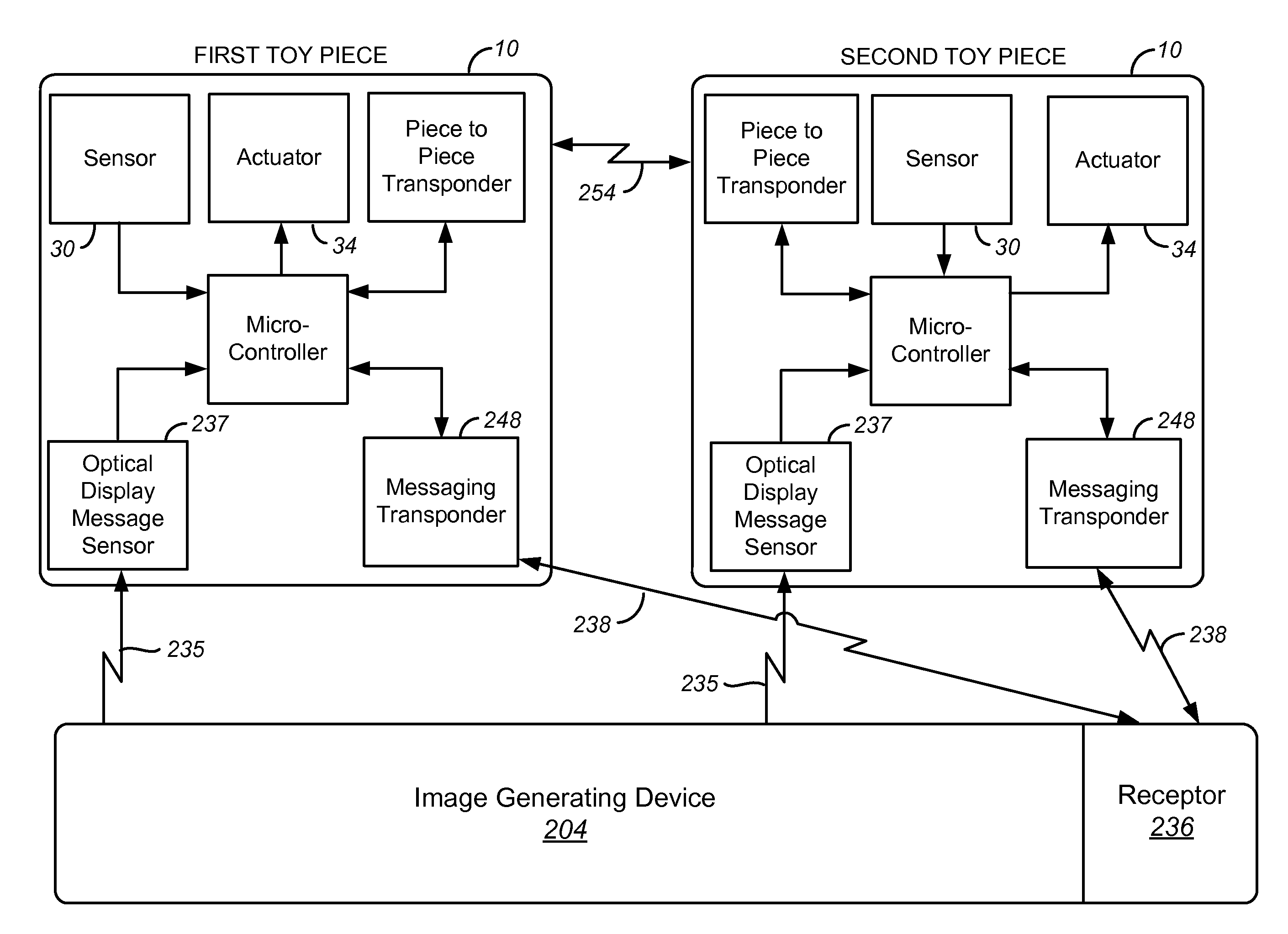

A baseplate assembly, used with releasably coupleable playing pieces, includes a baseplate operably coupled to an image generating device. The baseplate includes a display region, having playing pieces coupling elements, and means for transmitting images generated by the image generating device to the display region. An image generating and playing-piece-interacting assembly includes a receptor operably coupled to an image generating device, having a display screen for generated images, including integrated visual and optically encoded message images, a playing piece at a location relative to the display screen having an optical display message sensor, and a messaging transponder. The optical display message sensor receives the generated images and generates a first signal at least partially based upon the optically encoded message image. The messaging transponder receives the first signal and generates and sends the receptor a second signal at least partially based thereon.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- A63H Class
- 306 Applications Filed
- 281 Patents Issued To-Date
- 91.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A63H Class
- 20.86 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2028 |
