Automatic rise jack stand
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 26, 2016
Grant Date -
Oct 29, 2015
app pub date -
Jul 15, 2014
filing date -
Apr 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

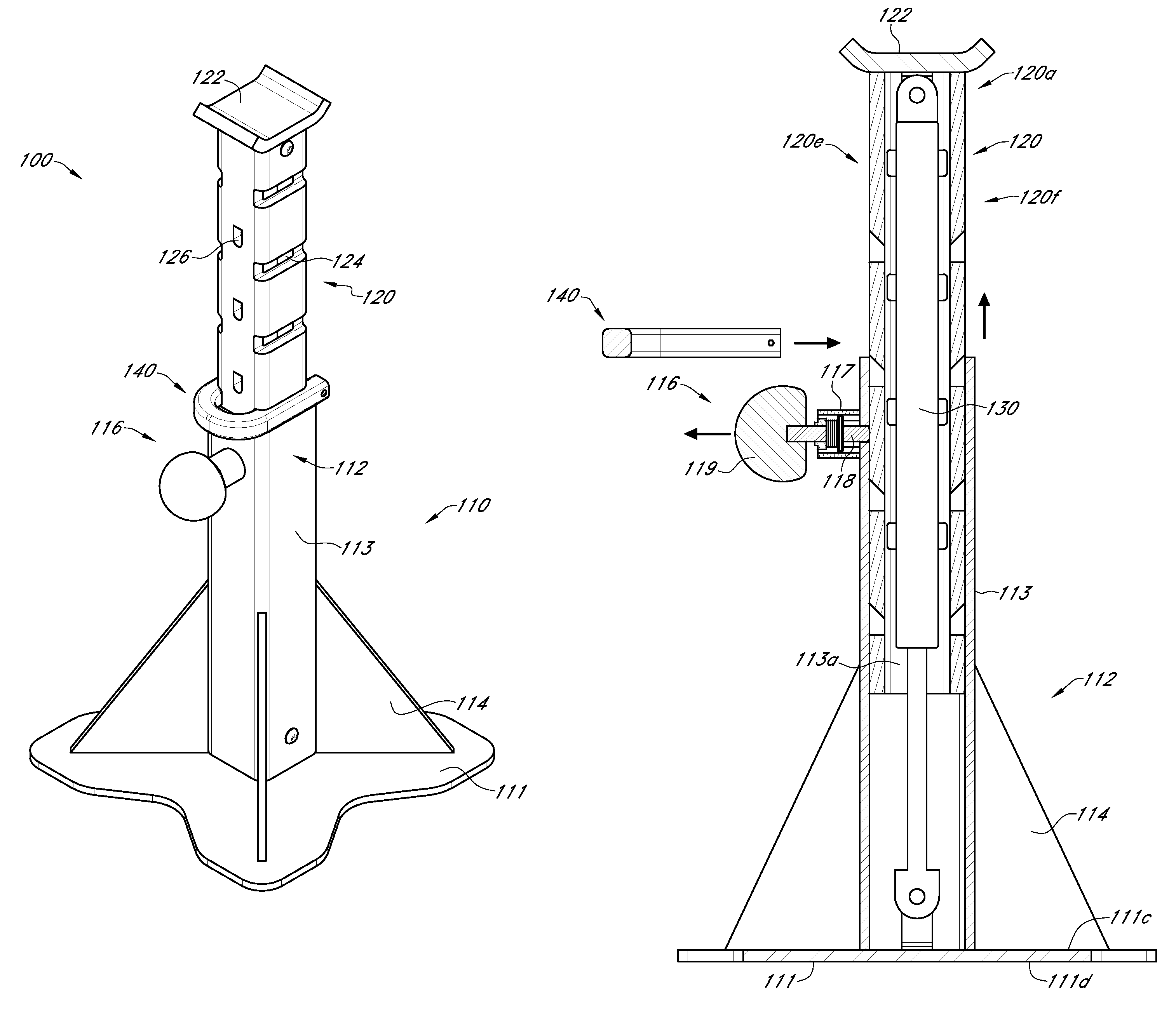

One jack stand includes a stand assembly having a base and a tubular receiving member extending upwardly therefrom. A latch extends from the tubular member. A support bar having upper and lower ends is telescopically housed in a cavity of the tubular member. First and second sides of the bar each have multiple embedded slots. A third side of the bar has multiple holes with angled surfaces such that positioning the latch in any of the holes restricts the bar from moving upwardly yet allows the bar to move downwardly. An automatic lifting device is at least partially inside the cavity and imparts an upward force upon the bar. A stopper selectively interacts with the stand assembly and the bar to restrict the bar from moving downwardly, yet allows the bar to move upwardly. The stopper passes at least partially inside two of the slots to interact with the bar.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16M Class
- 918 Applications Filed
- 673 Patents Issued To-Date
- 73.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16M Class
- 15.36 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 26, 2028 |
