High-frequency bandwidth amplifying circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 19, 2016
Grant Date -
Jun 26, 2014
app pub date -
Oct 24, 2013
filing date -
Oct 24, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

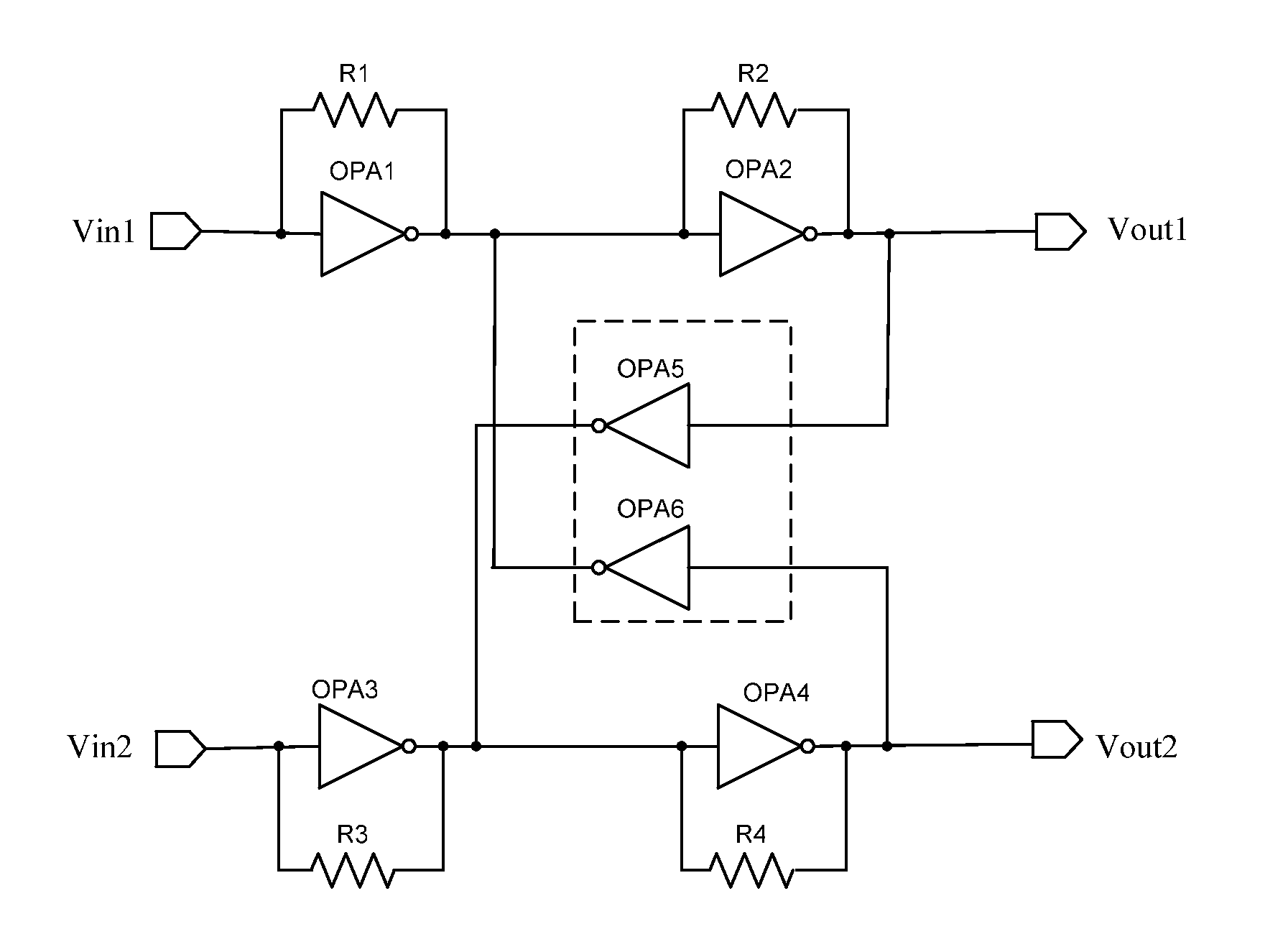

A high-frequency bandwidth amplifying circuit includes a forward channel and a backward channel. An input terminal of the forward channel and an external forward input terminal are connected; an output terminal of the forward channel and a forward output port are connected. An input terminal of the backward channel and an external backward input terminal are connected; an output terminal of the backward channel and a backward output port are connected. The high-frequency bandwidth amplifying circuit further includes a feedback network. The forward channel includes a first operational amplifier and a second operational amplifier. An input terminal of the first operational amplifier is connected to the external forward input terminal; an output terminal of the first operational amplifier is connected to an input terminal of the second operational amplifier; and an output terminal of the second operational amplifier is connected to the forward output port.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H03F Class
- 934 Applications Filed
- 866 Patents Issued To-Date
- 92.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03F Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 19, 2028 |
