Energy absorption management for marine barrier and gate systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 19, 2016
Grant Date -
Jun 4, 2015
app pub date -
Nov 26, 2014
filing date -
Nov 26, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

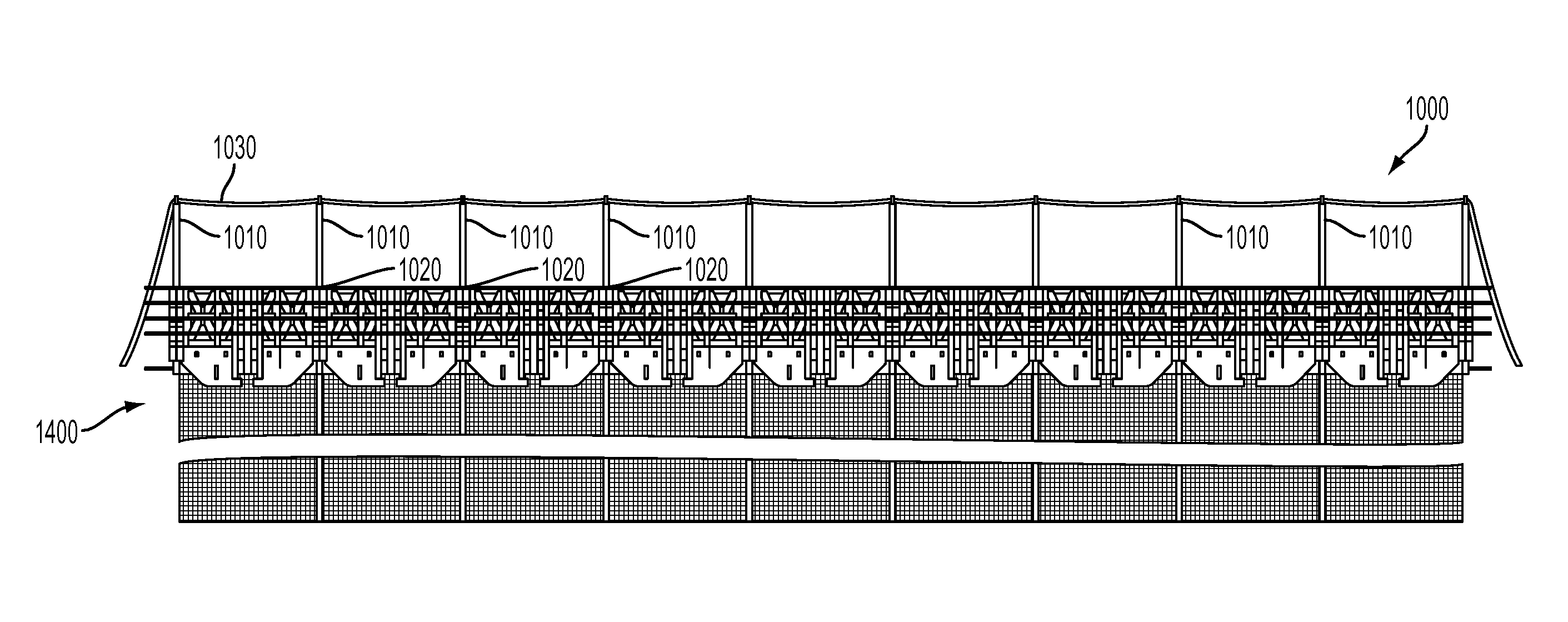

A marine barrier has buoyant panels elastically connected with an included angle therebetween, to form a pleated row of panels with hinges arranged in first and second rows. An impact net having cables is attached to a net connection portion of each hinge in the first row. The net connection portions are attachable to the cables with a tension such that, when the barrier is floating and a moving vessel impacts the net, an impact force causes the cables to move relative to the net connection portions, transferring a portion of the force of the impact to the net connection portions, until cable stops on the cable ends engage net connection portions adjacent the cable stops. The force of the impact is then transferred to the panels, which engage the water to transfer the force of the impact to the water, to arrest the motion of the vessel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F41H Class
- 264 Applications Filed
- 218 Patents Issued To-Date
- 82.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F41H Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 19, 2028 |
