Feeder for flat objects, particularly supplement feeder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 19, 2016
Grant Date -
Dec 25, 2014
app pub date -
Jun 18, 2014
filing date -
Jun 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

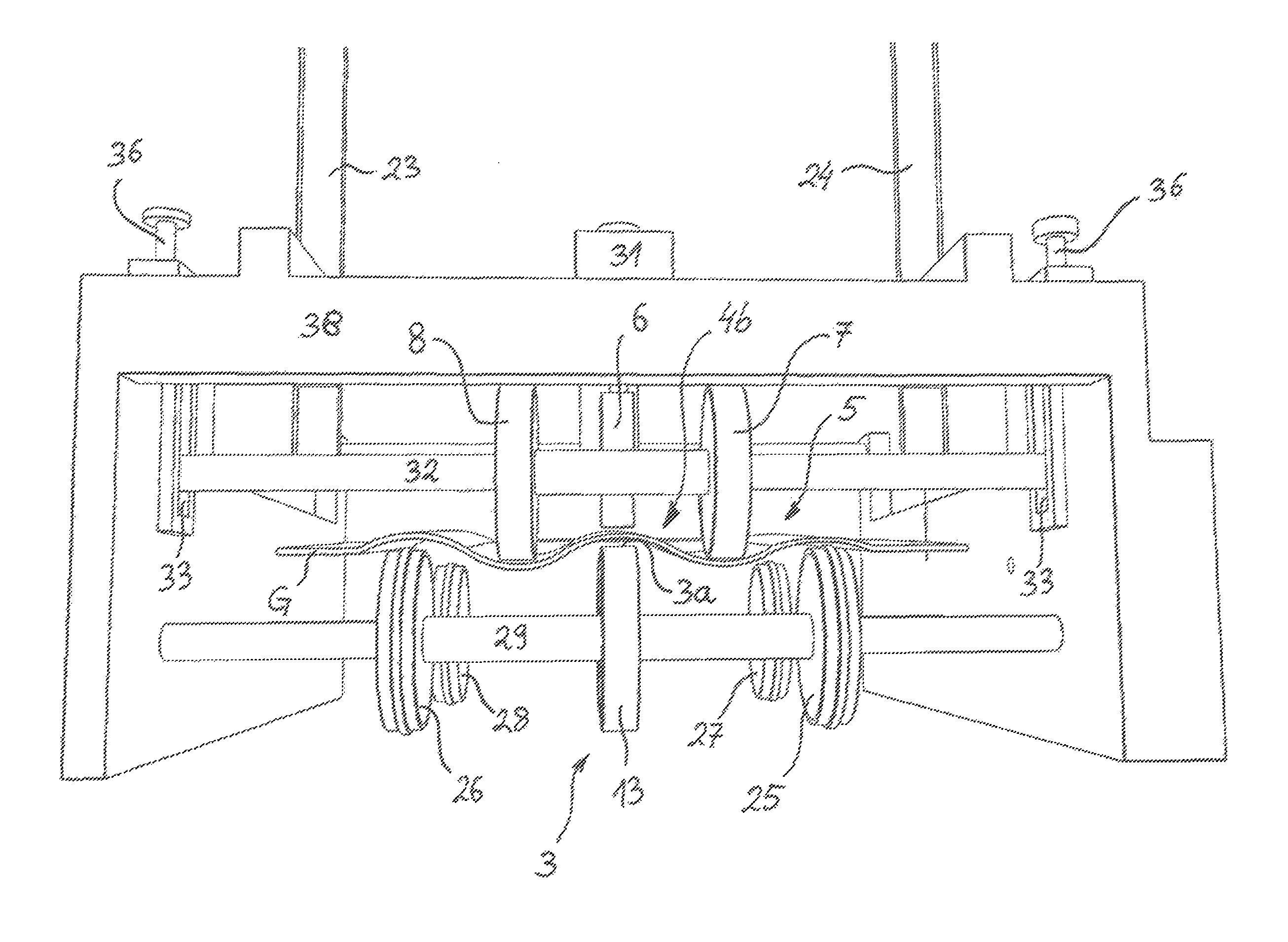

Abstract
A feeder for flat objects, particularly a supplement feeder for supplements, having a stack compartment for receiving objects in the form of a stack and a takeoff device for taking individual objects off the stack along a takeoff direction, wherein the takeoff device includes a conveying element and a gate, through which the objects taken off the stack are led individually by the conveying element. In order to be able to process different objects with properties differing from one another, particularly objects of different type and thickness, with the feeder in continuous operation without problems and without congestion and to provide a feeder for different objects that is as flexible as possible and that is capable of processing both thick and thin objects without lasting deformations while largely avoiding takeoff errors, the gate has a first gate device and a second gate device. Thereby an object taken off the stack can be brought into engagement either with the first gate device or with the second gate device and led through the gate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B65G Class
- 1383 Applications Filed
- 1168 Patents Issued To-Date
- 84.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65G Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 19, 2028 |
