Maintaining a fixed distance by providing an air cushion during coating of a medical device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 19, 2016
Grant Date -
Apr 24, 2014
app pub date -
Jan 2, 2014
filing date -
Jun 10, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|

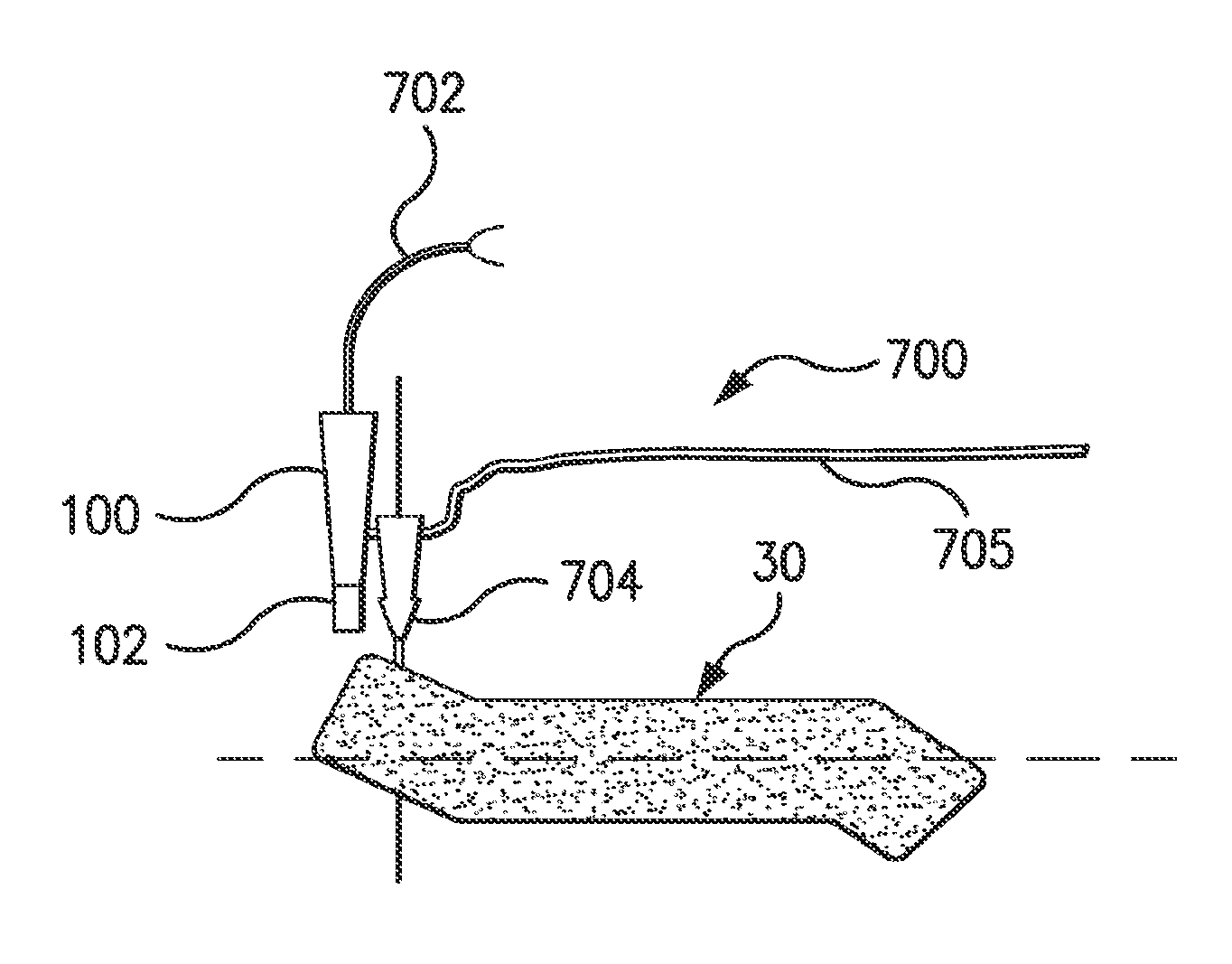

Abstract
System and method for coating an expandable member of a medical device comprising a support structure to support the expandable member and an applicator positioned with at least one outlet proximate a surface of an expandable member. A drive assembly establishes relative movement between the at least one outlet and the surface of the expandable member to apply fluid on the surface of the expandable member along a coating path. A positioning device maintains a substantially fixed distance between the at least one outlet and the surface of the expandable member during relative movement therebetween by ejecting a pressurized medium against the surface of the expandable member.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US8647702 | Jun 10, 2011 |
International Classification(s)
- 2014 Application Filing Year
- B05C Class
- 528 Applications Filed
- 444 Patents Issued To-Date
- 84.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 19, 2028 |
