Image forming apparatus having a mountable option device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 12, 2016
Grant Date -
Oct 1, 2015
app pub date -
Mar 19, 2015
filing date -
Mar 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

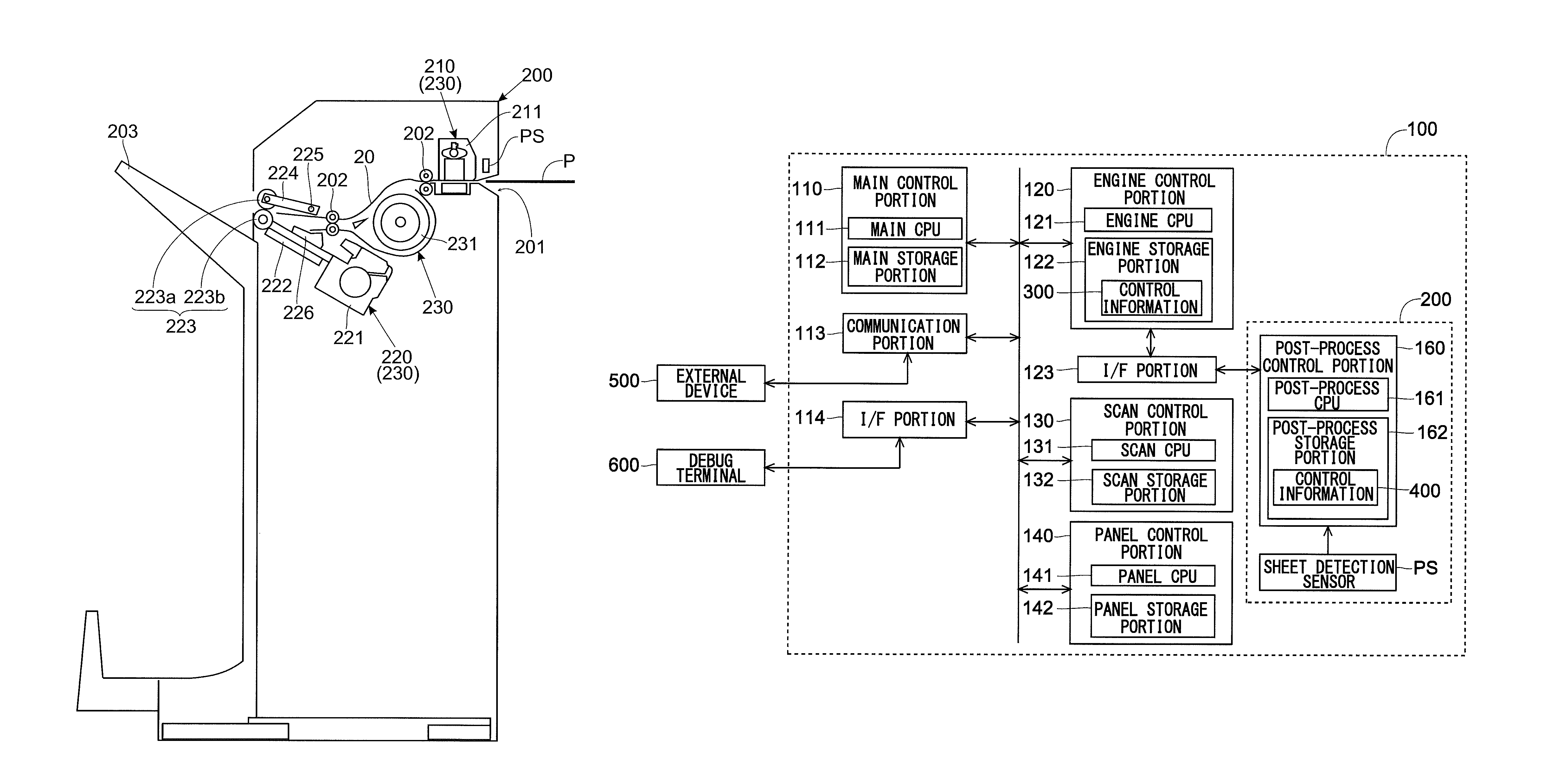

An image forming apparatus includes: a main body storage portion that stores control information which defines a control condition of an option device; and a main body control portion that makes a printing portion perform operation in accordance with the control condition of the option device, and based on the control condition of the option device, gives an operation instruction to an option control portion, wherein in a case where an unsuitableness error, the option control portion transmits the control information stored in the option storage portion to the main body control portion, and the main body control portion updates the control information such that the control information stored in the main body storage portion becomes the control information suitable for specifications of the option device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6264138 | Mar 26, 2014 |
| CN | B | CN104954608 | Mar 20, 2015 |
International Classification(s)
- 2015 Application Filing Year
- H04N Class
- 17427 Applications Filed
- 14242 Patents Issued To-Date
- 81.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 12, 2028 |
