Composite conductive cable comprising nanotubes and nanofibers, coaxial microstructure including a copper matrix and said nanotubes and nanofibers, and method for manufacturing said microstructure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 12, 2016
Grant Date -
Dec 5, 2013
app pub date -
Dec 9, 2011
filing date -
Dec 13, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

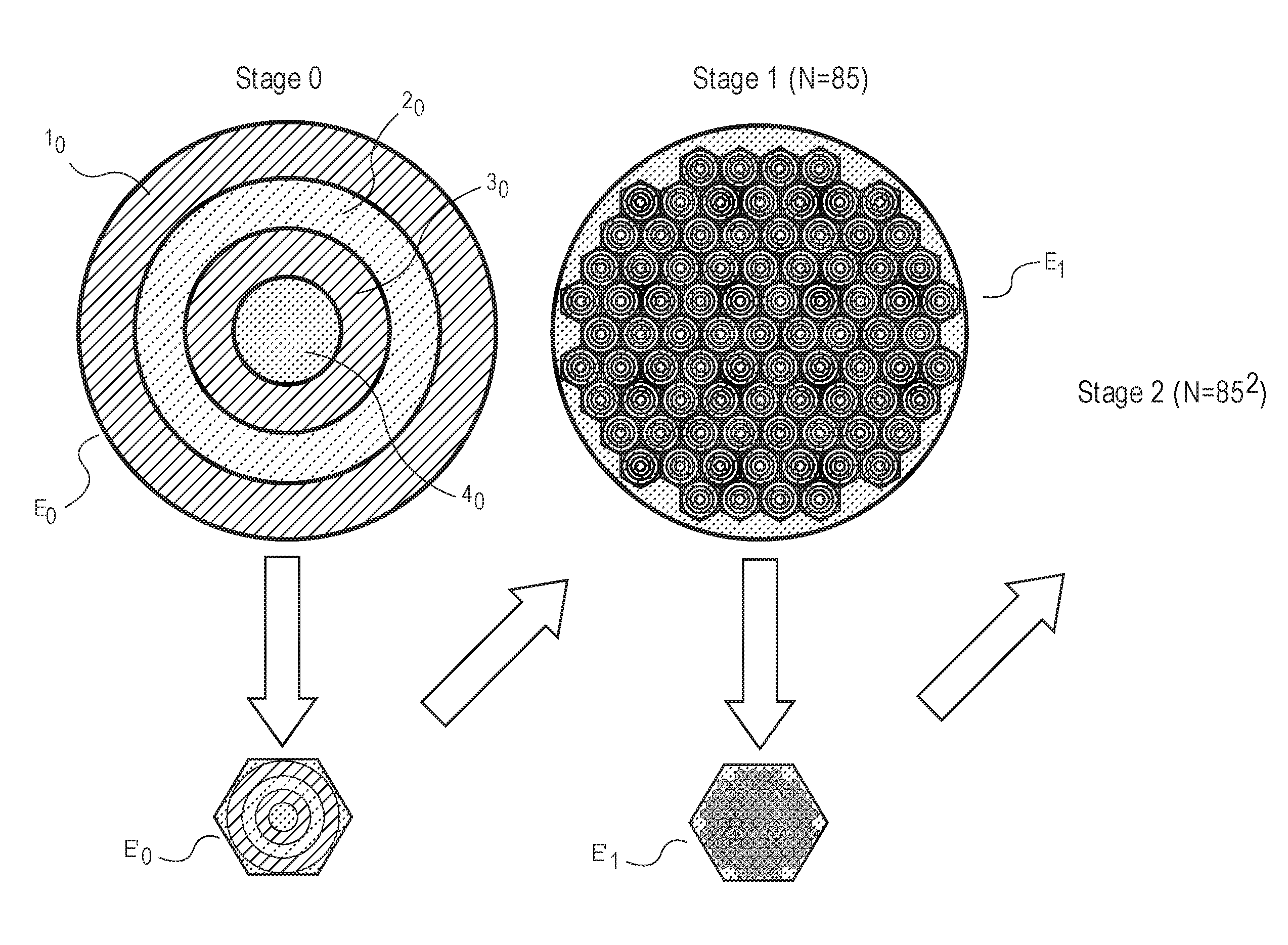

A conductive composite wire includes at least one external jacket made of copper, a first tube including a first metallic material (M1) contacting and located inside the copper jacket; a second tube including a second metallic material (M2) contacting and located inside the first tube; and a fiber including a third metallic material (M3) contacting and located inside the second tube. The copper and the first metallic material are immiscible with each other, the first and second metallic materials are immiscible with each other, and the second and third metallic materials are immiscible with each other. A copper-based coaxial microstructure includes a copper sheath containing an array of nanotubes and nanofibers according to a process for manufacturing the microstructure.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01L Class
- 13.47 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 12, 2028 |
