High signal to noise ratio capacitive sensing analog front-end
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 12, 2016
Grant Date -
Mar 20, 2014
app pub date -
Dec 18, 2012
filing date -
Sep 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

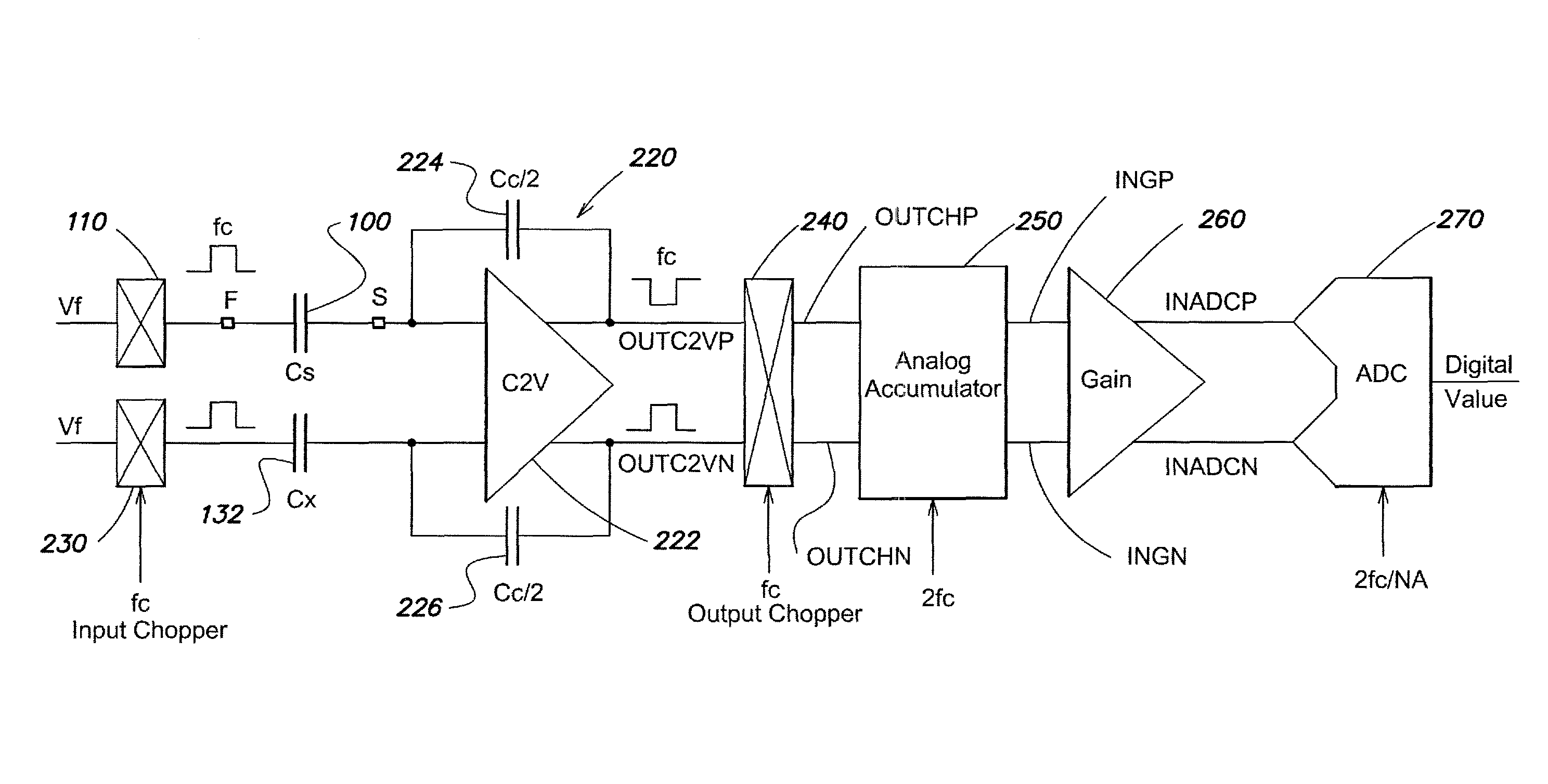

Capacitance sensing circuits and methods are provided. The capacitance sensing circuit includes a capacitance-to-voltage converter configured to receive a signal from a capacitance to be sensed and to provide an output signal representative of the capacitance, an output chopper configured to convert the output signal of the capacitance-to-voltage converter to a sensed voltage representative of the capacitance to be sensed, an analog accumulator configured to accumulate sensed voltages during an accumulation period of NA sensing cycles and to provide an accumulated analog value, an amplifier configured to amplify the accumulated analog value, and an analog-to-digital converter configured to convert the amplified accumulated analog value to a digital value representative of the capacitance to be sensed. The analog accumulator may include a low pass filter having a frequency response to filter wideband noise.
