Plant for producing cement with central grinding unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 12, 2016
Grant Date -
Oct 24, 2013
app pub date -
Jan 4, 2012
filing date -
Jan 12, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

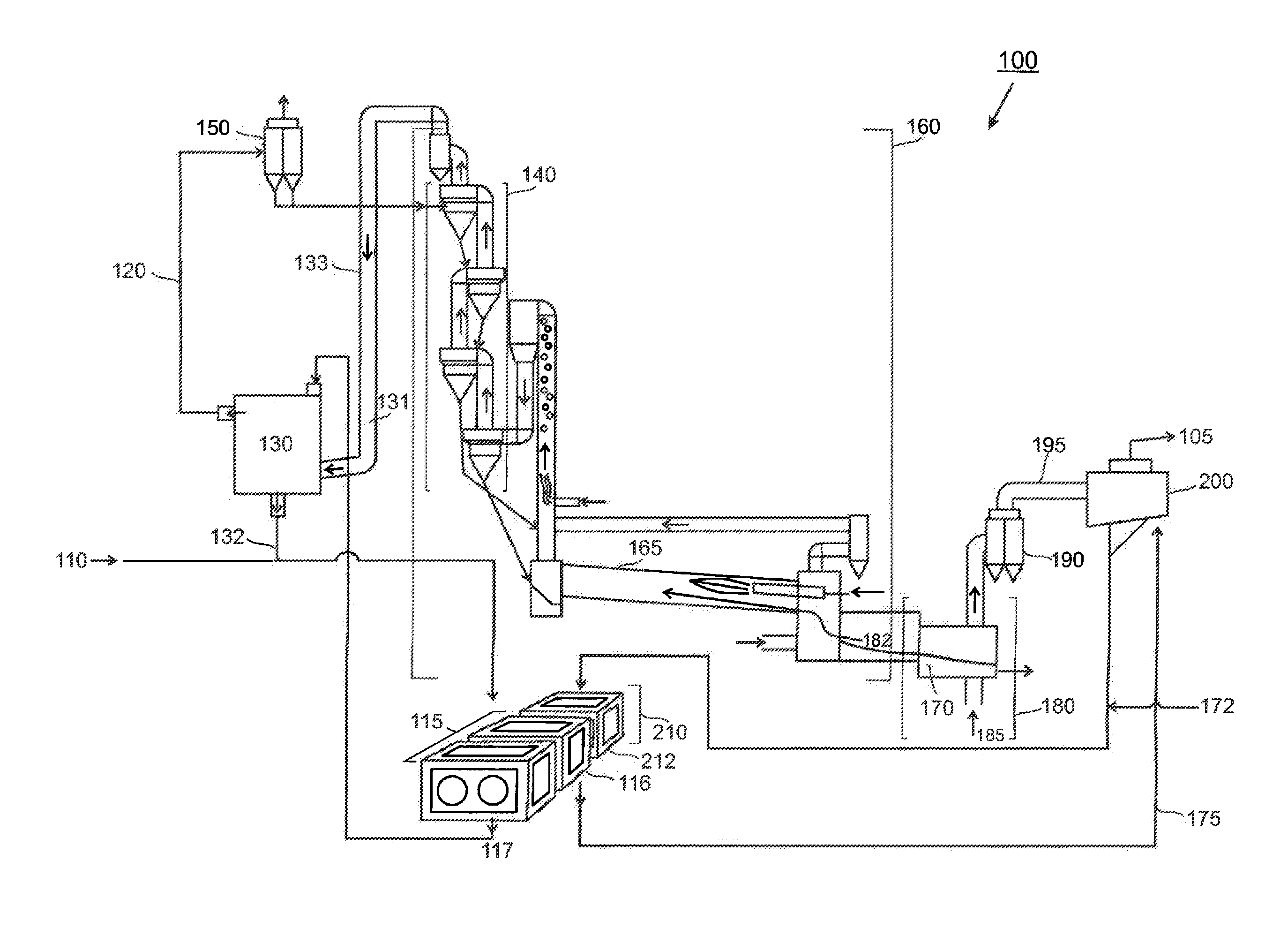

A plant for producing cement, having a first stage for crushing raw material to form raw powder, a second stage for calcination and sintering of the raw powder to form cement clinker, a third stage for cooling the sintered cement clinker, and a fourth stage for crushing the sintered cement clinker to form cement. The first stage for crushing raw material to form raw powder and the fourth stage for crushing the sintered cement clinker to form cement are structurally combined. In this way, during servicing or repair of one crushing stage, the plant need not be shut down because, y variable circuitry switching, the crushing stages permit plant operation with reduced production output.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B02C Class
- 384 Applications Filed
- 311 Patents Issued To-Date
- 80.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B02C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 12, 2028 |
