Drive system and method for forming a transportable container for bulk goods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 12, 2016
Grant Date -
Apr 11, 2013
app pub date -
Oct 10, 2012
filing date -
Oct 10, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

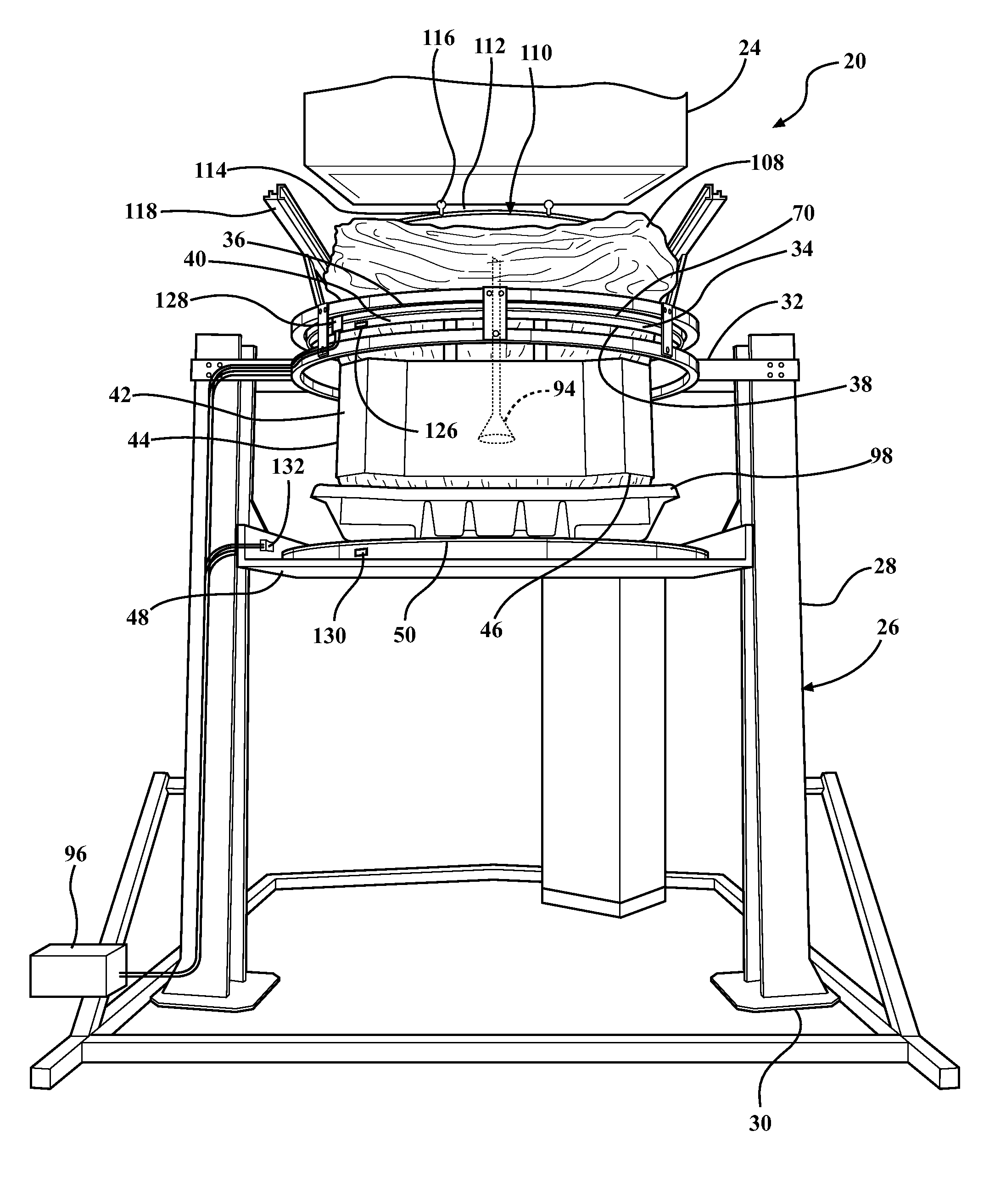

A packaging system (20) for forming and filling a transportable container (22) of plurality of bulk goods includes a frame (26) having a bottom support (48) and an upper support (32). An upper turntable (34) is rotatably supported within the upper support (32) and a lower turntable (50) is rotatably supported on the bottom support (48). A drive system (58) includes at least one pulley system (62, 64, 66) interconnected to the upper and lower turntables (34, 50) for simultaneously driving and synchronizing rotation of the upper and lower turntables (34, 50) with the at least one pulley system (62, 64, 66). A slip frame former (42) extends downwardly from the upper turntable (34) and a roll of stretch wrap (92) is disposed in overlapping relationship with the slip frame former (42) and the bottom support (48) during simultaneous and synchronized rotation of the turntables (34, 50) with the at least one pulley system (62, 64, 66).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B65B Class
- 1148 Applications Filed
- 754 Patents Issued To-Date
- 65.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 12, 2028 |
