Apparatus, system, and method for forming nanofibers and nanofiber webs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 5, 2016
Issued Date -
N/A
app pub date -
Aug 30, 2010
filing date -
Sep 1, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

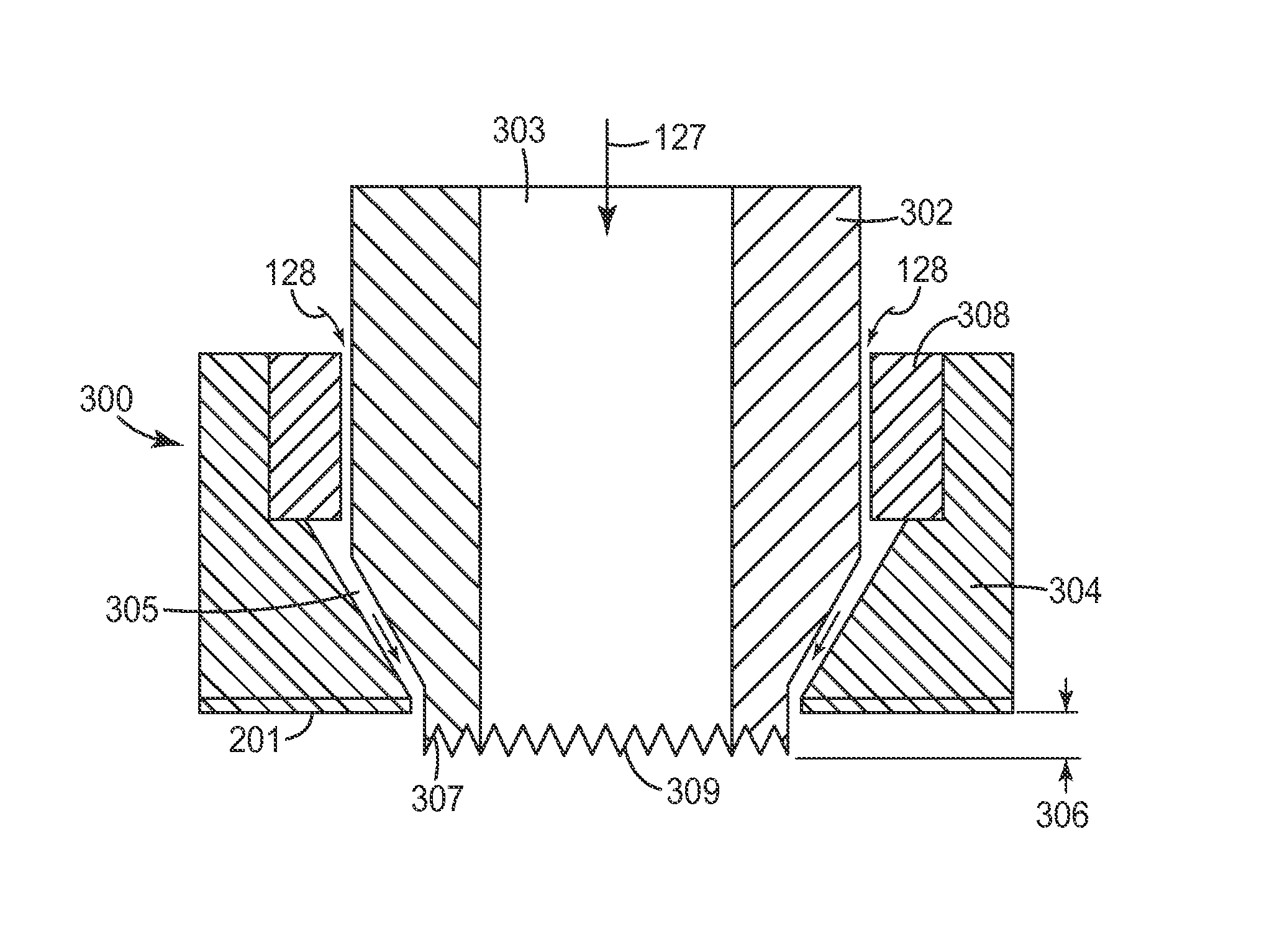

A nozzle, die, apparatus, system and method for forming a fiber population having a median diameter less than one micrometer, and nonwoven fibrous webs including a population of such sub-micrometer fibers. The nozzle includes a first conduit having a first terminal end, a second conduit positioned coaxially around the first conduit and having a second terminal end proximate the first terminal end, wherein the first and second conduit form an annular channel between the first and second conduit, and additionally wherein the first terminal end extends axially outwardly beyond the second terminal end. The die includes at least one such nozzle, and the apparatus and system include at least one such die. Methods of making nonwoven fibrous webs including a population of sub-micrometer fibers, and articles including such nonwoven fibrous webs, are also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- D01D Class
- 127 Applications Filed
- 104 Patents Issued To-Date
- 81.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- D01D Class
- 33.33 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 5, 2028 |
