Spring loaded rechargeable battery assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 28, 2016
Grant Date -
Aug 7, 2014
app pub date -
Sep 3, 2013
filing date -
Feb 5, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

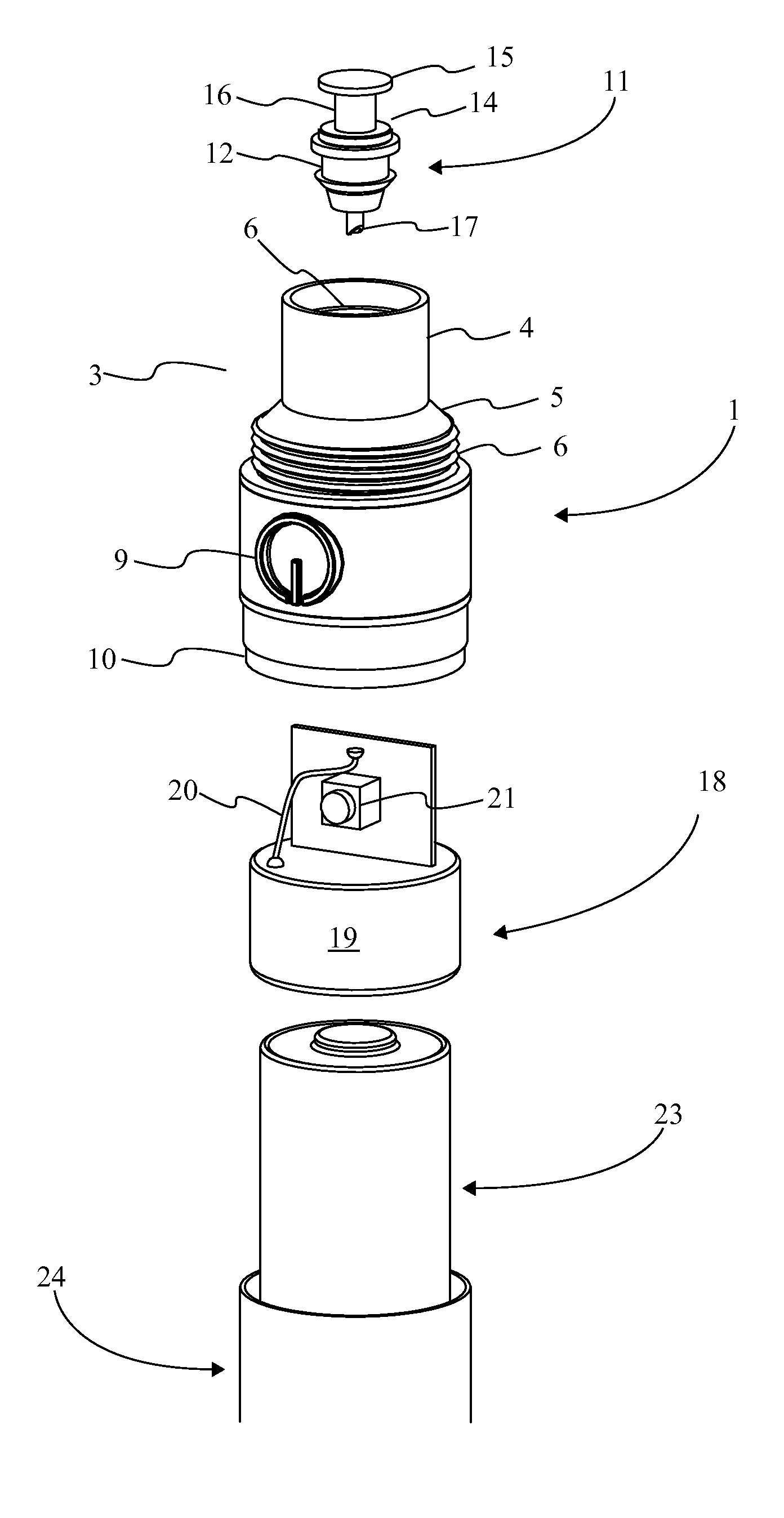

A spring loaded rechargeable battery assembly is an apparatus that incorporates a particularly designed attachment mount in order to electrically engage a plurality of electronic cigarette/vaporizer components as part of a modular system. The apparatus utilizes an upper housing assembly, a retractable contact assembly, a battery control unit, a battery cell, a housing sleeve, and a lower housing assembly in order to function properly. Through the configuration of the upper housing assembly and the retractable contact plate, the spring loaded rechargeable battery assembly is able to form a preconfigured attachment mount that accommodates various fastener types but additionally includes an elastic pin system that engages vaporizer assembly terminals of various heights and widths.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 37 Citation Count
- H01M Class
- 97.56 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 28, 2027 |
