Method and apparatus for image sensor packaging

Number of patents in Portfolio can not be more than 2000

United States of America

PATENT NO 9379093
SERIAL NO

13457637

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

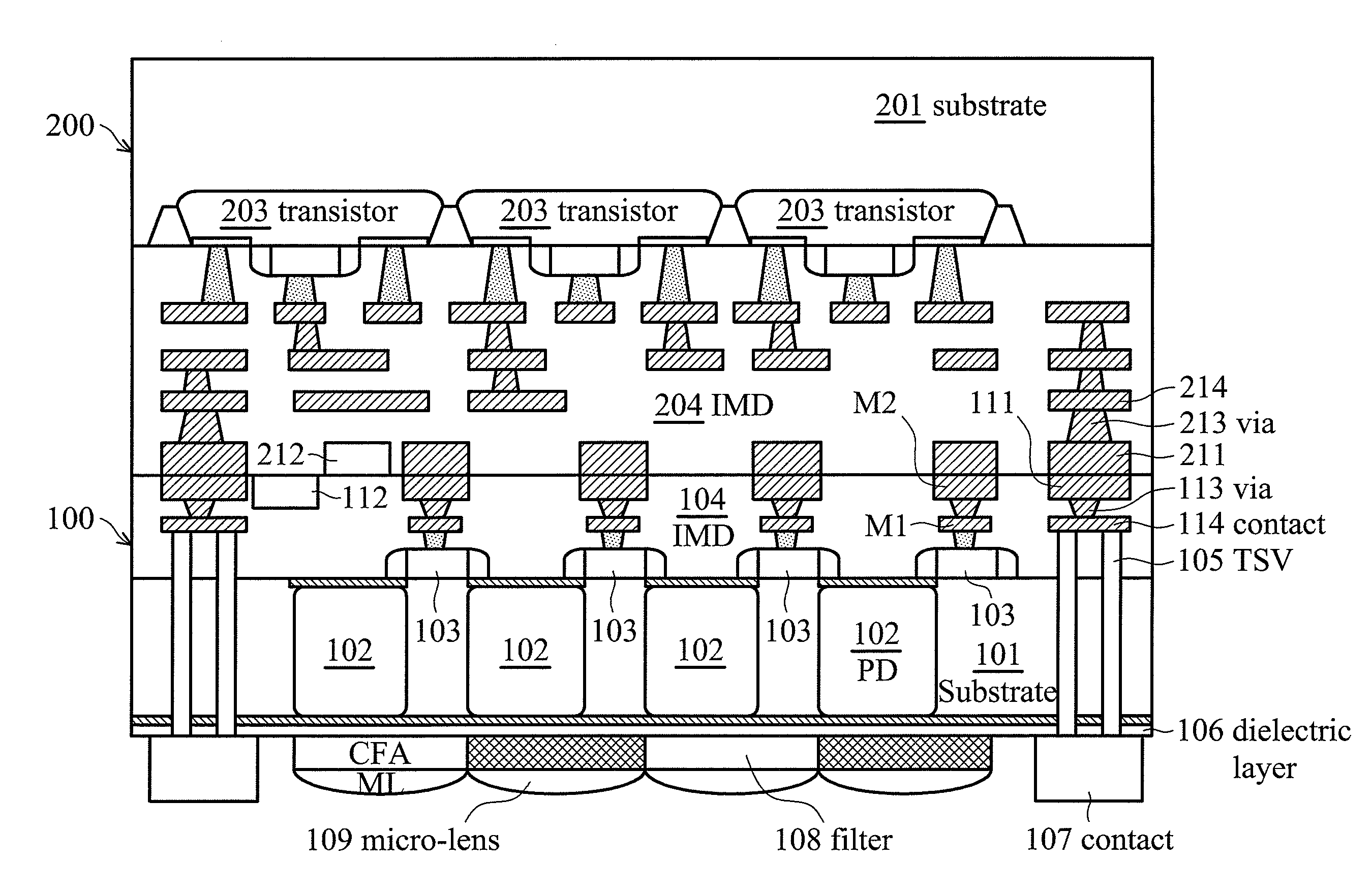

Methods and apparatus for packaging a backside illuminated (BSI) image sensor or a sensor device with an application specific integrated circuit (ASIC) are disclosed. According to an embodiment, a sensor device may be bonded together face-to-face with an ASIC without using a carrier wafer, where corresponding bond pads of the sensor are aligned with bond pads of the ASIC and bonded together, in a one-to-one fashion. A column of pixels of the sensor may share a bond bad connected by a shared inter-metal line. The bond pads may be of different sizes and configured in different rows to be disjoint from each other. Additional dummy pads may be added to increase the bonding between the sensor and the ASIC.
