Laminated piezoelectric body, laminated piezoelectric body manufacturing method, and ultrasound transducer and ultrasound diagnostic device using laminated piezoelectric body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 28, 2016
Grant Date -
Jan 17, 2013
app pub date -
Feb 23, 2011
filing date -
Mar 31, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

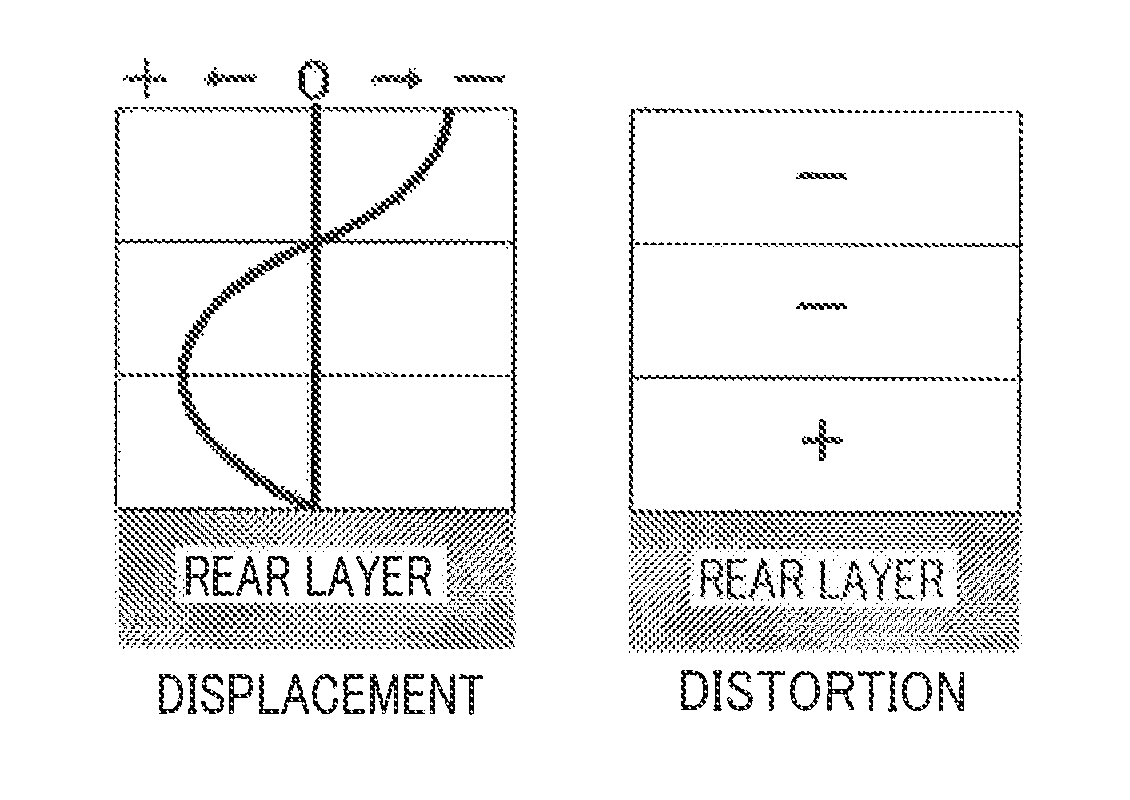

In a laminated piezoelectric body, a laminated piezoelectric body manufacturing method, an ultrasound transducer, and an ultrasound diagnostic device according to the present invention, a plurality of mutually laminated piezoelectric bodies are electrically connected in parallel to each other, and each of the plurality of piezoelectric bodies arranges an orientation of residual polarization or a crystal axis that is related to an electrical displacement or a sign of an electric field due to a direct piezoelectric effect in a direction which reduces sensitivity in a first resonance mode and increases sensitivity in a second resonance mode of a higher order than the first resonance mode with respect to an axis of a first-level piezoelectric body on a fixed end-side.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- H01L Class
- 19146 Applications Filed
- 15997 Patents Issued To-Date
- 83.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 28, 2027 |
