Mapping of control information to control channel elements
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jun 21, 2016
Issued Date -
N/A
app pub date -
Jan 22, 2015
filing date -
Jan 22, 2015
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

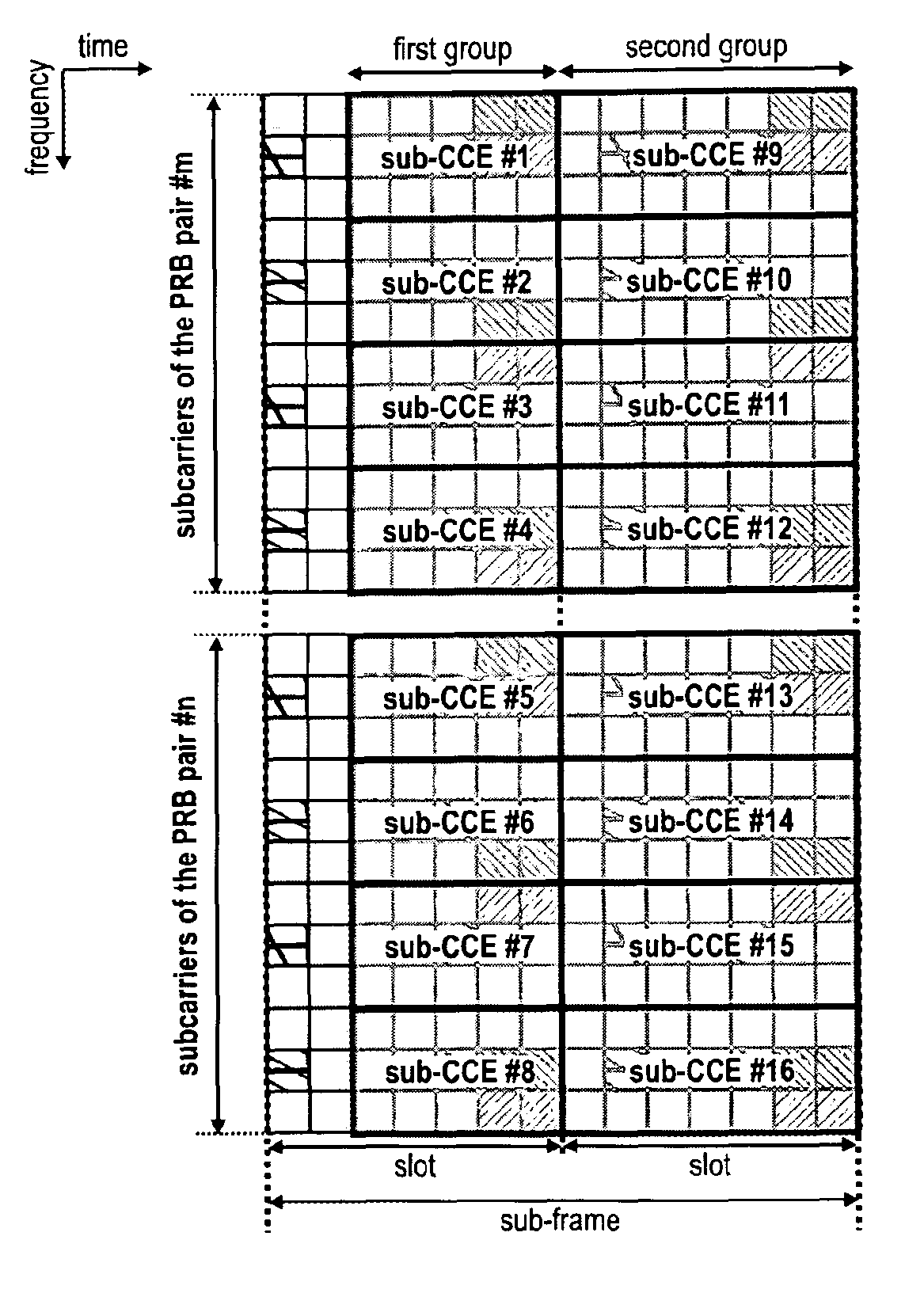

The invention relates to a new structure of a control channel region within a sub-frame of a 3GPP-based based communication system using OFDM in the downlink. This new structure of a control channel region is inter alia particularly suitable for conveying physical downlink control channel information from a donor eNodeB to a relay node. The control channel region is divided in CCEs that have equal size irrespective of the presence of further cell-specific and/or UE-specific reference signals within the control channel region. This is achieved by dividing the control channel region in plural sub-CCEs that are combined to CCEs all having equal size (in terms of resource elements that can be used for the signaling of control information). The control channel region is divided in the frequency domain and/or time domain in a FDM respectively TDM fashion in order to obtain the sub-CCEs.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 21, 2027 |
