Optical connection component manufacturing apparatus and high polymer material coat forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2016
Grant Date -
Aug 20, 2015
app pub date -
Mar 20, 2014
filing date -
Mar 20, 2014
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

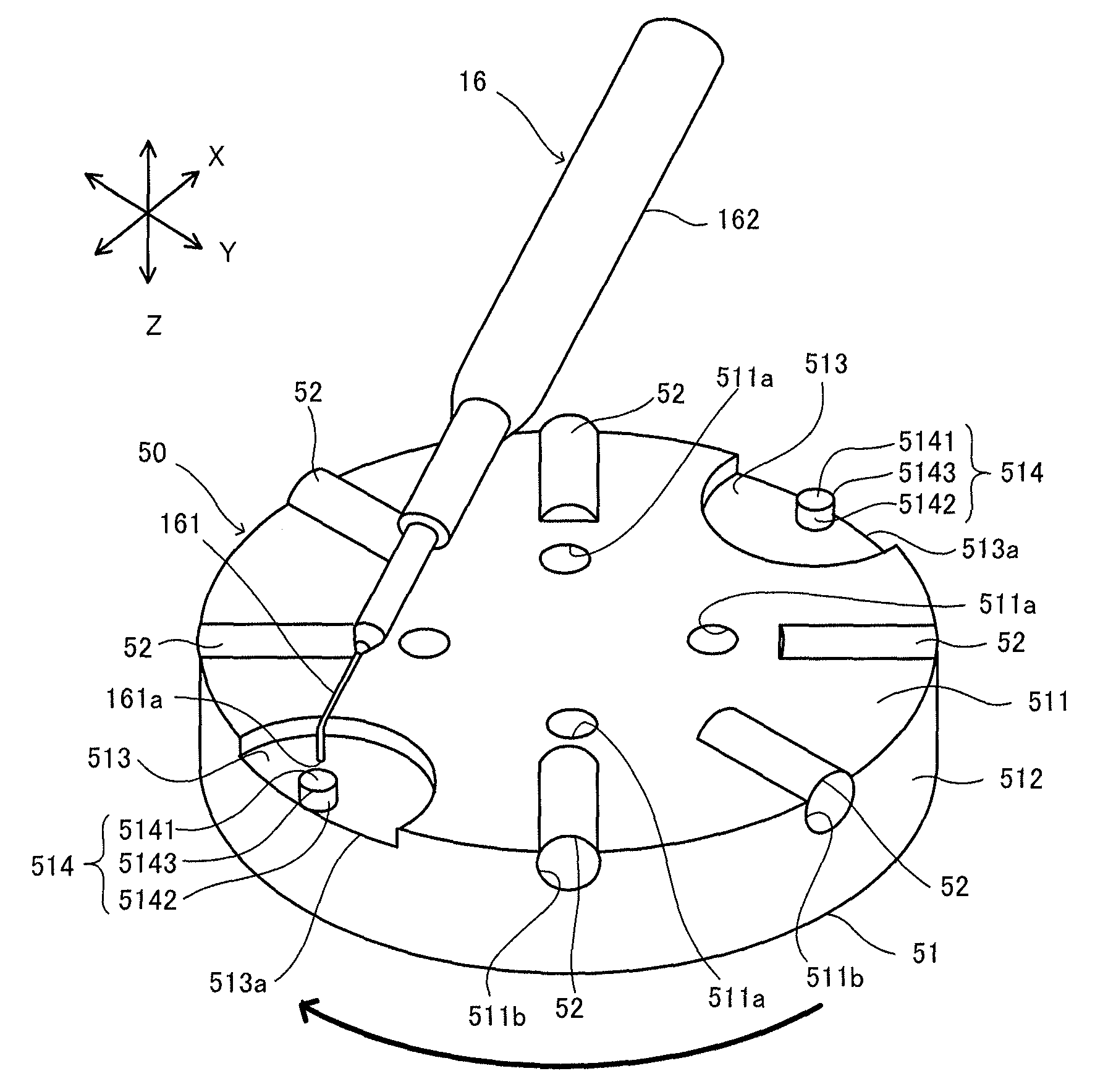

Disclosed is an optical connection component manufacturing apparatus that manufactures an optical connection component in which a refractive index matching body is attached to a front end face of an optical fiber. The optical connection component manufacturing apparatus includes: a holding unit that includes a holding face holding a refractive index matching liquid including the refractive index matching body; a dispenser that supplies the refractive index matching liquid to the holding face; and a static electricity generating device that charges the optical fiber so that the refractive index matching liquid held on the holding face is adsorbed onto the front end face of the optical fiber, wherein the holding face has an outer peripheral edge connected in a curved line.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B05B Class
- 1151 Applications Filed
- 958 Patents Issued To-Date
- 83.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 21, 2027 |
