Oil bearing material crushing process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2016
Issued Date -
N/A
app pub date -
Oct 16, 2013
filing date -
Oct 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

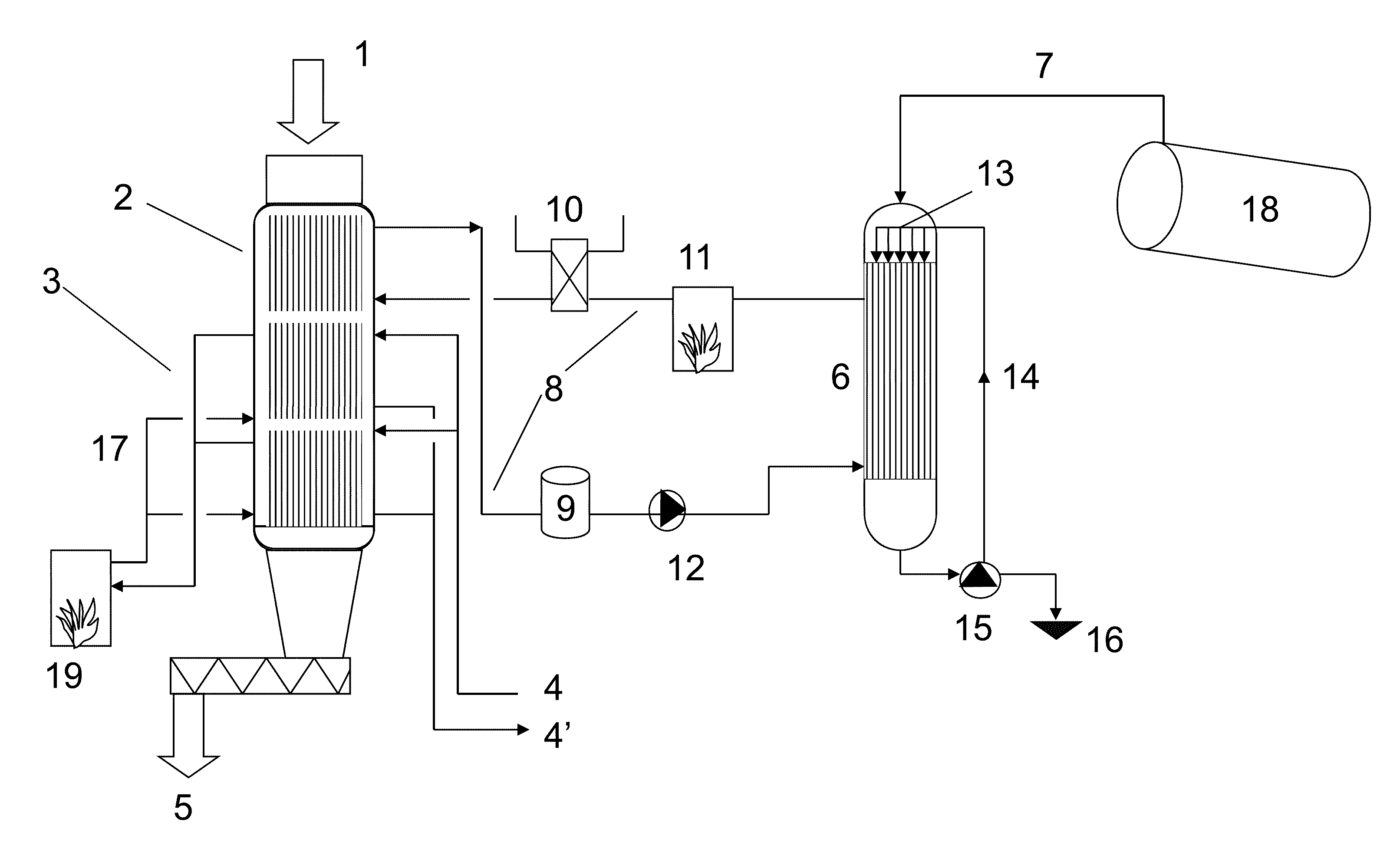

An oil bearing vegetable material crushing process including pre-heating and pre-drying the material to generate warm, partially dried oil bearing vegetable material. The partially dried material may then be surface heated rapidly, to generate warm and dried material having a weakened and non-adhering hull. The hull may then be mechanically cracked and removed to yield dehulled oil bearing vegetable material and hull. The dehulled material may be flaked to produce flakes. The flakes may be solvent extracted to generate solvent laden oil and solvent laden meal. The solvent laden meal produced may be desolventized to generate hot, wet meal. The wet meal produced may be dried to generate a hot vapor stream. The hot vapor stream generated by drying the meal is condensed in a condenser. The warm liquid medium produced in the condenser may be used to pre-heat and/or pre-dry the oil bearing vegetable material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- C11B Class
- 209 Applications Filed
- 167 Patents Issued To-Date
- 79.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C11B Class
- 32.43 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 21, 2027 |
