Pipe wrench or water pump wrench
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2016
Grant Date -
May 1, 2014
app pub date -
Jun 18, 2012
filing date -
Jun 20, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

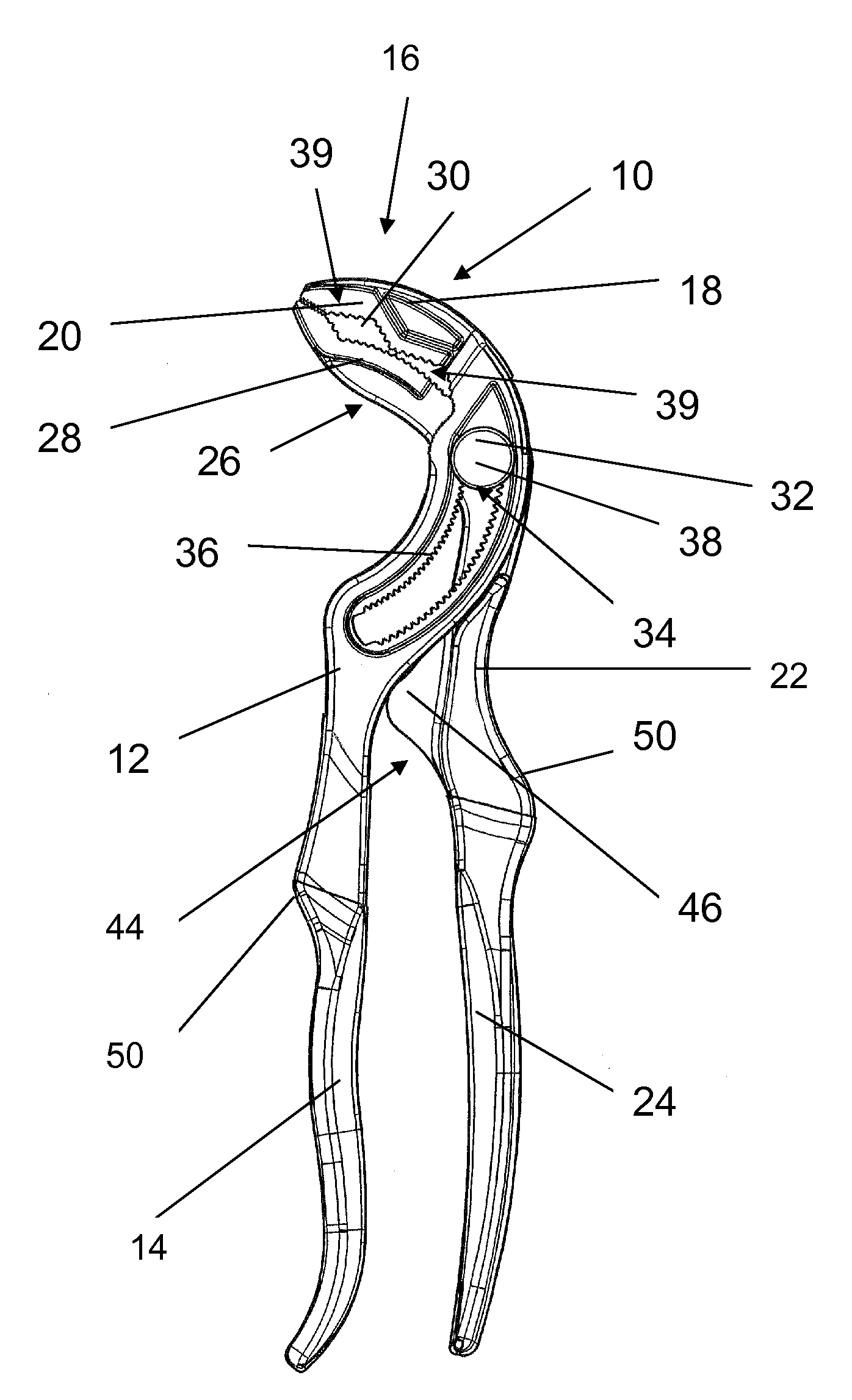

A pipe wrench or water pump wrench includes a clamp having a first shaft-like grip part and a handle having a second shaft-like grip part. A first jaw having a first gripping surface is disposed at one end of the clamp and a second jaw having a second gripping surface is disposed at one end of the handle. The second gripping surface is formed so as to be complementary to the first gripping surface. The jaws extend in a jaw gripping direction. The gripping surfaces form a first gripping recess. An adjusting mechanism having a toothed slot is disposed in the clamp. The toothed slot is curved in the jaw gripping direction. A pivot pin connects the clamp and the handle in a pivotable manner with respect to one another. The pivot pin is displaceable via the adjusting mechanism.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | U1 | DE202011050505 | Jun 20, 2011 |
| EP | B1 | EP2720831 | Jun 18, 2012 |
| AU | B2 | AU2012272271 | Jun 18, 2012 |
| WO | A1 | WO2012175076 | Jun 18, 2012 |
| TW | A | TW201318787 | Jun 19, 2012 |
International Classification(s)
- 2012 Application Filing Year
- B25B Class
- 676 Applications Filed
- 566 Patents Issued To-Date
- 83.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B25B Class
- 20 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 21, 2027 |
