Particle separator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2016
Grant Date -
Apr 16, 2015
app pub date -
Oct 16, 2013
filing date -
Oct 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

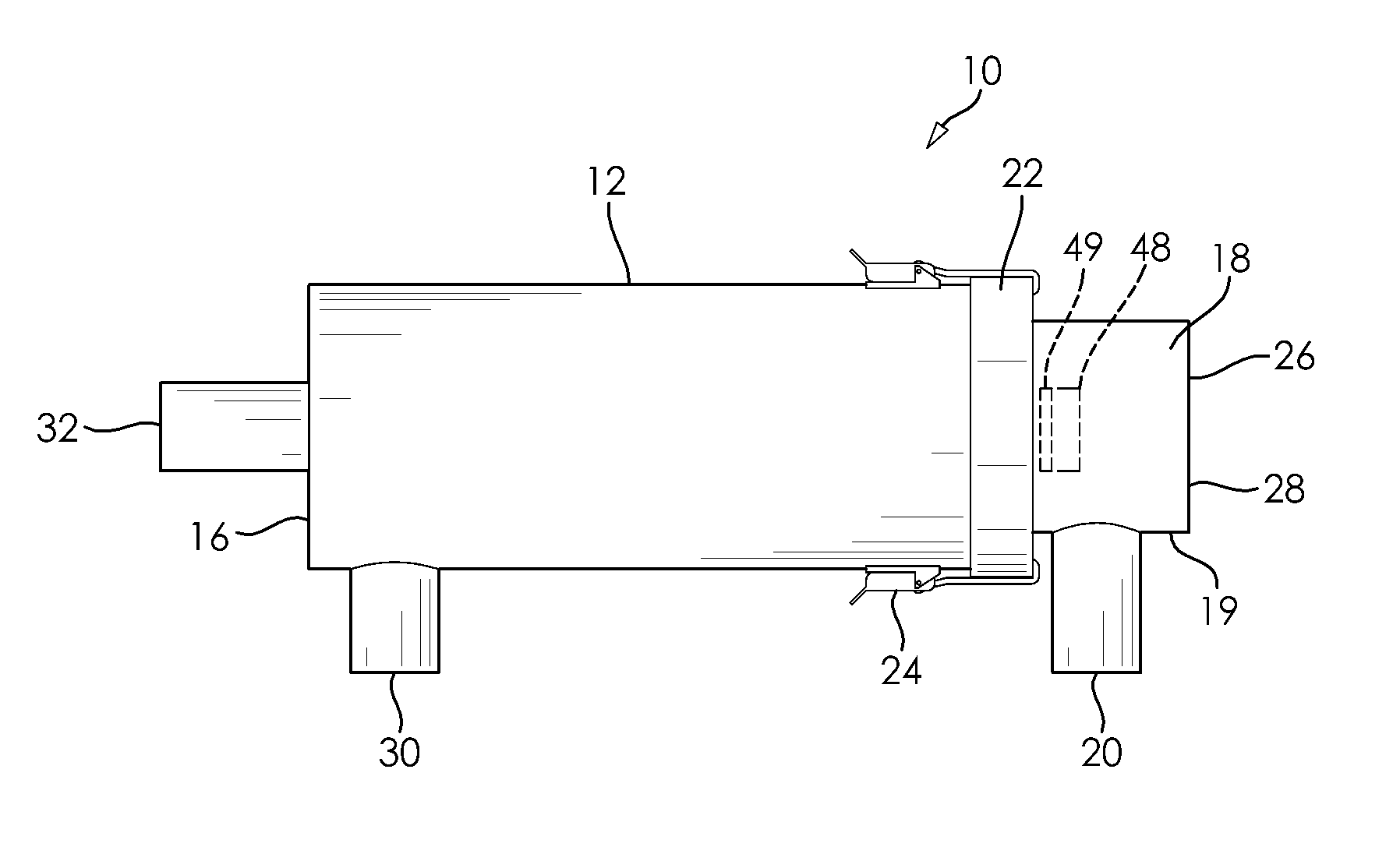

A particle separator is provided that separates small particulate from large particulate from an intermixed material feed. The separator finds particular utility in the field of separation of thermoplastic regrind particulate from intermixed debris which constitutes a smaller particulate relative to the thermoplastic regrind. Embodiments of the separator use a rotary shaft for mounting an spiral blade fed by a material feeder bin that meters material into the separator. The spiral blade is configured so that the material moves along a peripheral mesh screen to separate any smaller particulate that passes through the mesh screen leaving the large particulate to traverse though the separator, while small particulate is sieved therefrom the surrounding mesh and into a separate collection stream. The spiral blade is mounted to a central magnetic axis to achieve removal of unwanted foreign spurious metal shavings or particulate that may be introduced to molding materials due to mechanical wear of the processing machinery.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B03C Class
- 201 Applications Filed
- 183 Patents Issued To-Date
- 91.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B03C Class
- 18.02 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 21, 2027 |
