Modular multifunction fragrance emitter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2016
Grant Date -
Jan 8, 2015
app pub date -
Jul 2, 2013
filing date -
Jul 2, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

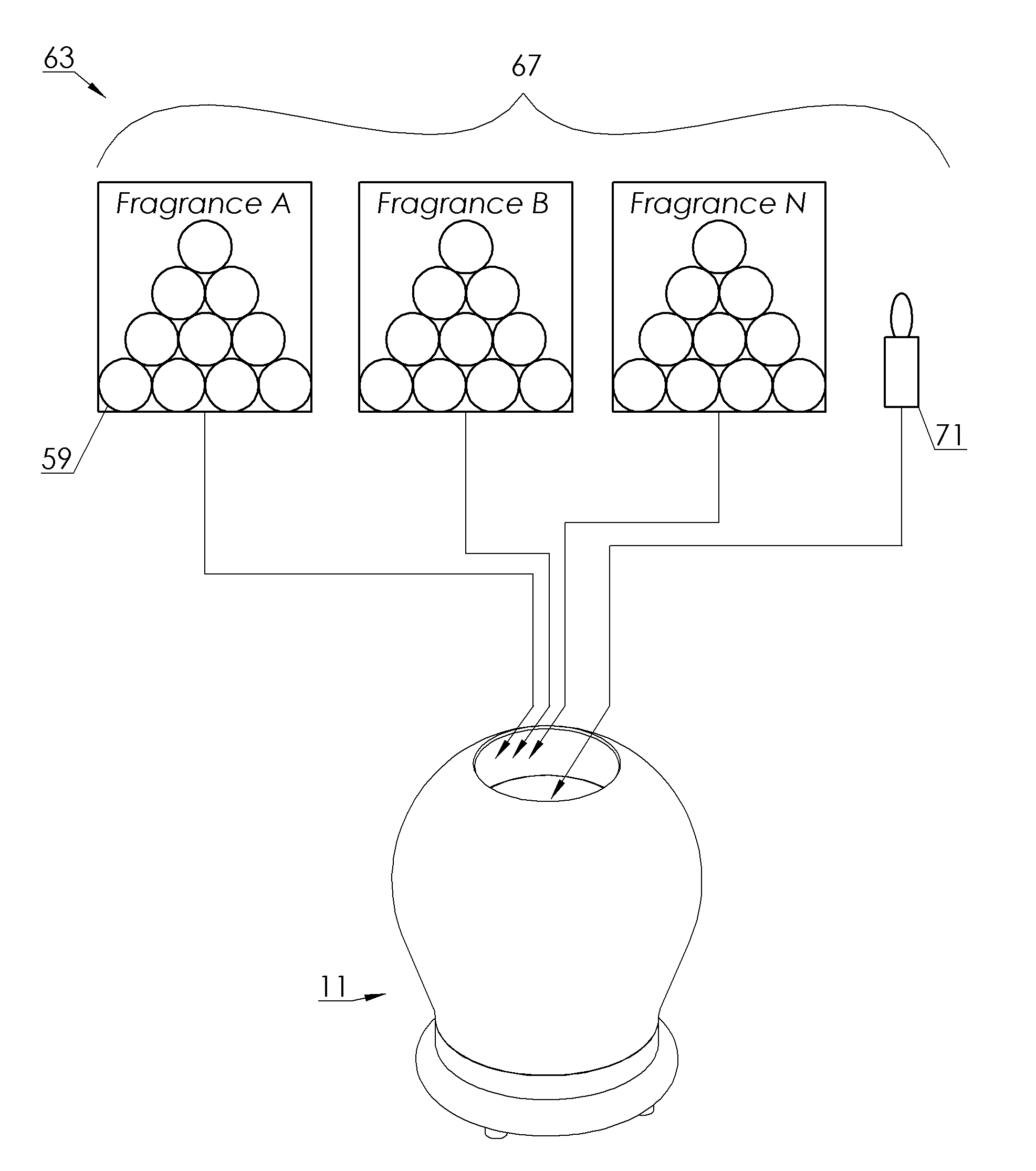

Solid fragrance carriers are received in a cavity in between a replaceable shell and a permeable screen of a base that is further housing a heating element, a vertical portion of a ventilation channel and a fan. The solid fragrance carriers are evenly directly aerated by a forced air stream that is evenly heated by passing through the screen positioned around and irradiated by the central heating element. A large storage capacity of the cavity provides for long operation time between refills. Design freedom of the replaceable shell provides for associative shell shapes adaptable to varying themes, characters or consumer goods. The screen and shell may be light permeable for a decorative illumination of the solid fragrance carriers, which may be also color coded for visual scent mixture identification. Conventional liquid fragrance carriers may also be contained in a chalice at the top of the base.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2013 Application Filing Year
- A61H Class
- 560 Applications Filed
- 456 Patents Issued To-Date
- 81.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A61H Class
- 21.05 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 21, 2027 |
