Method for provisioning of a SIM card
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 14, 2016
Grant Date -
Aug 28, 2014
app pub date -
Feb 25, 2014
filing date -
Feb 25, 2013
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

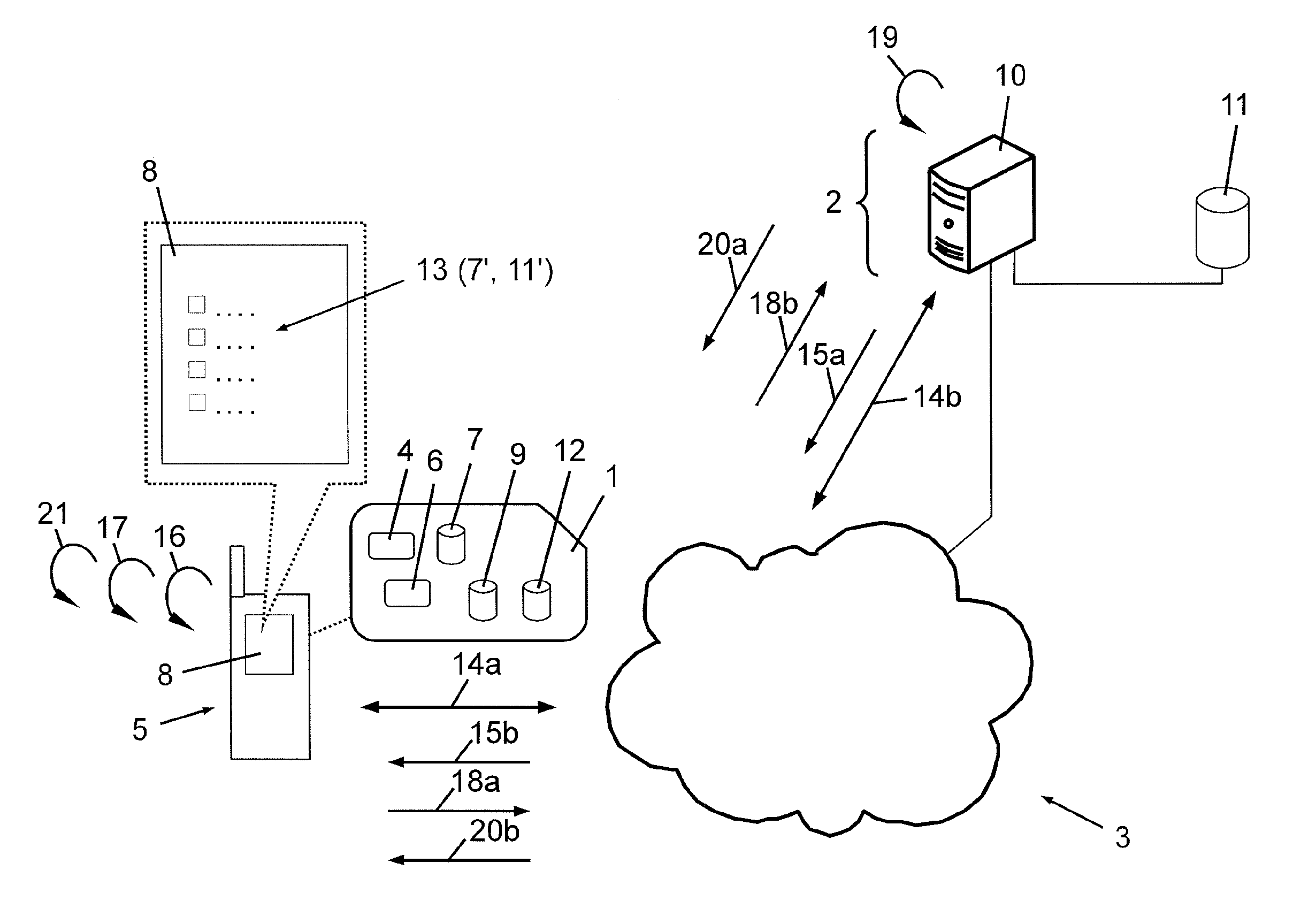

The present invention relates to a method for provisioning of a SIM card by a backend platform of a mobile network, wherein the SIM card comprises an application for activating mobile network service functionalities of a mobile terminal using the SIM card, the application is started automatically when the mobile terminal is switched on and starts a timer of at least up to 10 seconds when the presently used combination of the SIM card and the mobile terminal was not used before, during the timer a browser application on the SIM card is started, which displays data stored in a memory of the SIM card on a display of the mobile terminal and initiates a data connection to the backend platform by using an URL stored in a memory of the SIM card, after the timer has expired the browser application displays data of the URL received from the backend platform as a menu on the display of the mobile terminal, whereby the menu comprises information selectable by a user of the mobile terminal for creating a request for activating mobile network service functionalities of the mobile terminal using the SIM card, and sends a request for activating mobile network service functionalities of the mobile terminal using the SIM card to the backend platform, whereby the request is created corresponding to mobile network service functionalities selected by the user from the menu.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
VODAFONE HOLDING GMBH | 40213 DÜSSELDORF |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Siquenique, Joao | Duesseldorf, DE | 3 | 4 |
# of filed Patents : 3 Total Citations : 4 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 9 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 14, 2027 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Jul 07, 2023 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 8TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1552); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 8 |
Jun 03, 2019 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Jan 12, 2016 | I | Issuance | |
Dec 22, 2015 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Sep 25, 2014 | P | Published | |
Feb 25, 2014 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:KUB, FRANCIS J.;ANDERSON, TRAVIS J.;KOEHLER, ANDREW D.;REEL/FRAME:033147/0157 Owner name: THE GOVERNMENT OF THE UNITED STATES OF AMERICA, AS Effective Date: Feb 25, 2014 |
Feb 12, 2014 | F | Filing | |
Mar 20, 2013 | PD | Priority Date |
