Method of installing a housing for an inground vehicle lift
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 14, 2016
Issued Date -
N/A
app pub date -
Nov 7, 2014
filing date -
Nov 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

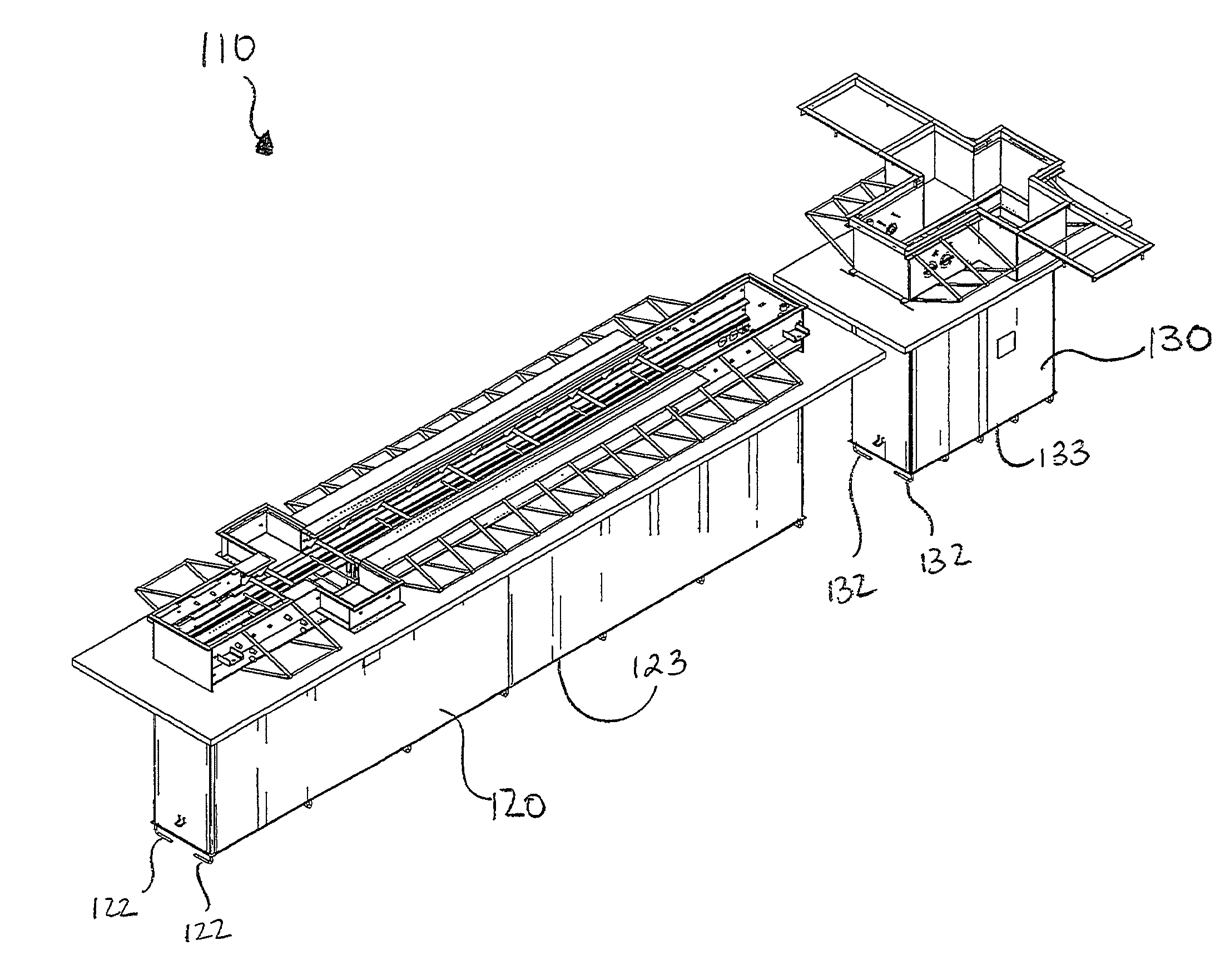

A method of installing an inground vehicle lift includes the steps of excavating an area to create a pit, lowering a housing which encloses the mechanical components of the lift into the pit via a support structure, coupling the housing with a lower rebar system and an upper rebar system via a plurality of anchors and a plurality of angled support members before or after lowering the housing into the pit, leveling the housing, pouring concrete into the pit to a level such that the lower rebar system is sufficiently embedded within the concrete, allowing the concrete to partially cure, detaching the housing from the support structure, backfilling the pit with backfill material, installing insulation within the pit above the backfill material, and pouring concrete into the pit to a level such that the upper rebar system is sufficiently embedded within the concrete.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- E04B Class
- 1073 Applications Filed
- 903 Patents Issued To-Date
- 84.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E04B Class
- 17.54 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 14, 2027 |
