Electrospinning solution, polyvinyl alcohol nanofibers and ion-exchange membrane
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 14, 2016
Grant Date -
Nov 19, 2015
app pub date -
Oct 28, 2014
filing date -
May 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

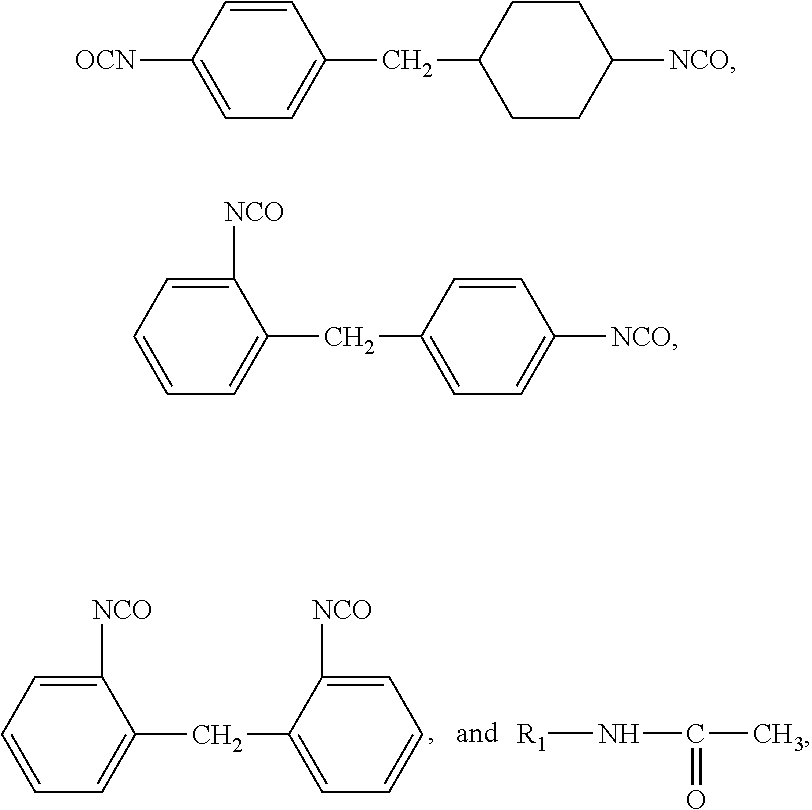

An ion-exchange membrane is provided, and the fibers of the ion-exchange membrane are obtained by electrospinning. The electrospinning solution contains 100 parts by weight of polyvinyl alcohol (PVA), 10-100 parts by weight of a modifier, 10-100 parts by weight of an ion exchanger, and 100-2,500 parts by weight of water. The modifier has a reactive group that can react with the hydroxyl groups of the PVA. The ion exchanger has a polar functional group that can form hydrogen bonds with the hydroxyl groups of the PVA, and has an anion group that can provide ion-exchange ability.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- D01D:MECHANICAL METHODS OR APPARATUS IN THE MANUFACTURE....
- C08J:WORKING-UP; GENERAL PROCESSES OF COMPOUNDING; AFTE....
- C08F:MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONL....
- H01M:PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT....
- B01J:CHEMICAL OR PHYSICAL PROCESSES, e.g. CATALYSIS, CO....
- D01F:CHEMICAL FEATURES IN THE MANUFACTURE OF ARTIFICIAL....
- B01D:SEPARATION
- 2014 Application Filing Year
- D01D Class
- 226 Applications Filed
- 164 Patents Issued To-Date
- 72.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D01D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 14, 2027 |
