Look-up table digital predistortion technique for high-voltage power amplifiers in ultrasonic applications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2016
Grant Date -
Jun 27, 2013
app pub date -
Dec 21, 2012
filing date -
Dec 22, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

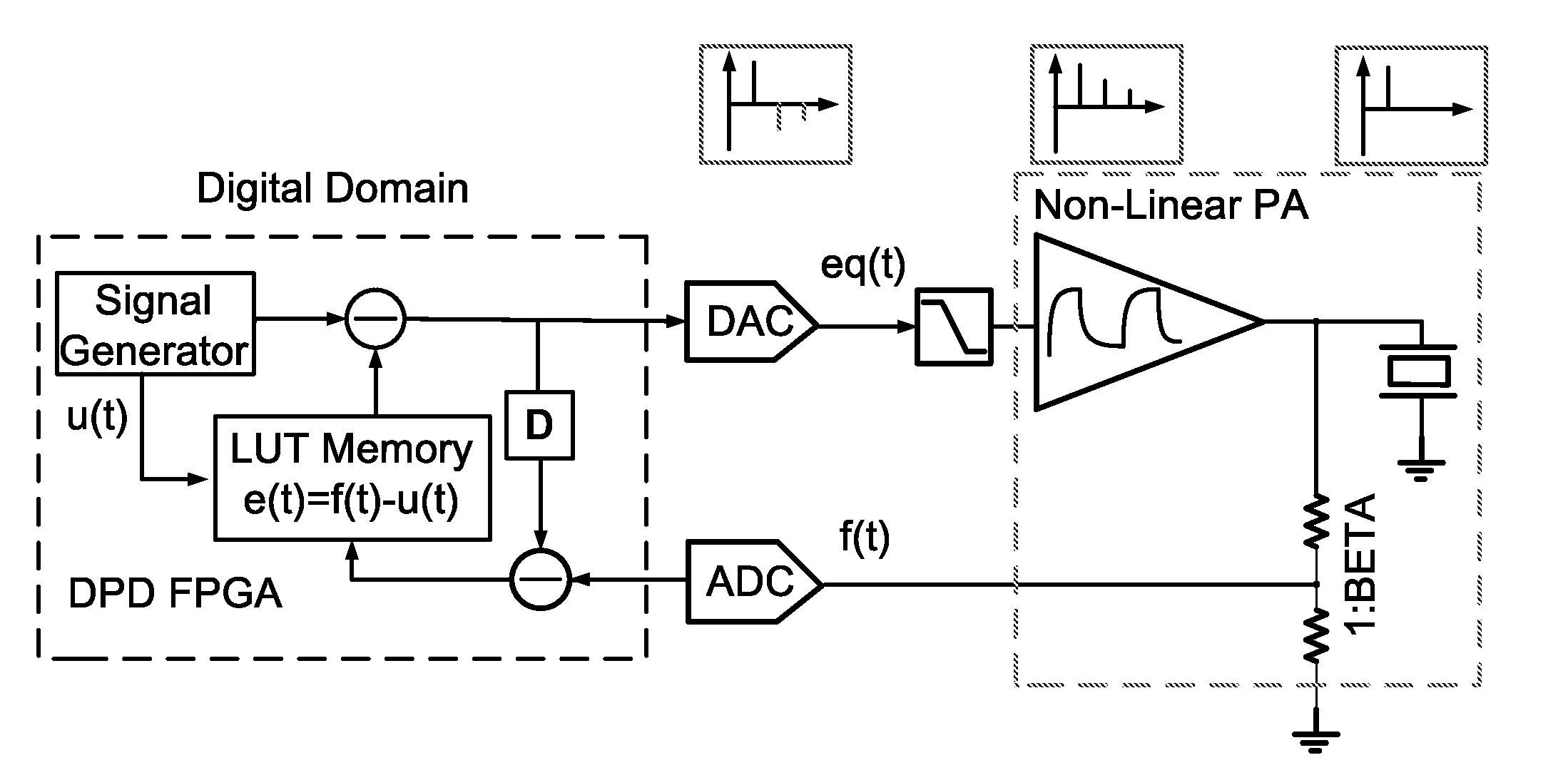

The present invention includes a digital controller for use with an ultrasound power amplifier circuit to increase linearity and efficiency of the ultrasound power amplifier circuit. The digital controller includes a digital signal generator and a memory unit that is coupled to the digital signal generator. The memory unit includes a processor that obtains an output signal from the ultrasound power amplifier circuit, calculates error by obtaining a difference between an ideal output signal and the output signal that is obtained from the ultrasound power amplifier circuit, and equalizes an input signal from the digital signal generator to reduce nonlinearity in the output signal of the ultrasound power amplifier circuit. The memory unit includes a look-up-table for storing values of error.
