Axilinear shaped charge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2016
Issued Date -
N/A
app pub date -
May 28, 2015
filing date -
May 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

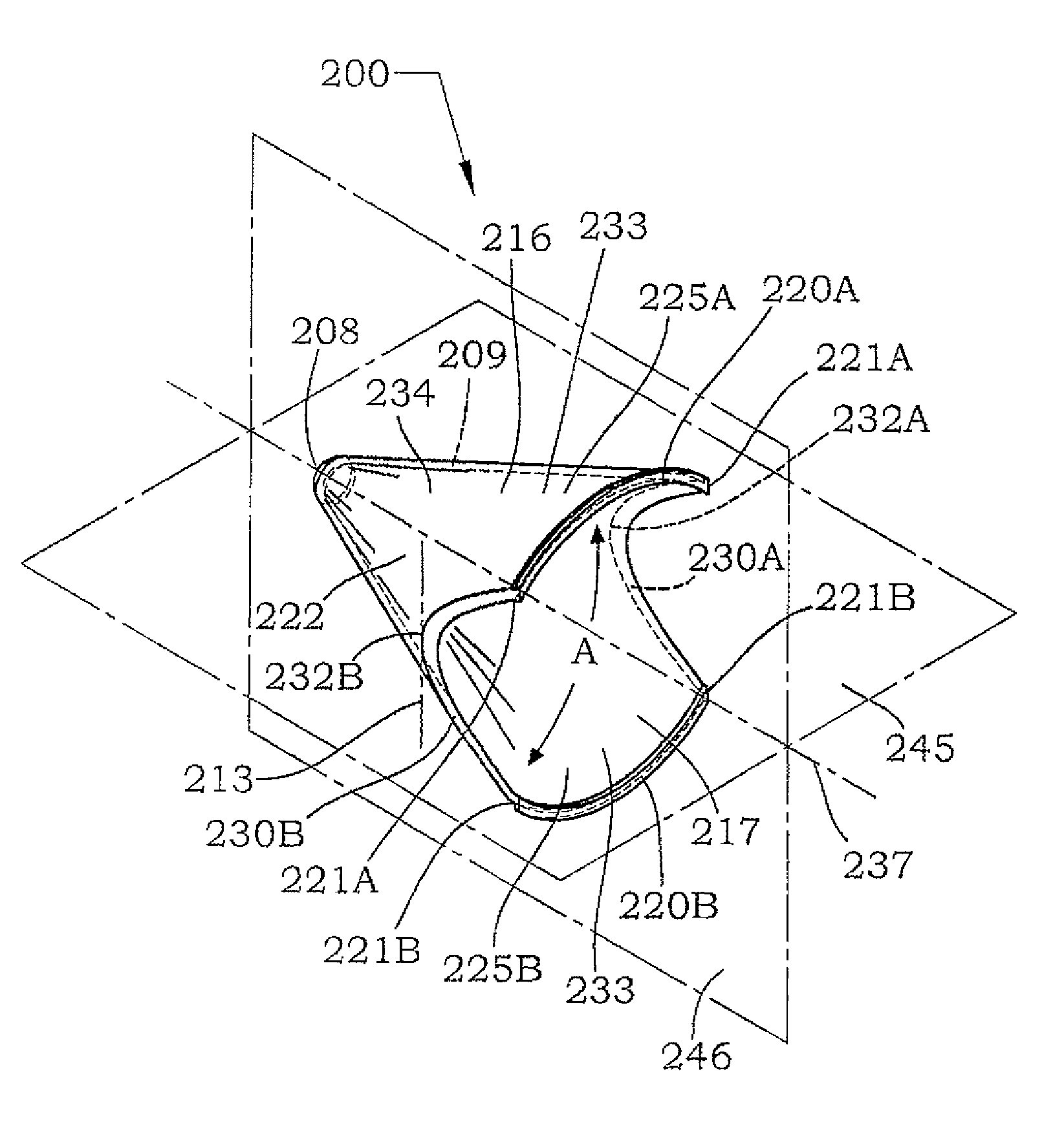

This invention is a shaped explosive device with a liner that produces a single combination jet consisting of a forward rod portion and rearward flattened spade shaped portion, this jet has a velocity gradient form tip to tail. The jet produced by the shaped charge is axisymmetric for the forward rod portion and planar symmetric for the aft wide spade portion somewhat like linear shaped charge, thusly termed the “Axi-Linear” shaped charge. The forward rod portion of each jet erodes a round hole in the target followed by the aft flattened spade portion of the jet creating a long slotted deep cavity centered on the round hole and in the lateral direction of the spade jet.
