Tension spring mount with friction-resistant coating
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2016
Grant Date -
Aug 8, 2013
app pub date -
Mar 14, 2013
filing date -
Feb 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

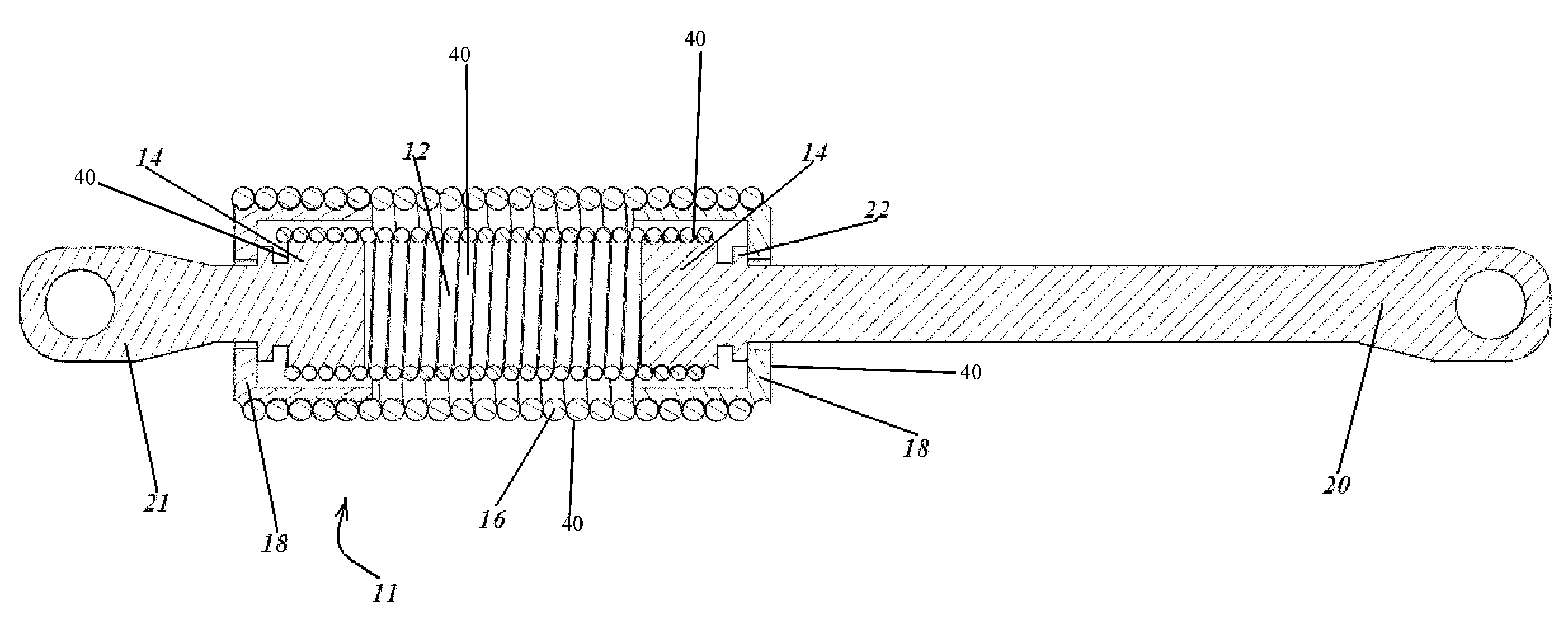

End mounts are used to secure a helical tension spring to end fixtures with various shapes and sizes. These end mounts contain an inner hole to encase the inner spring end mount and secure the end mount making it like a cap. There is also a keyhole created in the top surface that goes through the end mount allowing it to fit over the fixtures but not over the inner end mount, holding it in place. Grooves are machined in a helical pattern on the cylindrical side wall of the end mount. The spring is wound onto the grooves of the end mount. A friction-resistant coating is applied between components of the assembly to mitigate wear and to prevent bending and twisting.
