Multitube valveless pulse detonation engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2016
Grant Date -
Dec 15, 2011
app pub date -
Jun 15, 2011
filing date -
Jun 15, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

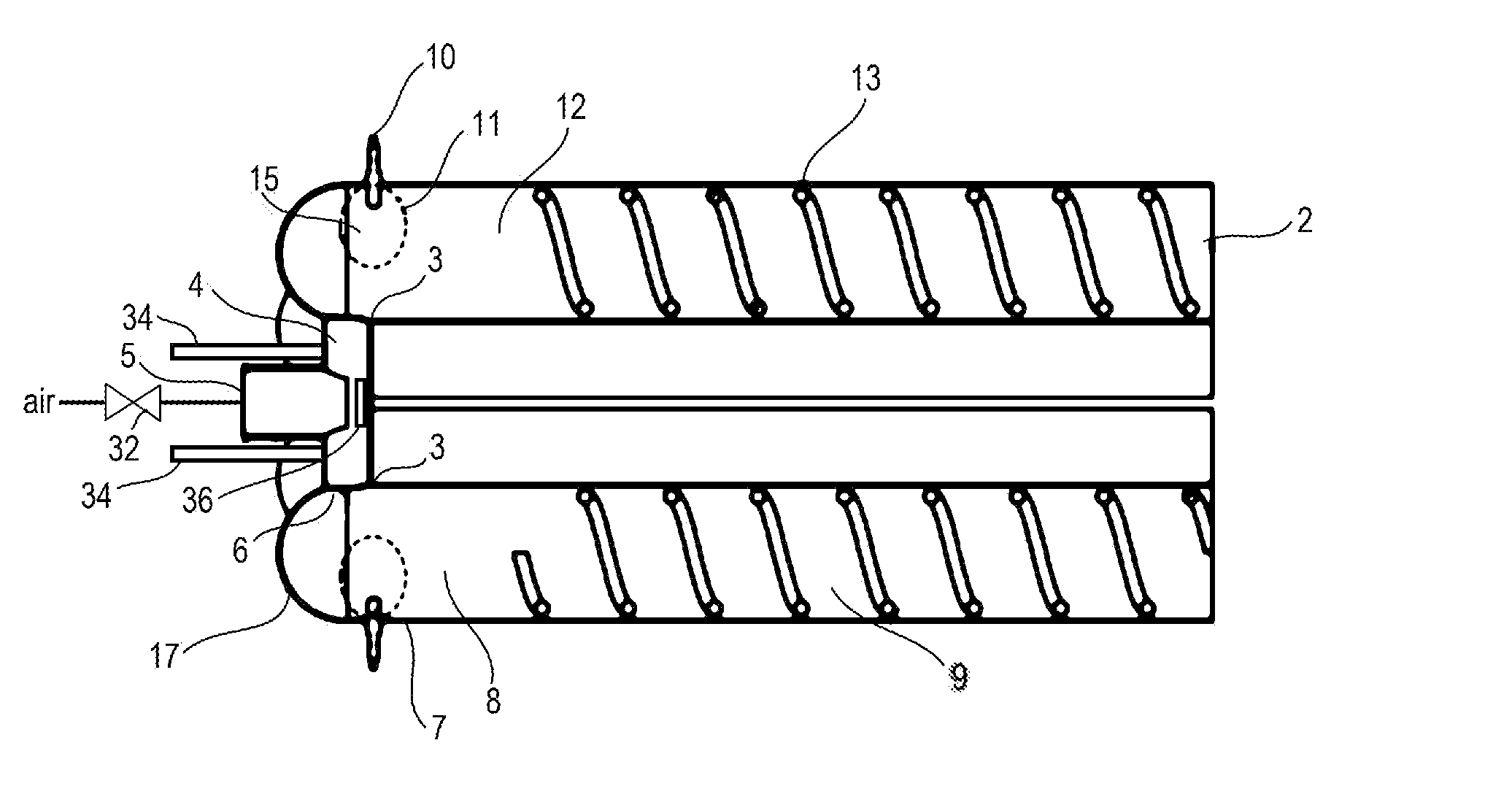

Disclosed herein is a valveless multitube pulse detonation engine including: a plurality of detonation tubes, wherein each detonation tube comprises an independent discharge outlet, and the plurality of detonation tubes interconnected at a common air/fuel mixture intake port. In the disclosed engine, an air and fuel mixture is detonated in the detonation tubes simultaneously, and the common air/fuel mixture intake port minimizes back-pressure caused by detonating the air/fuel mixture by directing multiple reverse shock waves into one another and effectively using the back-pressures as reacting surfaces for one another and effectively reducing the effect of back flowing shock waves moving towards upstream. The detonation tubes may be non-linear, and may have independent discharges. The independent discharges may be coupled to an adapter nozzle terminating in a combined exhaust outlet.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F02K Class
- 217 Applications Filed
- 182 Patents Issued To-Date
- 83.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 25 Citation Count
- F02K Class
- 96.33 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 7, 2027 |
