Axle and vehicle comprising at least one such axle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2016
Grant Date -
Jul 30, 2015
app pub date -
Jul 18, 2013
filing date -
Jul 19, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

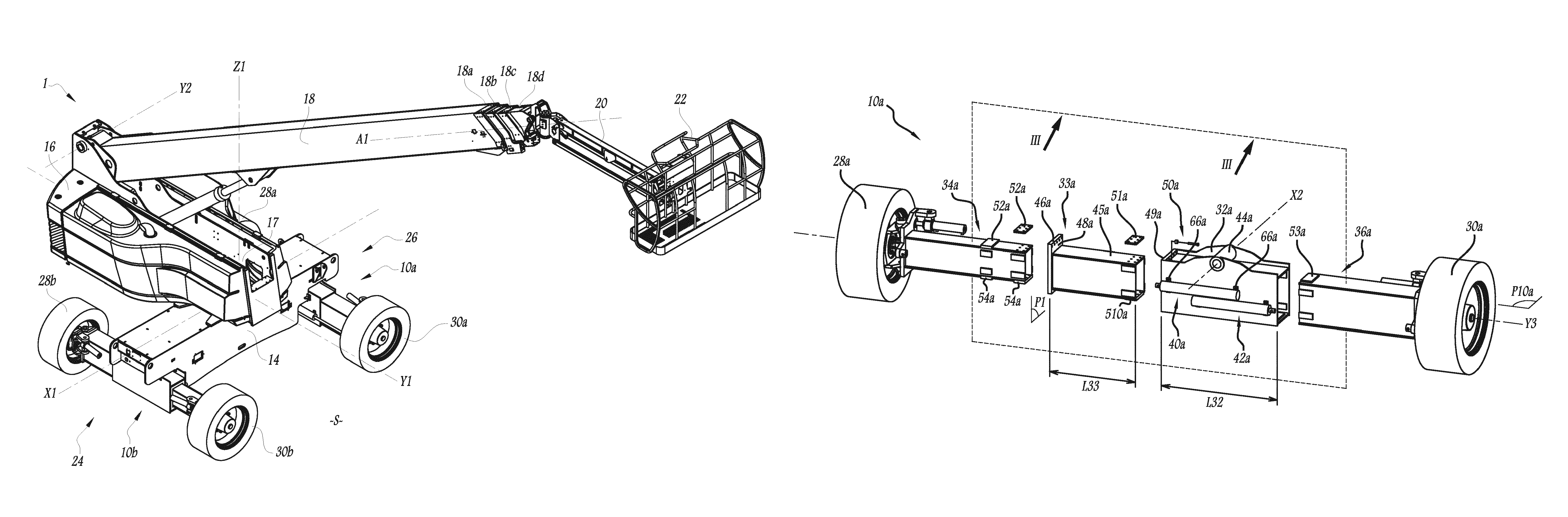

An axle mounted on a vehicle chassis includes a central box section, a first support arm connected to a first wheel and slideably mounted inside the central box section, and a second support arm connected to a second wheel and capable of longitudinal translational movement inside the first support arm, a guiding box section fixed to the central box section, including a rectangular tube and defining an external annular volume included between the central box section and the tube, and an internal volume included inside the tube, the first support arm being housed inside the external annular volume and able to be guided by the guiding box section along a first longitudinal translational path, the second support arm being housed inside the internal volume and able to be guided by the guiding box section on a second longitudinal translational path. A vehicle equipped with such an axle is described.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60B Class
- 295 Applications Filed
- 275 Patents Issued To-Date
- 93.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- B60B Class
- 92.89 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 7, 2027 |
