Valve for a subsea pressure canister
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 31, 2016
Grant Date -
Sep 10, 2015
app pub date -
Mar 2, 2015
filing date -
Mar 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

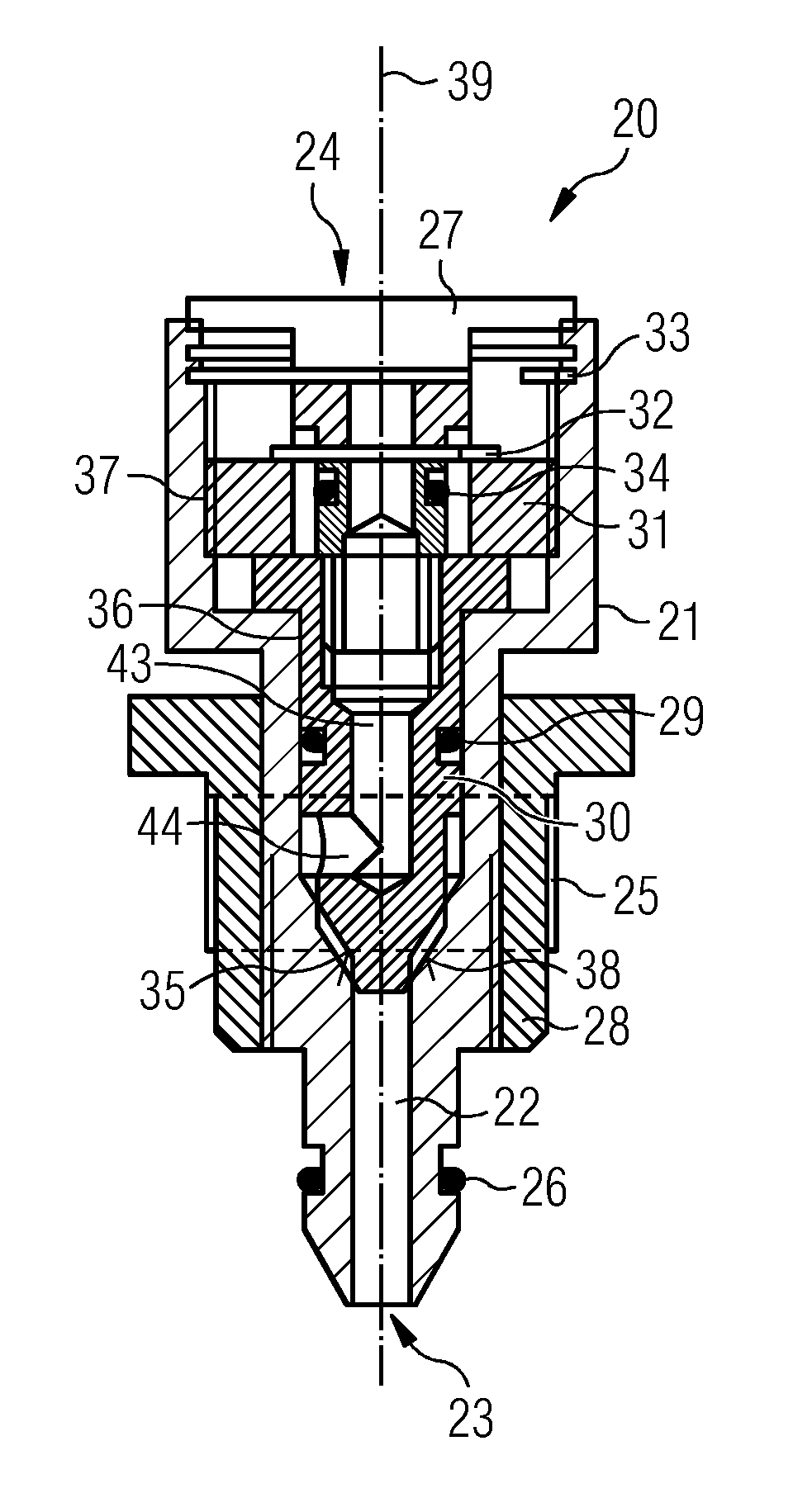

A valve for a subsea pressure canister for controlling a fluid flow includes a valve body having a passage extending in a longitudinal direction. At an inner surface of the passage, a valve seat, a sealing section, and a threaded section are formed. A stem is arranged within the passage and movable in the longitudinal direction between a closed position and an open position. The stem includes a valve member to provide a sealing between the valve seat and the valve member in the closed position. A seal is arranged between an outer circumferential surface of the stem and the sealing section. An actuator device includes a threaded section engaged with the threaded section of the passage. The actuator device includes a coupling element for coupling the actuator device to the stem to urge the stem in the longitudinal direction upon the longitudinal movement of the actuator device.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2027 |
