Method and apparatus for the downhole injection of superheated steam
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 31, 2016
Grant Date -
May 8, 2014
app pub date -
Oct 28, 2013
filing date -
Nov 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

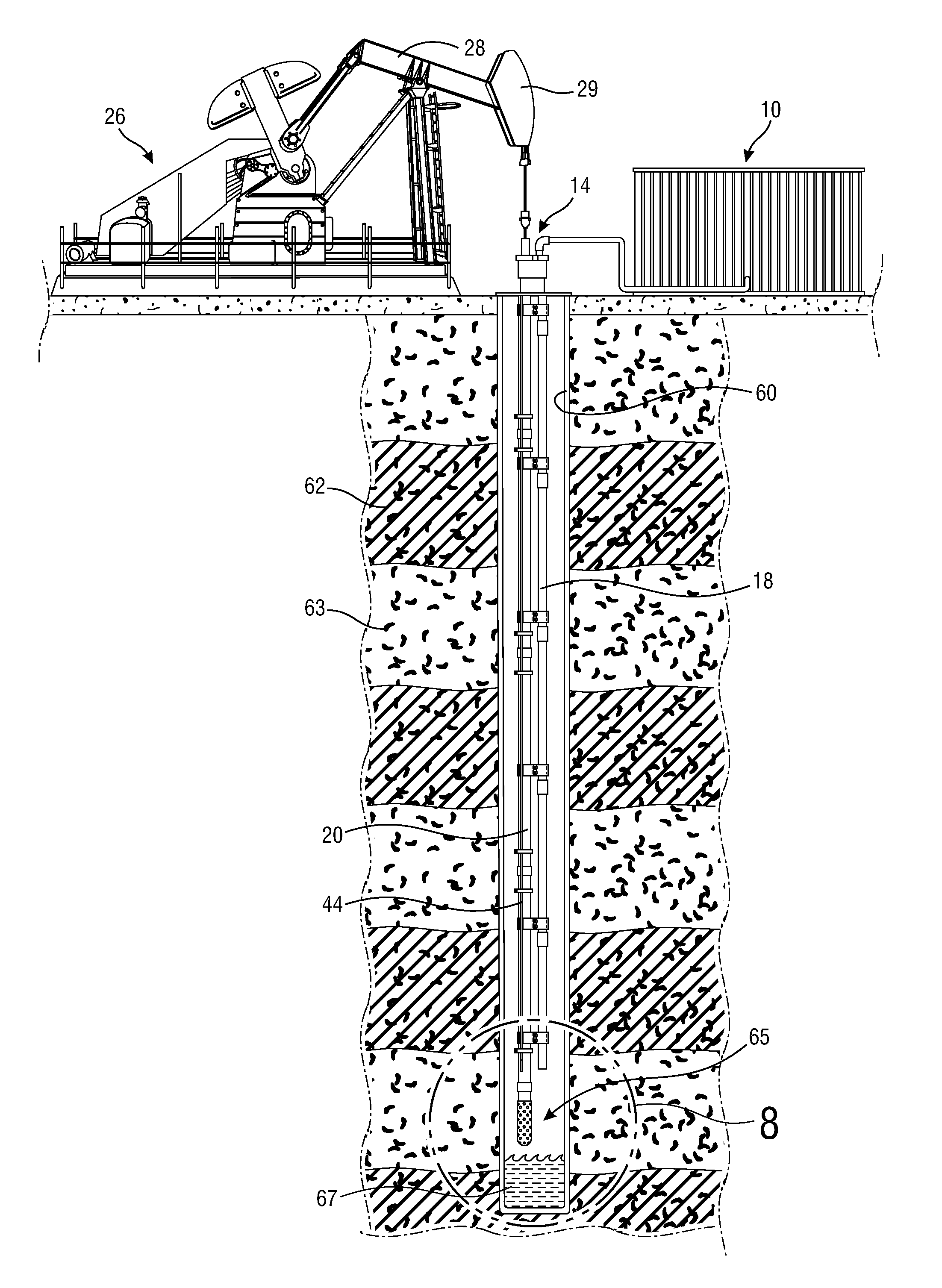

Superheated steam from a generator (10) proximate a well (14) is delivered through an output pipe (12) that communicates through a dual entry wellhead (17) with downhole steam piping (18) extending into the well (14). Steam is delivered at approximately 50 PSIG over the frictional and other losses encountered from the surface to the steam piping outlet (19). Oil is extracted through production tubing (20) passing through wellhead (17). Production tubing (20) and steam delivery piping (18) are secured in parallel relationship by clamps (46). The production tubing (20) communicates with a lift pump, and the steam piping (18) is terminated generally at a midpoint of the production tubing (20), several feet above the lift pump. A thermocouple (43) is placed approximately two feet below the end of the steam piping (18).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- E21B Class
- 3688 Applications Filed
- 3292 Patents Issued To-Date
- 89.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2027 |
