Device for transmitting electric power from a wall to a wing fastened to said wall in a hinged manner

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9349531
APP PUB NO 20130181542A1
SERIAL NO

13823741

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

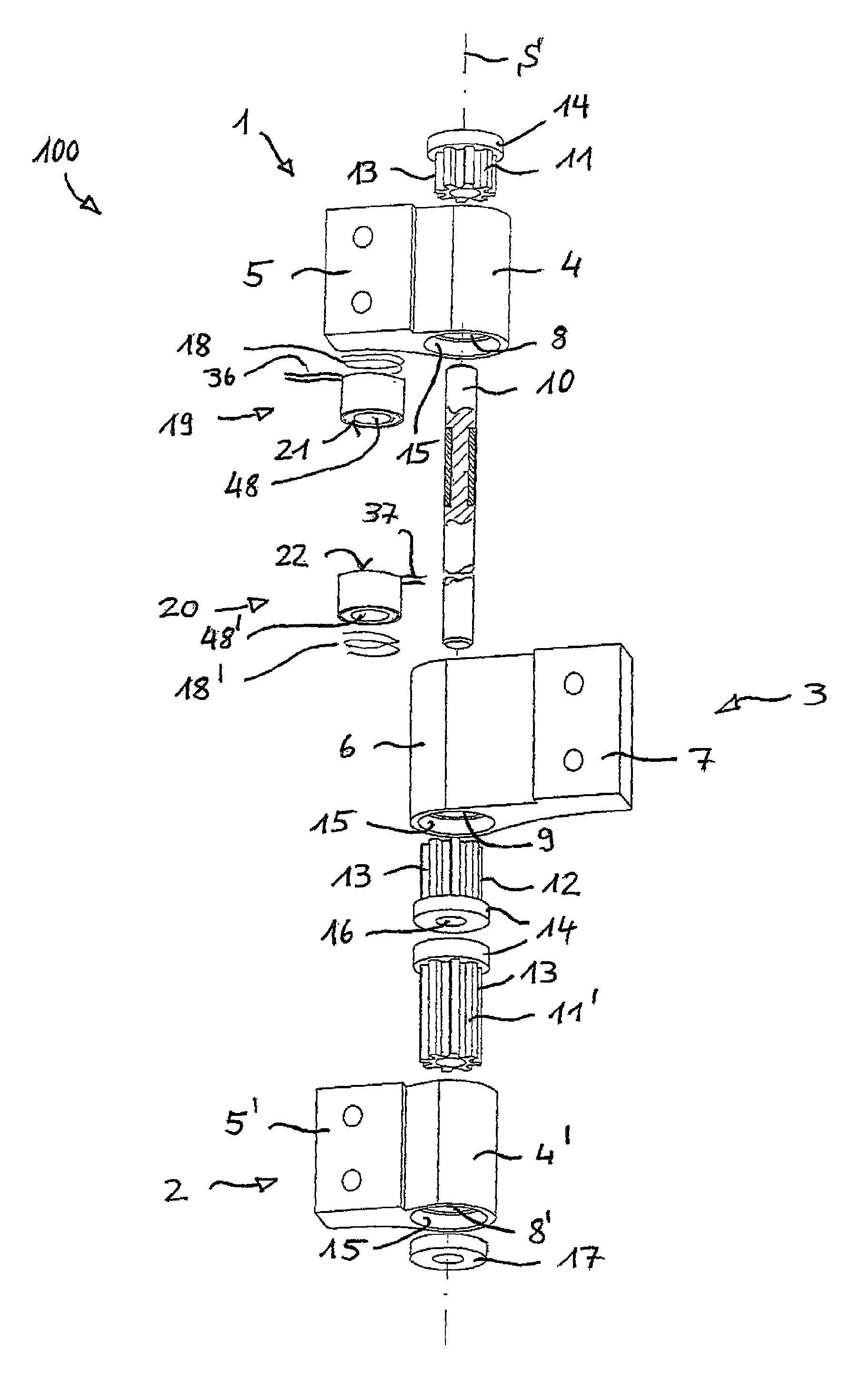

A device for transmitting electrical power from a wall to a wing attached thereto about a hinge axis includes a wall part fastened to the wall. A wing part is fastened to the wing. A primary coil arranged on the wall part comprises an end side, a primary coil winding and a primary coil housing with ferromagnetic or ferrimagnetic properties. The primary coil housing is open on an end side facing the wing part and substantially covers the primary coil winding on an opposite end side. A secondary coil arranged on the wing part comprises a secondary coil winding and a secondary coil housing with ferrimagnetic or ferromagnetic properties. The secondary coil housing is open on an end side facing the wall part and substantially covers the secondary coil winding on an opposite end side. The end sides of the primary coil and the secondary coil face each other.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
DR HAHN GMBH & CO KGD-41189 MÖNCHENGLADBACH

International Classification(s)

  • 2011 Application Filing Year
  • E05D Class
  • 268 Applications Filed
  • 164 Patents Issued To-Date
  • 61.20 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20112012201320142015201620170255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Herglotz, Tibor Kreuzau, DE 17 95
Staude, Wolfgang Waldeck, DE 6 27
Steinfeld, Ingo Langenfeld, DE 16 93

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 1 Citation Count
  • E05D Class
  • 15.53 % this patent is cited more than
  • 9 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges34150293301 - 1011 - 2021 - 3031 - 400102030405060708090100110120130140150160

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Nov 24, 2027
