Hot stick power analyzer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
May 8, 2014
app pub date -
Oct 23, 2013
filing date -
Nov 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

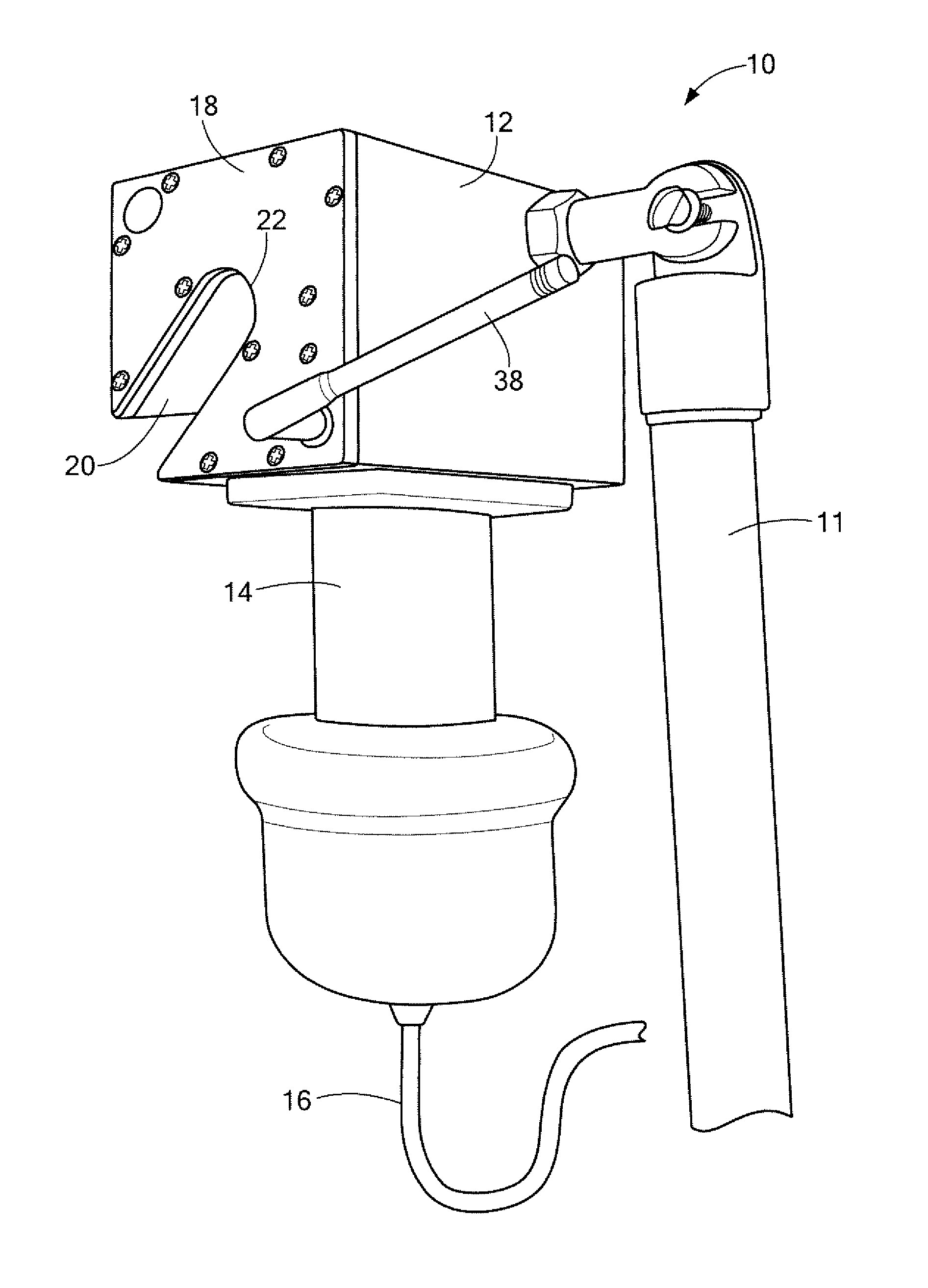

A hot stick power analyzer includes a housing mounted on a pole and a channel for a power line. A ground line extends from the housing and there is a power line conductive contact. A voltage sensor includes voltage sensing circuitry connected to the power line conductive contact and the ground line. There is a high voltage capacitance between the ground line and the voltage sensing circuitry. A current sensor includes windings about and spaced from the power line. A processing subsystem is responsive to the voltage sensing circuitry and to the current sensor and is configured to compute power analysis metrics.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01R Class
- 4386 Applications Filed
- 3938 Patents Issued To-Date
- 89.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01R Class
- 12.96 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2027 |
