Crossbow device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
N/A
app pub date -
Jun 4, 2015
filing date -
Jun 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

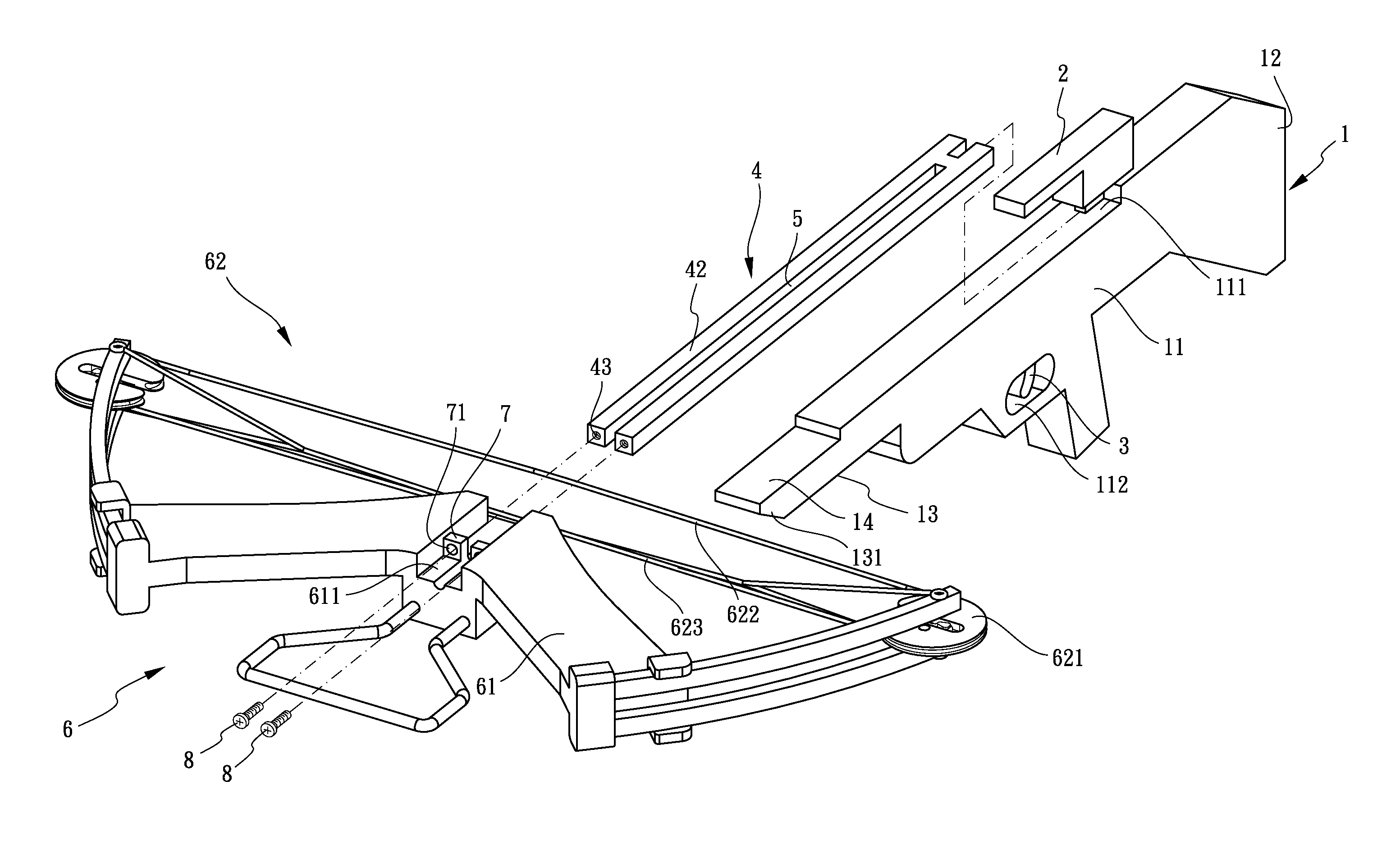

A crossbow device at least comprises a stock with a body portion, a track, and a aiming position member. A lower bow portion is arranged at the front of the body portion which includes a connection portion and a first screw hole is arranged thereinside. A bow frame is fastened in the track and assembled with the aiming position member. A second screw hole is formed at the front of each rod. A bow string set is assembled with the bow frame. Tow positioning blocks are protruded in the limit groove and a third screw hole is arranged at each positioning block and corresponding to the second screw hole. A fourth screw hole is arranged at a hook portion and corresponding to the first screw hole. The screw members are screwed in the third screw hole, the second screw hole, and the fourth screw hole of the hook portion.
