Apparatus and method for transferring springs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
Aug 20, 2015
app pub date -
Aug 8, 2013
filing date -
Aug 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

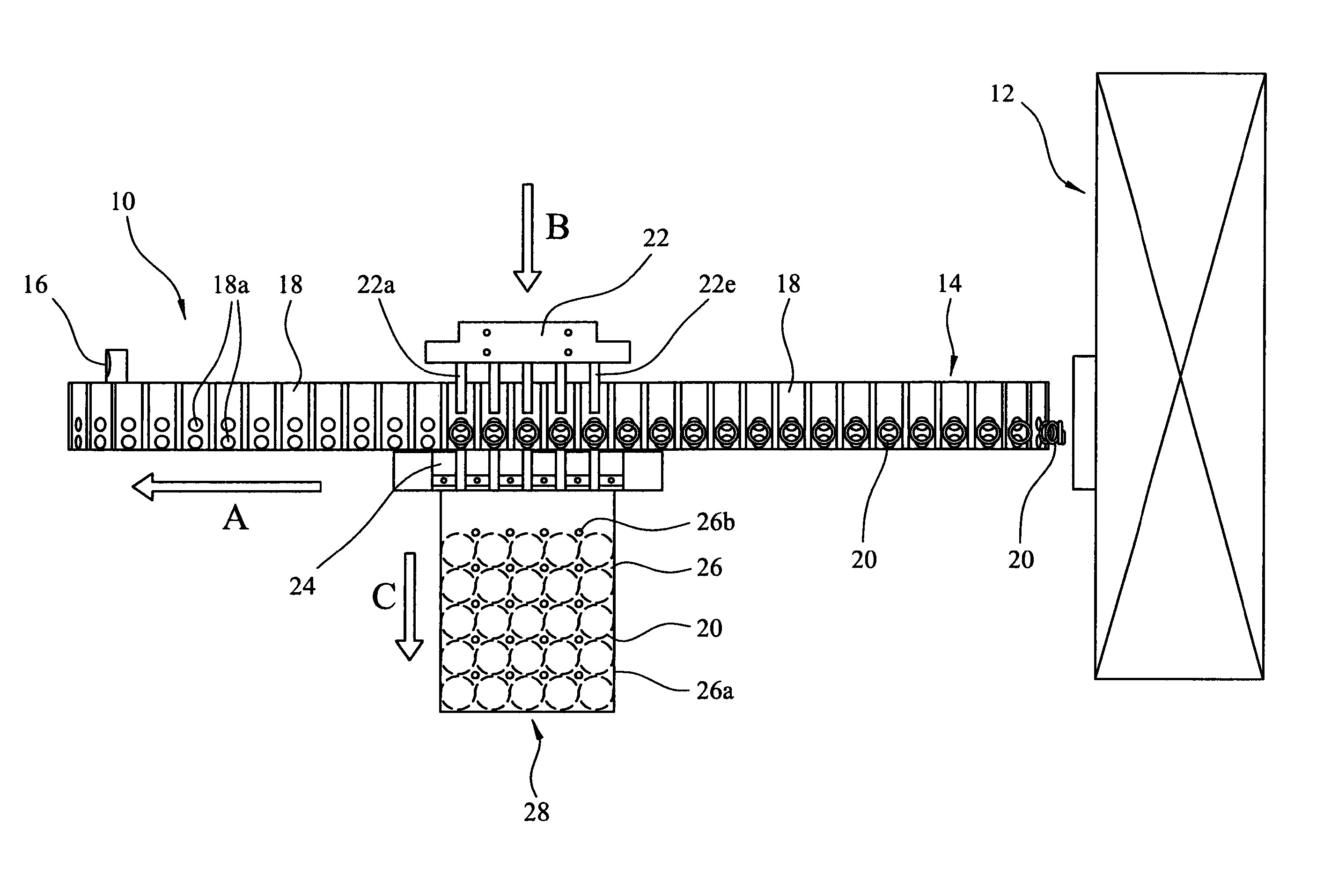

A spring transfer apparatus, shown generally at 10, is positioned adjacent a spring coiling machine 12 (shown only schematically). The transfer apparatus comprises a conveying substrate in the form of a belt 14 arranged in an endless loop and driven in a direction A by a motor 16. The belt comprises a plurality of magnetic spring holders 18 which are arranged in use to accept steel wire springs 20 from the coiling machine 12. Each of the magnetic spring holders has a pair of ferro-magnets 18a for holding the steel springs. The magnets are arranged such that identical poles are adjacent. The apparatus is arranged such that the magnets begin to attract the formed springs before they are cut from the length of wire by the spring coiling machine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B65G Class
- 1183 Applications Filed
- 1045 Patents Issued To-Date
- 88.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65G Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2027 |
