Rail road freight car
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
Mar 12, 2015
app pub date -
Sep 12, 2013
filing date -
Sep 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

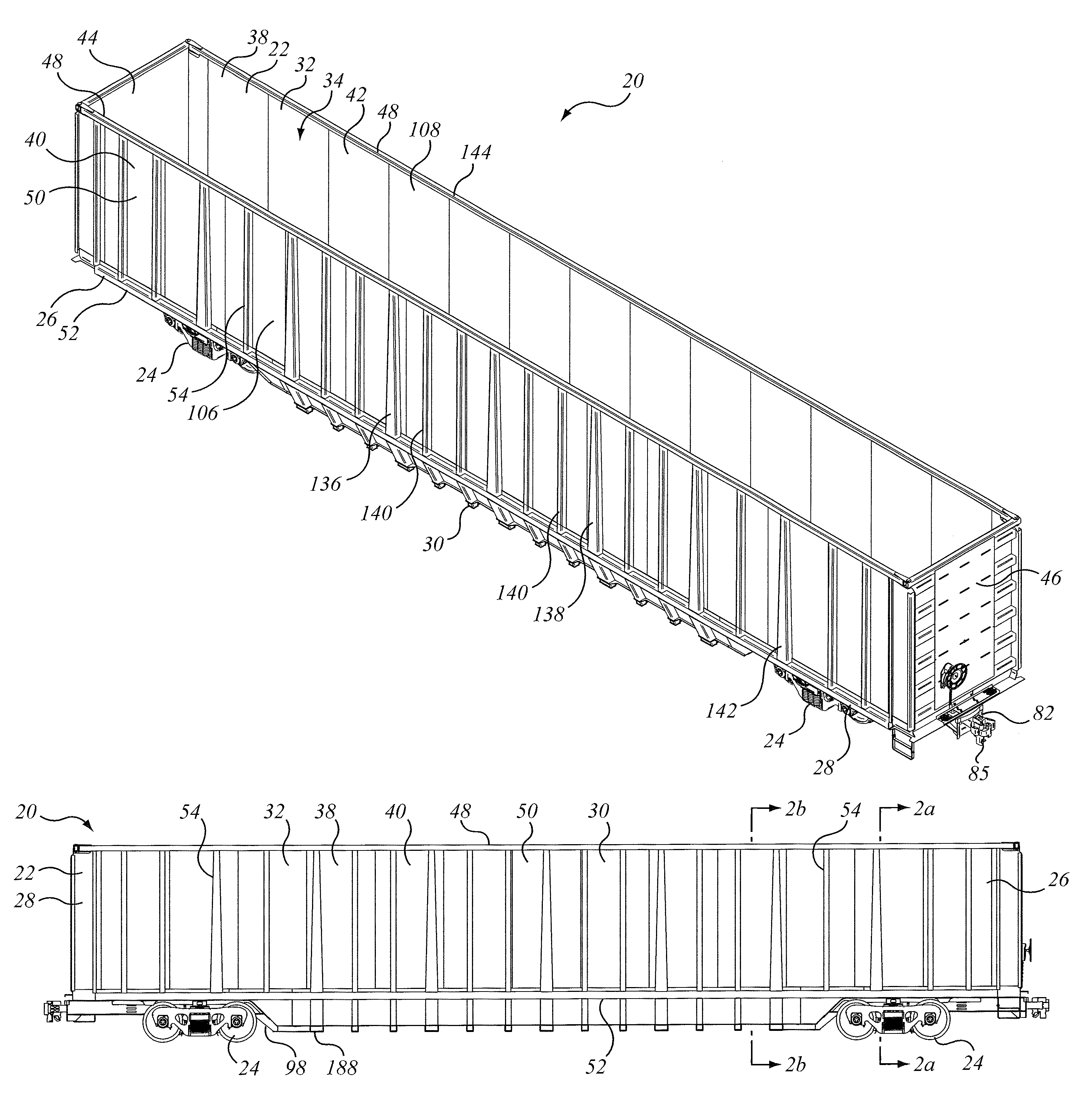

A drop-center rail road freight car may have a gondola body for carrying lading, which may have end sections and a deep central section therebetween. The body may include a decking or floor structure, and longitudinally extending side beams bordering the floor structure. The car may have U-shaped bending-moment transmitting cross-bearers. The cross-bearers and side beam stiffeners may have inner and outer flange continuity such as to transmit a bending moment. The car may have stub sills. The stub sills may each have an inboard gooseneck that extends downward and inboard. The gooseneck may have a longitudinally extending portion that connects to the endmost cross-bearer of the central portion of the car. The main shear plate may lap the side sills, and may be bent downwardly to mate with the end margins of the side sheet lower portion to form a converging box-like truncated pyramidal structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B61F Class
- 56 Applications Filed
- 53 Patents Issued To-Date
- 94.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B61F Class
- 43.48 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2027 |
