Action toys employing actuators and including control elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
N/A
app pub date -
Nov 21, 2014
filing date -
Nov 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

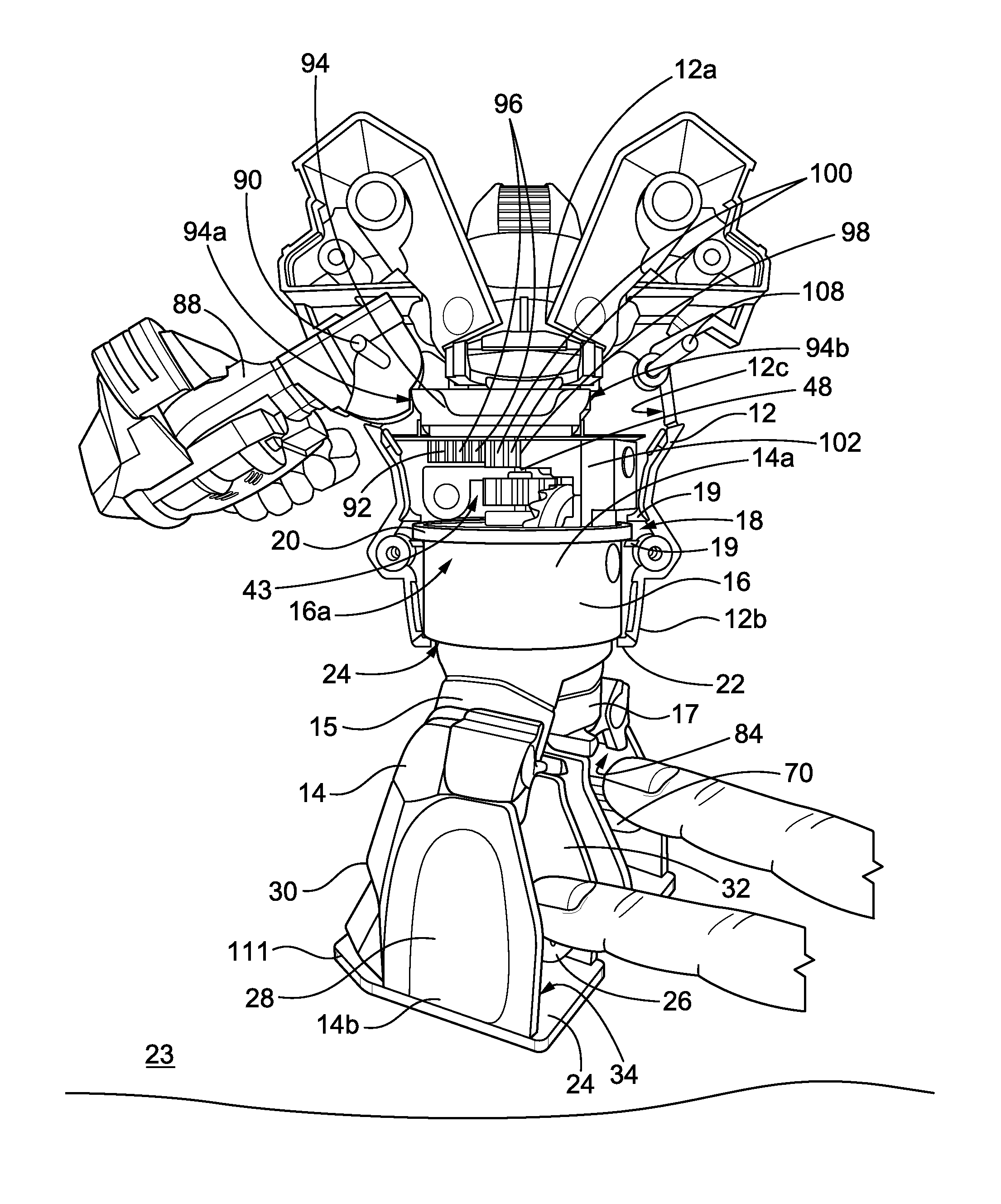

A toy figure assembly including a footing assembly in combination with a dual action actuator employing first and second working surfaces accessible through underside openings of the footing assembly for driving action movements of the toy figure by both a user's fingers and a piston driven controller secured to the footing. Further alternative embodiments with various alternative mechanism appendage couplings with the torso assembly through the footing gears, bracket or channel elements facilitate driven for movements in relation to the torso assembly moved relative to the footing assembly. Battling action game play may be expanded with the controller to battle virtual robots, allowing users to play various interactive computer based games.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A63H Class
- 381 Applications Filed
- 344 Patents Issued To-Date
- 90.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A63H Class
- 20.86 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2027 |
