Method and apparatus of beam training for MIMO operation and multiple antenna beamforming operation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 17, 2016
Grant Date -
Mar 24, 2016
app pub date -
Dec 7, 2015
filing date -
May 22, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

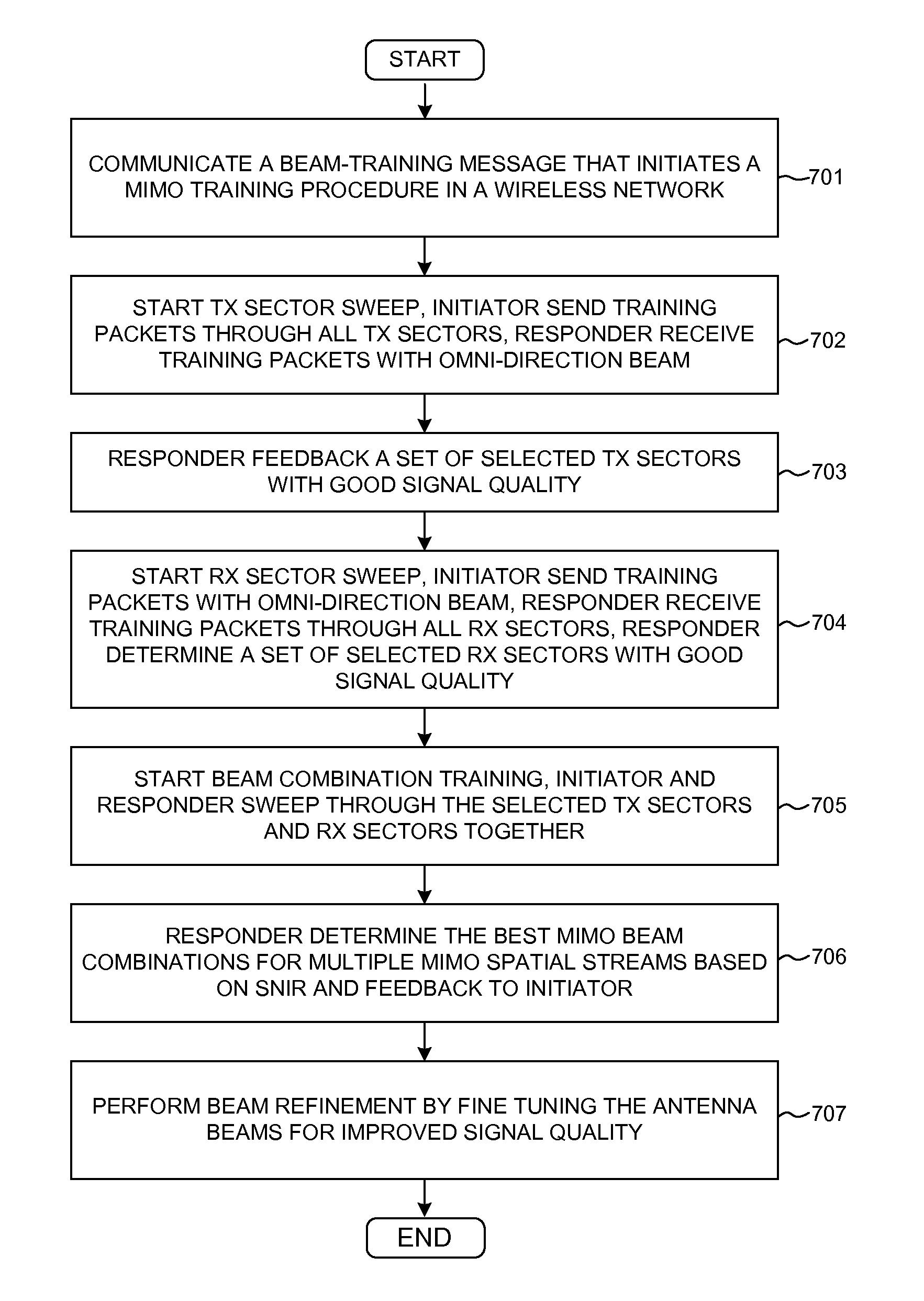

The disclosed invention provides an efficient method for MIMO beam training for multiple antennas to enable spatial multiplexing MIMO operation and spatial combining in a wireless network. The invention discloses a simple and efficient beam-training algorithm and protocol for MIMO operation that operates in high SNR condition for reliable MIMO operation. In one novel aspect, the best MIMO beam combinations are determined after TX sector sweeping and RX sector sweeping. The best MIMO beam combinations are determined in such a way that no any selected TX/RX sectors come from the same TX/RX antenna/beamformer. The selection criteria includes not only signal quality, but also considers mutual interference and leakage among multiple MIMO spatial streams to improve overall MIMO performance. Simultaneous RX or TX training are also supported to reduce training time.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H04B Class
- 10.71 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 17, 2027 |
