Wireless microphone mute control override
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 17, 2016
Grant Date -
Aug 27, 2015
app pub date -
Mar 24, 2014
filing date -
Feb 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

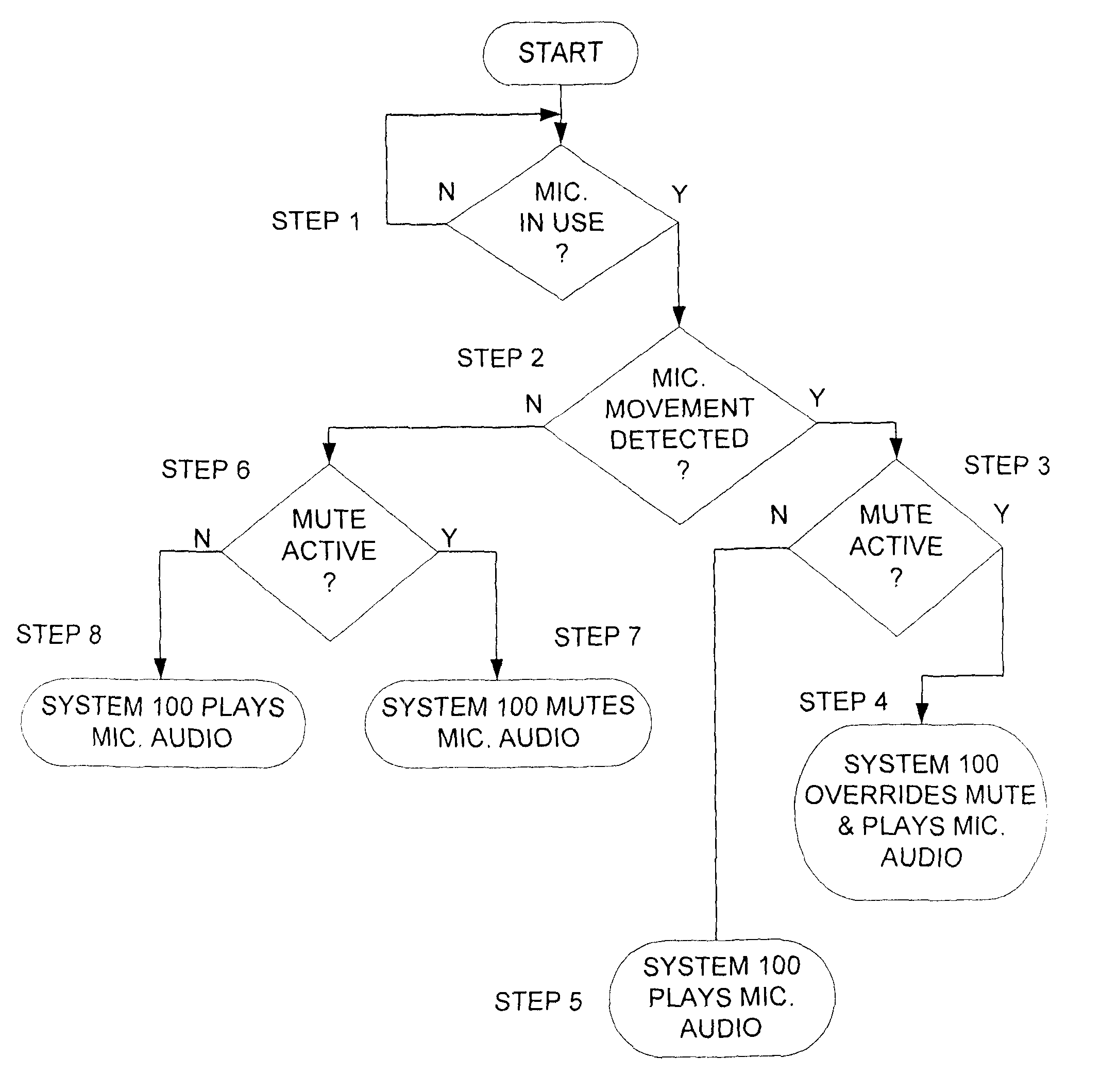

An audio system is configured to support a number of wireless microphones, and each of the wireless microphones has one or more touch sensitive mute switches and a touch sensitive mute guard band switch. The mute guard band switch is connect to an electrically conductive surface that is proximate to a microphone peripheral surface that a user is likely to touch when they move the microphone. Logical instructions running in conjunction with a DSP associated with the microphone cause the audio system to override any mute commands it receives from any of the mute switches during the time that the guard band switch is activated.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H03G Class
- 481 Applications Filed
- 428 Patents Issued To-Date
- 88.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03G Class
- 8.94 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 17, 2027 |
