Piano extended soft pedal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 17, 2016
Grant Date -
Jan 21, 2016
app pub date -
Sep 11, 2015
filing date -
Oct 3, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

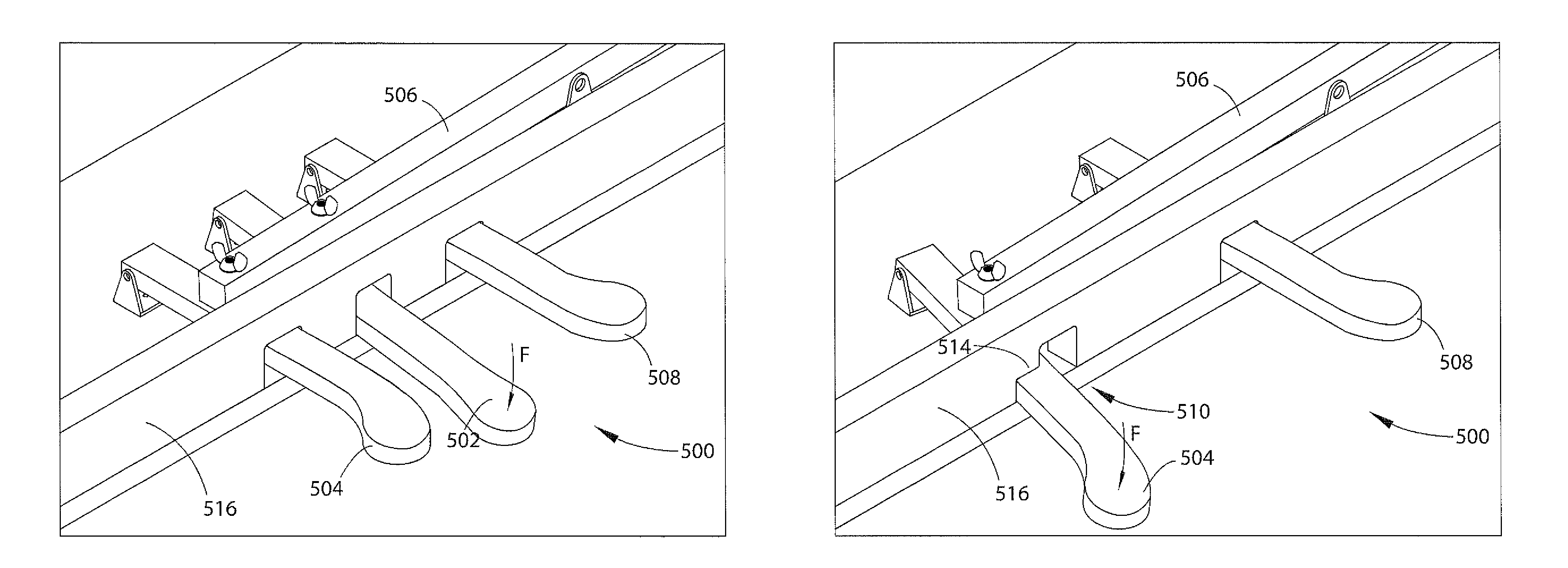

Abstract
A piano selectively playable in normal and soft modes has multiple piano keys and actions, including a wippen assembly, and multiple piano hammers. A soft mode pedal system includes soft and ultra-soft mode pedals, and a hammer rest rail mounted for movement between normal and soft mode positions. A piano key lift rail is mounted for movement between a normal mode position spaced from lifting contact with the keys and a soft mode position in contact with and lifting the keys and the wippen assemblies. A soft mode pedal linkage assembly between the soft and ultra-soft mode pedals and the hammer rest and piano key lift rails causes movement of the hammer rest rail, piano hammers, the piano keys, and the wippen assemblies upon actuation of the soft mode pedal between normal mode position and soft and ultra-soft mode positions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G10C Class
- 22 Applications Filed
- 18 Patents Issued To-Date
- 81.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 17, 2027 |
