Automated smear making apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 10, 2016
Issued Date -
N/A
app pub date -
Apr 21, 2015
filing date -
Dec 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

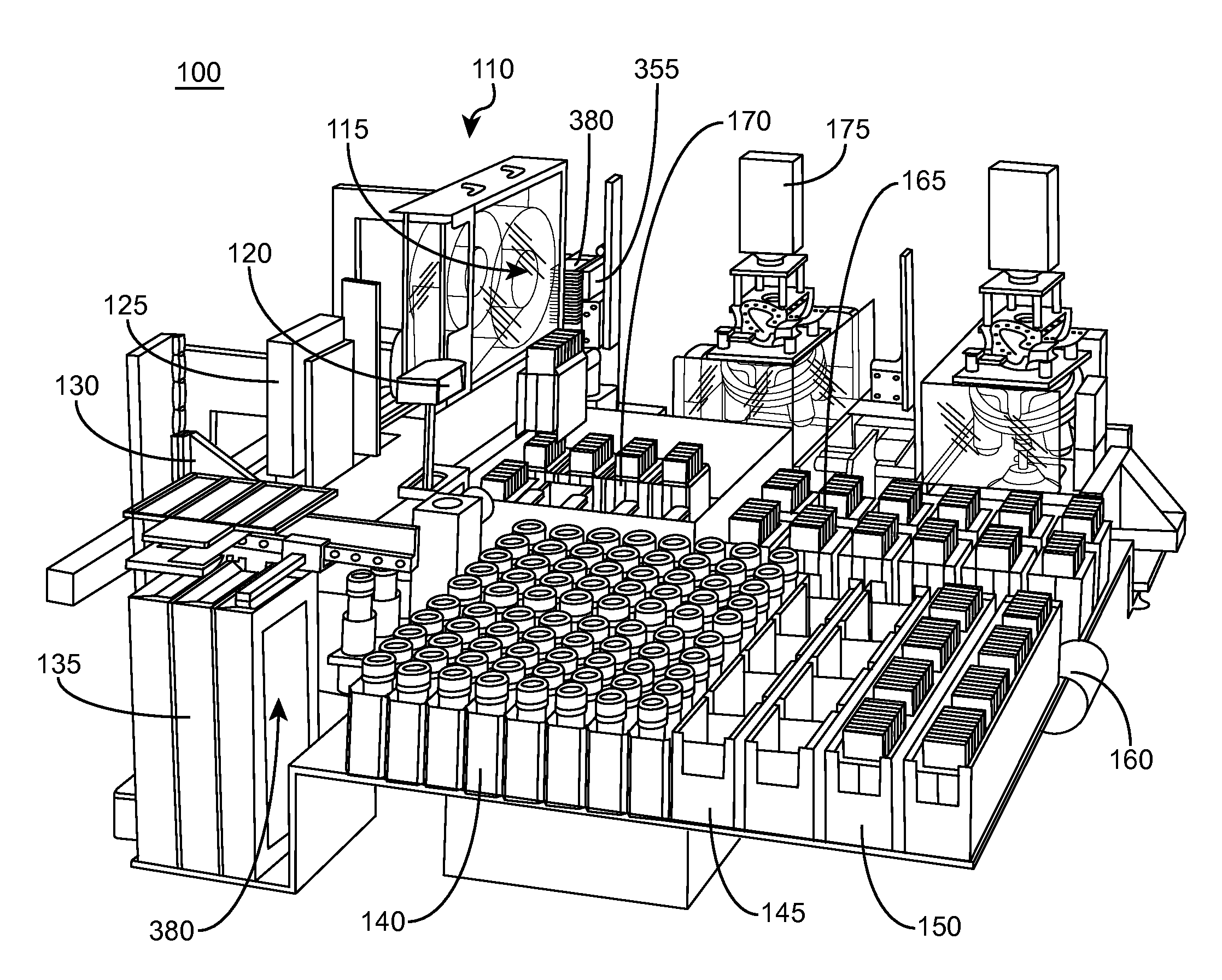

An automated smear making apparatus used to prepare and smear samples on glass slides. In one embodiment, there is provided a smearing subsystem that generally includes a smear cartridge having: an input reel; at least one roll bar; a take-up reel; and a smearing tape. The smearing tape is initially wound within the input reel and coupled to the take-up reel such that the smearing tape can be drawn from the input reel and into the take-up reel. The smearing tape may include a plurality of perforations formed therein. The smearing tape may then be wrapped around the roll bar such that each of the plurality of perforations forms a blade that extends from the smearing tape to expose a smear surface as the smearing tape is drawn into the take-up reel. Alternatively, the smearing tape may be bent such that an edge of the smearing tape forms a smear surface between two roll bars. A slide transport surface is also provided to move a slide across the smear surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B05C Class
- 543 Applications Filed
- 408 Patents Issued To-Date
- 75.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 10, 2027 |
