Acoustic panel liner for an engine nacelle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 10, 2016
Grant Date -
N/A
app pub date -
Jun 5, 2014
filing date -
Jun 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

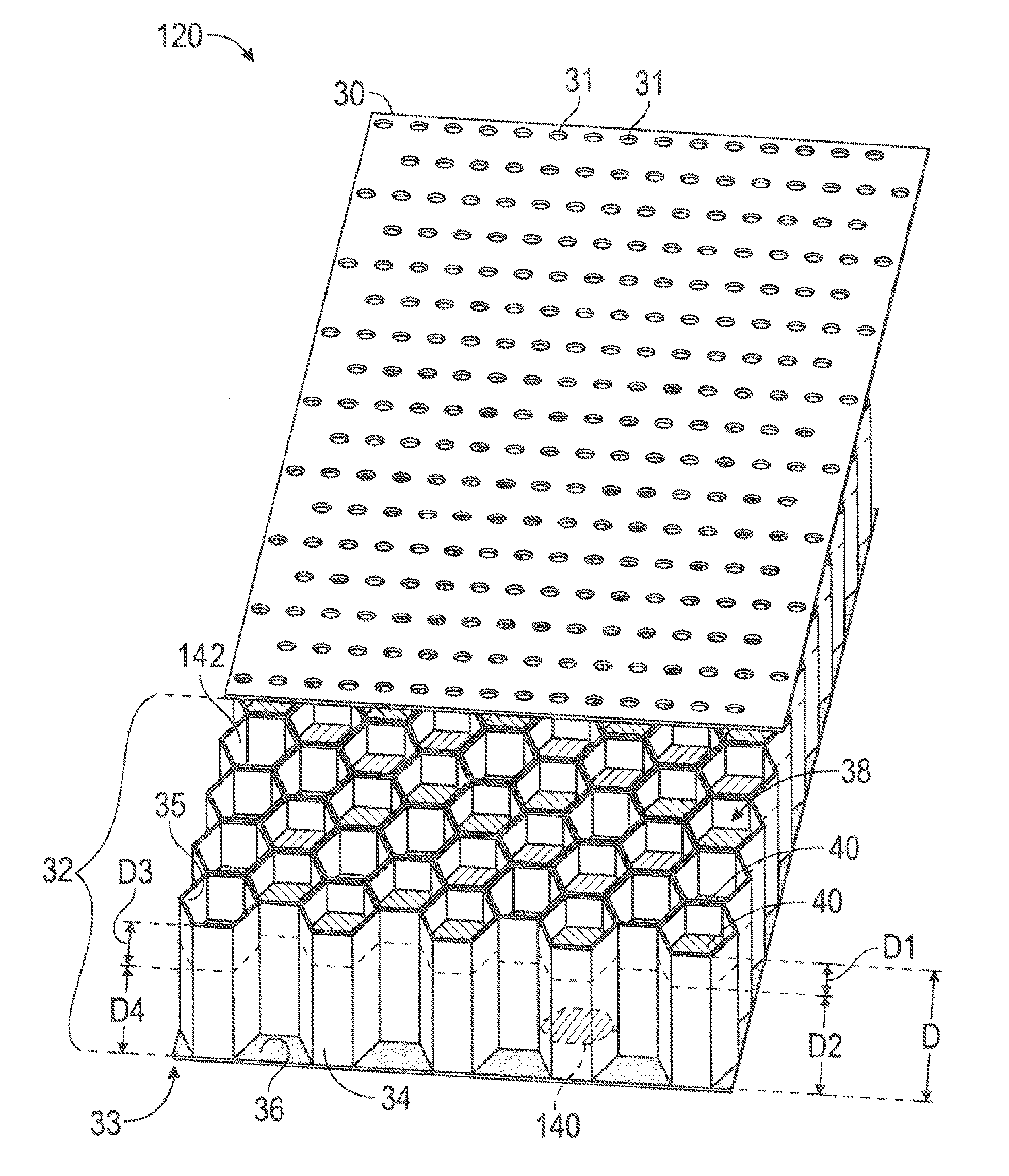

An acoustic panel liner includes a face sheet, back plate, and liner core positioned therebetween, which may be used in an engine nacelle. Elongated chambers contain variable amounts of septa at a calibrated depth or depths. The septa may have varying DC flow resistance. The chambers may have a hexagonal or other polygonal cross sections. The septa, such as mesh caps, may be bonded to an inner wall of a corresponding chamber. The insertion depths may be the same or different. If different, the pattern of distribution of the depths may be randomized.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- B64D Class
- 1366 Applications Filed
- 1081 Patents Issued To-Date
- 79.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- B64D Class
- 81.96 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 10, 2027 |
