Pixel and organic light emitting display using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 31, 2016
Grant Date -
Aug 29, 2013
app pub date -
Aug 7, 2012
filing date -
Aug 7, 2012
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

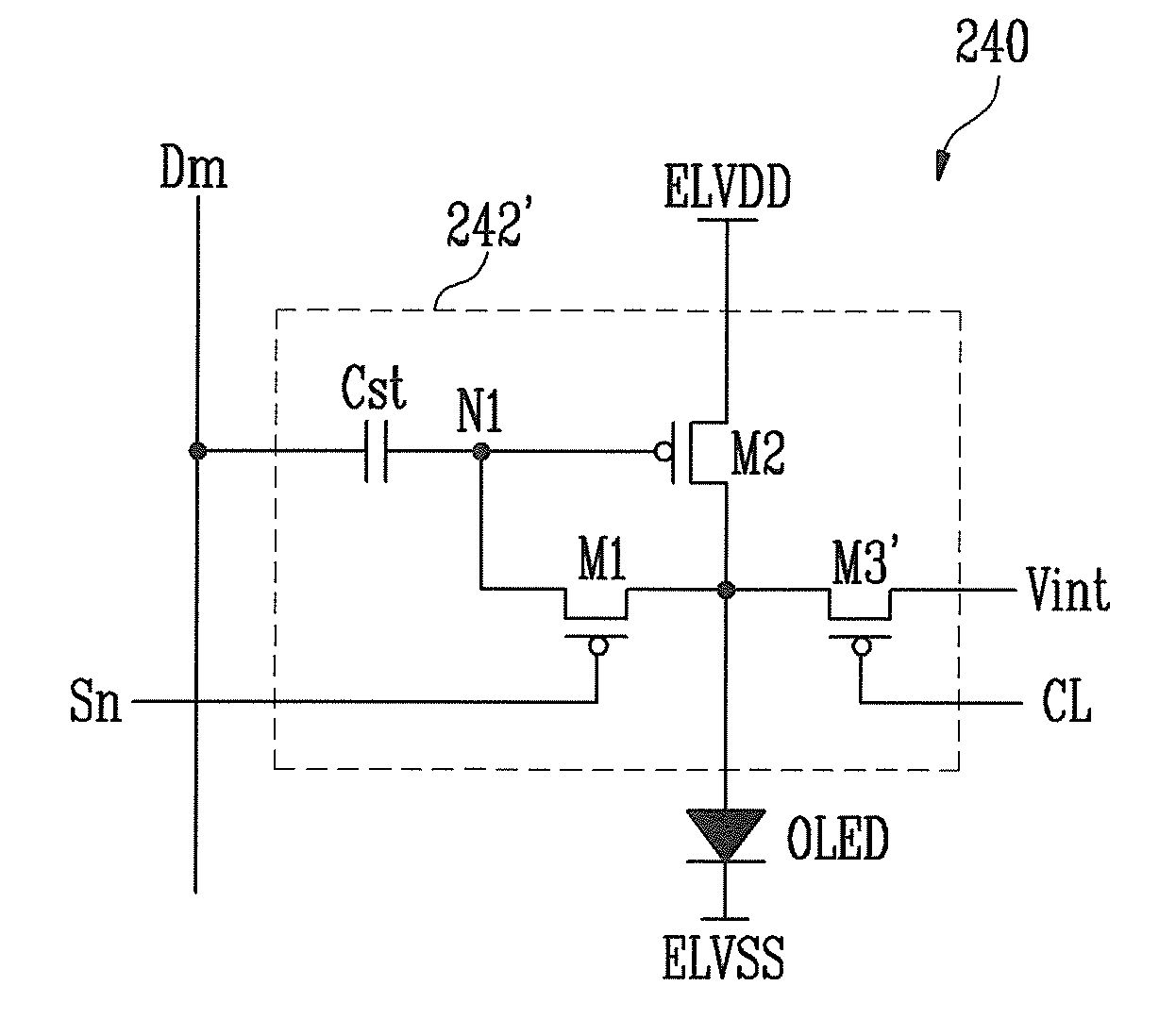

A pixel having a simplified structure can compensate for the threshold voltage of a driving transistor thereof. The pixel includes an organic light emitting diode (OLED) having a cathode electrode coupled to a second power source, a storage capacitor coupled between a data line and a first node, a second transistor having a first electrode coupled to a first power source, a second electrode coupled to an anode electrode of the OLED, and a gate electrode coupled to the first node, a first transistor coupled between the first node and the second electrode of the second transistor, a gate electrode of the first transistor being coupled to a current scan line, and a third transistor coupled between the second electrode of the second transistor and the anode electrode of the OLED, a gate electrode of the third transistor being coupled to a control line.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 3, 2027 |
