Ladder rack system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 3, 2016
Issued Date -
N/A
app pub date -
Nov 5, 2008
filing date -
Nov 5, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

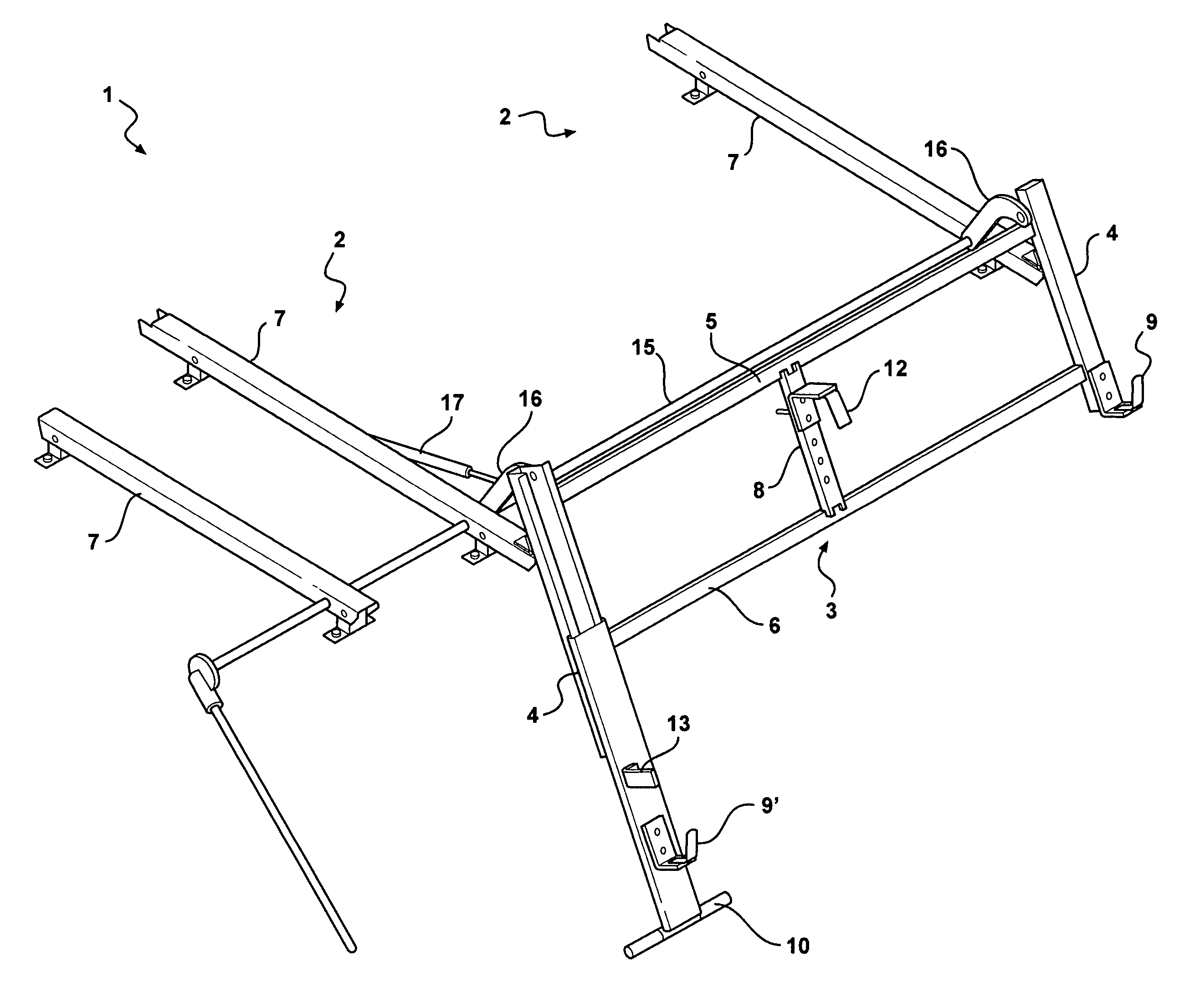

A ladder rack for supporting a ladder in a stowage position and for moving the ladder between the stowage position and a loading/unloading position at which the ladder can be loaded onto the rack or unloaded from the rack. The ladder rack includes a frame assembly which is mounted on a support structure such as a vehicle roof and a bed platform having opposite ends that are coupled to the frame assembly for sliding and hinged movement with respect to the frame assembly. At least one of the ends of the bed platform is configured to be extendible when pivoted downward into a loading or unloading position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- B60R Class
- 1322 Applications Filed
- 829 Patents Issued To-Date
- 62.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- B60R Class
- 77.36 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 3, 2027 |
