Adjustable boat seat handles
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
May 3, 2016
Issued Date -
N/A
app pub date -
Nov 17, 2014
filing date -
Nov 17, 2014
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

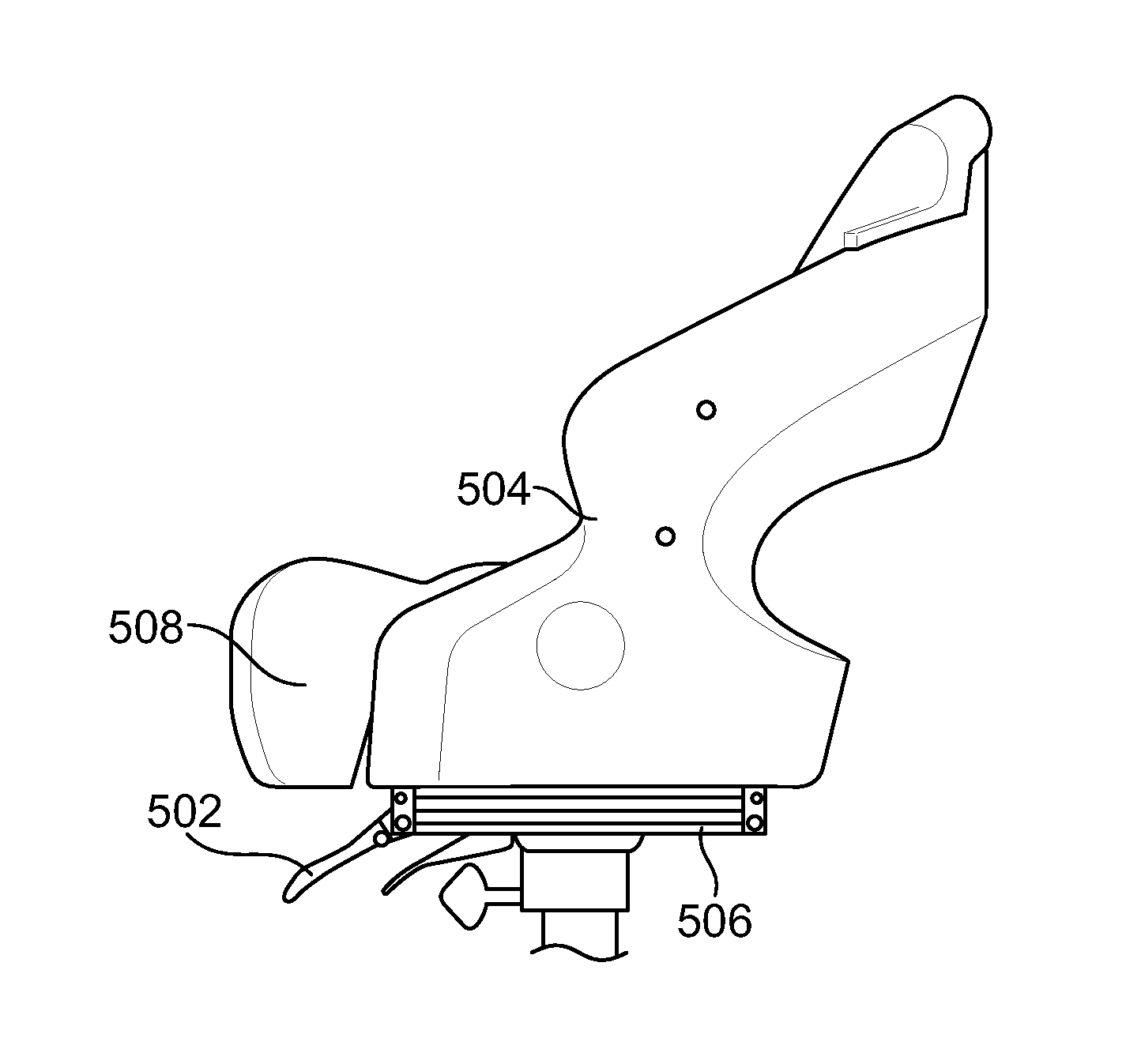

Adjustable boat seat handles are described. A described apparatus comprises an elongated lever having a first end and a second end opposite the first end, the first end having a hand grip and the second end having a first flange extending away from the first end, the first flange having a first bore extending through the first flange, a rocker arm having a third end and a fourth end opposite the third end, the third end having a second flange extending away from the third end, the second flange having a second bore extending through the second flange and a pin extending through the first and second bores rotatably coupling the first and second flanges, wherein rotation of the lever in a first direction relative to the rocker arm causes the lever to rotate the rocker arm to enable adjustment of a seat and rotation of the lever in a second direction opposite the first direction causes the lever to fold relative to the rocker arm to be in a stowed position under the seat.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- A47C Class
- 911 Applications Filed
- 788 Patents Issued To-Date
- 86.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A47C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 3, 2027 |
