Rotary tablet press and method for pressing tablets in a rotary tablet press
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 3, 2016
Grant Date -
Jul 28, 2011
app pub date -
Jan 25, 2011
filing date -
Jan 27, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

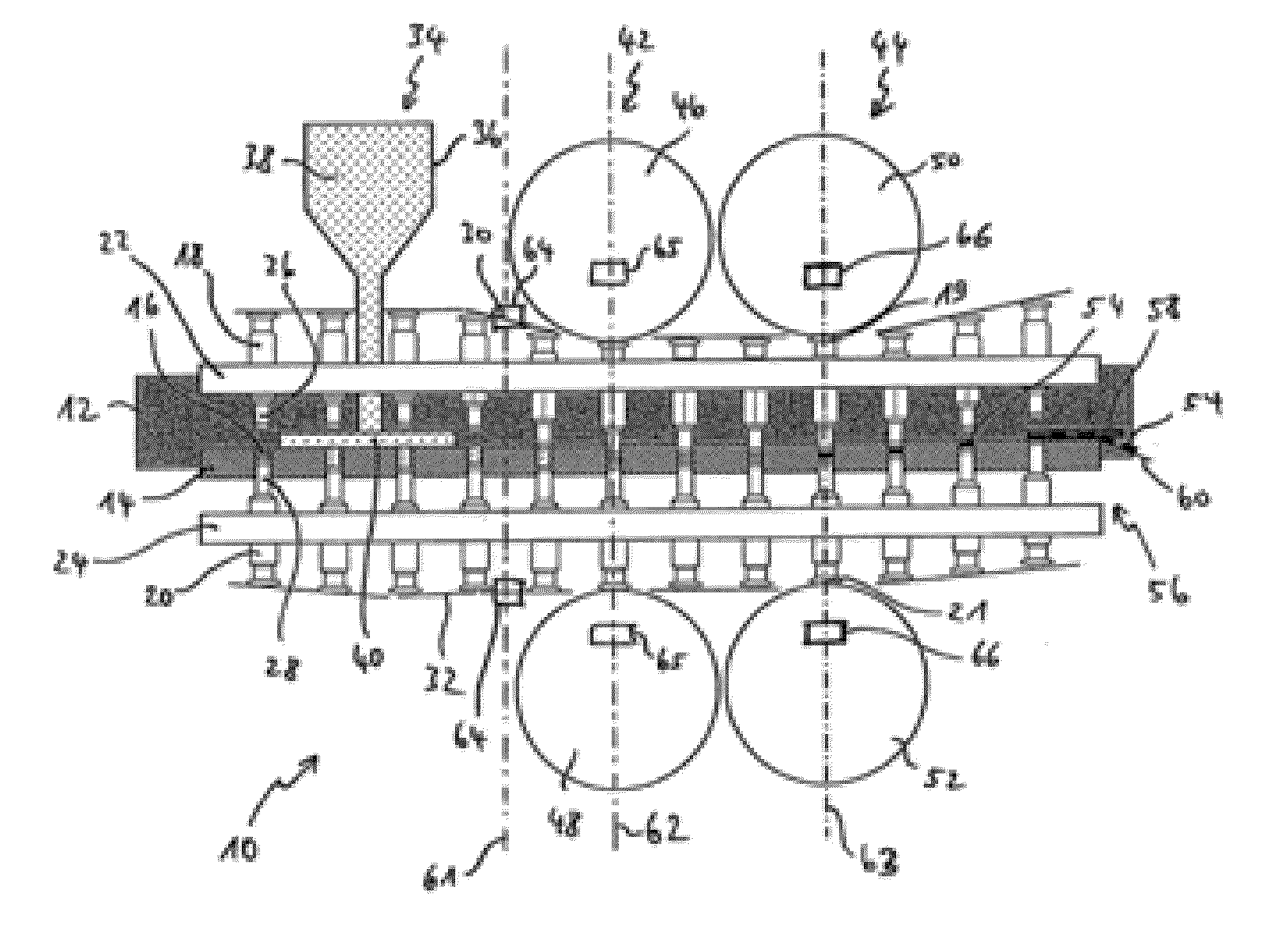

The invention relates to a rotary tablet press comprising: a rotatingly drivable rotor, having a die plate comprising die holes and assigned to the die holes upper and lower punches, rotating synchronously with the die plate, whose axial movement is controlled by upper and lower control cams, having at least one filling station comprising at least one filling device for filling the die holes with material to be pressed, having at least one compression station disposed downstream of the filling station in the rotational direction of the rotor, comprising at least one pressing device which presses the upper and/or lower punches into the die holes when passing through the compression station in order to press the filled material in the die holes, and having at least one ejector station, disposed downstream of the compression station in the rotational direction of the rotor, comprising an ejector device for ejecting the pressed tablets in the die holes, characterized in that at least one vibration generator is provided in the circumferential direction of the upper and lower punches between the filling station and the ejector station that at least temporarily vibrates the upper and/or lower punches at least at the compression station and/or at the filling station and/or at least at an upper control cam and/or at least at a lower control cam.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B06B Class
- 107 Applications Filed
- 78 Patents Issued To-Date
- 72.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B06B Class
- 27.59 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 3, 2027 |
