Methods and apparatus to determine a base station location
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 26, 2016
Grant Date -
Nov 26, 2015
app pub date -
Aug 3, 2015
filing date -
Aug 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

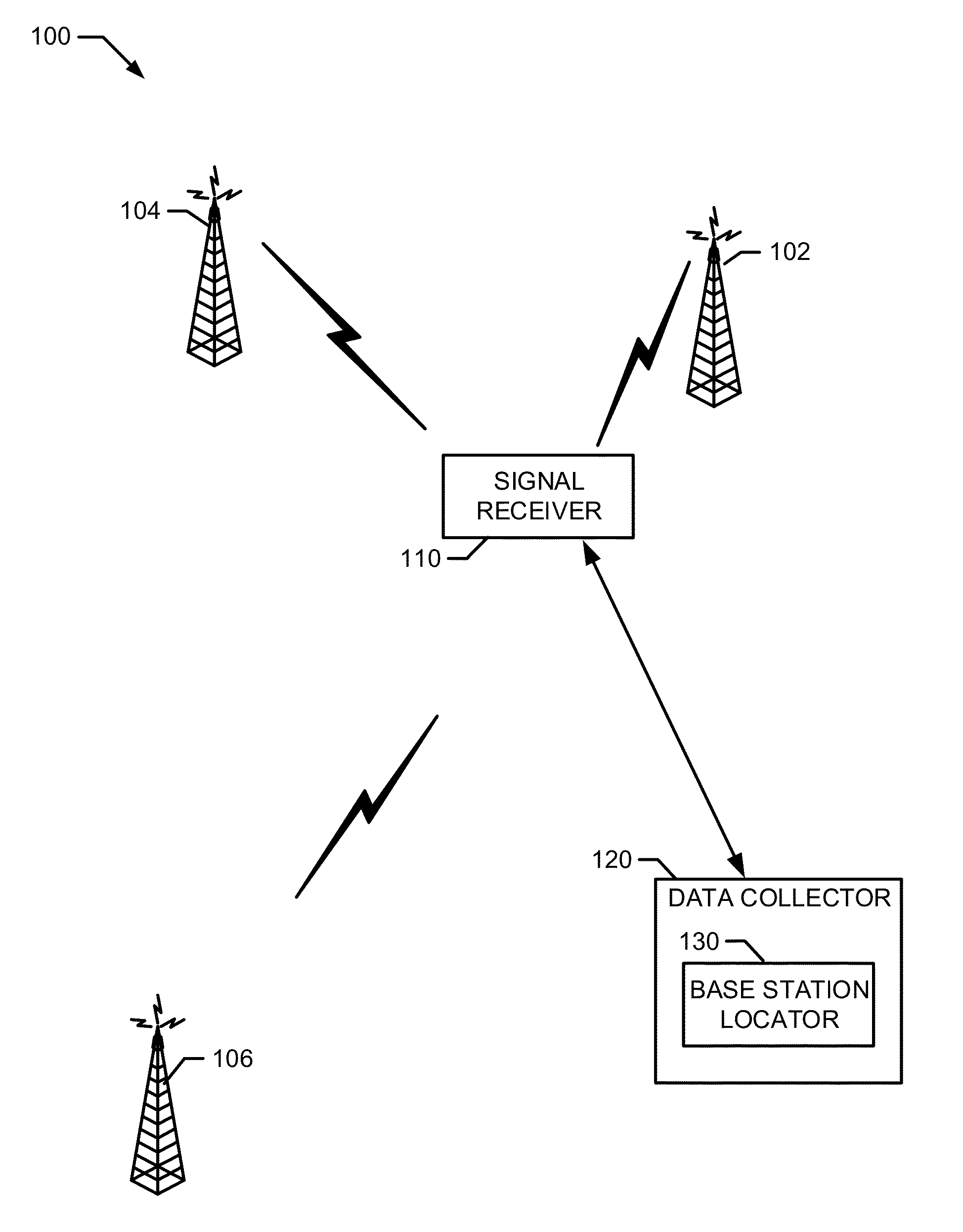

Example methods and apparatus to determine a base station location are disclosed herein and include determining which signals are transmitted from a first base station by identifying a first set of signals having a first signal identifier, identifying a first signal in the first set of signals having a first relative highest signal quality value, identifying a first location associated with the first signal, identifying a second set of signals having a second signal identifier, identifying a second signal in the second set of signals having a second relative highest signal quality value, identifying a second location associated with the second signal, determining a first distance between the first location and the second location, comparing the first distance to a first threshold distance, associating the first signal and the second signal with the first base station when the first distance satisfies the first threshold distance, and estimating a location of the first base station based on at least one of the first location or the second location.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H04B Class
- 10.71 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 26, 2027 |
